CONCRETE PROPERTIES EVALUATED BY REPLACING CEMENT WITH ALCCOFINEBLN Sai Srinath 1, Chandan Kumar
Patnaikuni 2 1 Ph. D Research Scholar, Civil Engineering Department, GITAM Institute of Technology, Visakhapatnam 530045, Andhra Pradesh, India2 Assistant Professor, Civil Engineering Department, GITAM Institute of Technology, Visakhapatnam 530045, Andhra Pradesh, India |
|
||
|
|||
Received 15 December 2022 Accepted 1 January 2022 Published 18 February 2022 Corresponding Author BLN
Sai Srinath, srinath296@gmail.com DOI 10.29121/IJOEST.v6.i1.2022.279 Funding:
This
research received no specific grant from any funding agency in the public, commercial,
or not-for-profit sectors. Copyright:
© 2022
The Author(s). This is an open access article distributed under the terms of
the Creative Commons Attribution License, which permits unrestricted use, distribution,
and reproduction in any medium, provided the original author and source are
credited. |
ABSTRACT |
|
|
Nowadays, many research works are being conducted
throughout the world to develop cementitious materials that can replace
cement. As a replacement for cement in concrete, fly ash, silica fume, GGBS,
Metakaolin, Micro materials, Quartz powder, etc. are tried out in that order.
This experiment tries out a new ultrafine material called Alccofine for a
partial replacement. This concrete grade, M40, was developed for testing the
cementing efficiency of Alccofine with a variety of percentages of
replacement of cement with Alccofine, such as 5%, 10%, 15%, and 20%. A design
mix has been developed for M40 grade and cubes have been cast with varying
percentages of alccofine, as described above. A discussion of the results has
been provided. Compared to other mix percentages, 15% of alccofine
replacement with cement produces good strength. The SEM images shows that
Alccofine is found to have good cementing efficiency in earlier ages of
concrete. |
|
||
Keywords: Cementing Efficiency, Alccofine, SCM 1. INTRODUCTION The whole world is
moving towards globalization in infrastructure development. India is an
important part of the world where globalization in every field plays a very
important role. The infrastructure development of any country depends upon
concrete. Concrete is one of the most commonly used construction materials in
the construction industry and it is a basic civil engineering construction
material used all over the world because of its structural stability,
strength and high molding ability. The workability should be good for getting
the desired shape on the site. As compared to steel/wooden structures, the
concrete structure has a low maintenance cost. Due to the increase in the
population, there is a change in living standards. The demand for
infrastructure development, therefore concrete becomes a major part of the
construction. Conventional concrete does not meet the present day’s demands
of construction hence developing new construction materials [i.e., improved
properties]. For knowing the concrete quality, the compressive strength of
concrete is required for 28 days of proper curing. The concrete structure may
fail before their service period because of very lack of durability of the
concrete. The low w/c ratio reduces the permeability of hardened concrete.
The addition of cementitious materials to the concrete as replaced partially
also improves the durability of the concrete. |
|
||
The Alccofine 1203 product is a specially processed slag containing a high percentage of glass, resulting from a controlled granulation process. An enhanced hydration process is a result of both the latent hydraulic property and pozzolanic reactivity. With the addition of Alccofine, the paste component will pack more densely. Therefore, concrete at any age will be stronger and more durable due to a reduction in water demand.
|

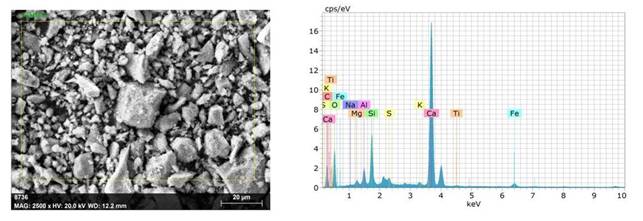

Figure 1 SEM
image and chemical composition of Cement |
|
Figure 2 SEM
image and chemical composition of Alccofine |
2. Experimental Investigation
Mix design was performed in accordance with IS 10262:
2019 code for trail mix for M40 grade. Alccofine
was used as a substitute for cement at percentages of 0, 5%, 10%, 15%, and 20%
for concrete of grade M40. In addition to cement and fine aggregate, coarse
aggregate and water were also used in the mix design.
Moreover, Alccofine 1203 increases concrete's strength, thereby
providing the concrete with more workability and other advantages.
2.1. Cement
used for all specimens was ordinary Portland cement of 53 grade confirming to IS:
12269:2013 was used. The cement used for all specimens was ordinary Portland
cement grade 53 that complied with IS: 12269:2013.
2.2. Alccofine 1203
In comparison to its chemical composition and physical
characteristics listed below, ALCCOFINE 1203 has a unique chemical composition
primarily composed of CaO 30-34% and SiO2 30-36%. In terms of particle size distribution, the product
is physically unique.
|

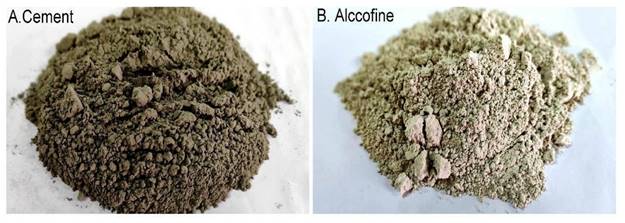

Figure 3 Cement
and Alccofine |
Table 1 Elemental compositions
of cement and Alccofine by EDAX |
||||
Compounds and elements |
Compound formula |
Cement (%) |
Alccofine (%) |
Composition of cement as per IS 12269-2013 (%) |
Calcium |
CaO |
72.82 |
39.17 |
60-67 |
Silicon |
SiO2 |
14.64 |
29.22 |
17-25 |
Iron |
FeO |
3.62 |
- |
0.5-6 |
Aluminium |
Al2O3 |
4.78 |
20.19 |
03-Aug |
Sulphur |
SO3 |
2.32 |
- |
01-Mar |
Magnesium |
MgO |
1.14 |
6.62 |
0.1-4 |
Potassium |
K2O |
0.4 |
0.25 |
0.1-1 |
Sodium |
Na2O |
0.22 |
0.06 |
0.1-1 |
Titanium |
TiO2 |
0.07 |
0.24 |
- |
2.3. Fine Aggregate
The fine aggregate is as per
the IS 383-1970 code conforming that is coming under ZONE II. The fine
aggregate is in accordance with the IS 383-1970 code, which falls under Zone
II.
2.4. Coarse Aggregate
The coarse aggregate
conforming to IS 383-1970 was used. In this
project, coarse aggregates that conform to IS: 383-1970 were used. Aggregates
ranging in size from 12 to 20 mm were used.
|

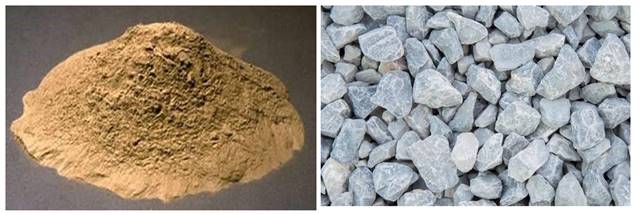

Figure 4 Fine and coarse aggregates used
in experimentation |
Table 2 Mix proportions of M40 grade concrete /cum |
|||||
0% |
5% |
10% |
15% |
20% |
|
Cement |
367 |
399 |
378 |
357 |
336 |
AL |
0 |
21 |
42 |
63 |
84 |
Water |
148 |
152 |
152 |
152 |
152 |
F.A. |
767 |
646.6 |
646.6 |
616 |
646.6 |
C.A. |
1140 |
1322 |
1322 |
1308 |
1322 |
SP |
3.7 |
4.2 |
34.2 |
4.2 |
3.4.2 |
2.5. Water
Potable water was used to
mix concrete and cure specimens.
2.6. Concrete
The cement used is Portland Cement 53 grade. Tests are conducted on cement based on the
procedures prescribed in IS: 1489. Maximum
size of 20mm for aggregate and a size range of 0 to 4.75mm for fine aggregate
is required. In order for the concrete to
stabilize its own properties, such as compressive strength, it needs to be
allowed to cure in real environmental conditions for about 28 days. A concrete cube (100mm x 100mm x 100mm) is loaded
under axial compression to test its strength.
|

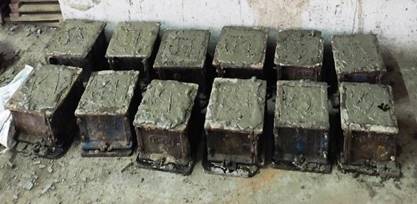

Figure 5 Casting of concrete cubes |
|

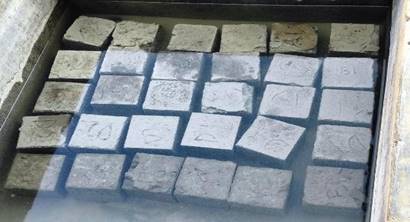

Figure 6 Cubes allowed for curing in
curing tanks |
2.7. Compressive Strength
A material's capacity to withstand pressure that tends
to reduce its size is its compressive strength
|

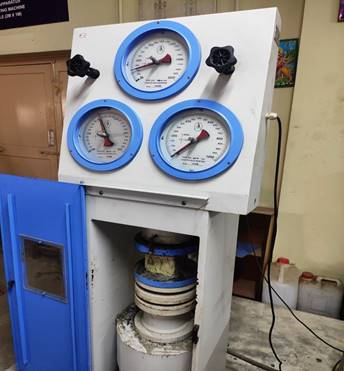

Figure 7 Compression testing machine (C.T.M.) |
3.
Results and discussion
In this study, the compressive strength of concrete mixed at various proportions will be determined. Graphs and bar charts are used to present the test results. Figure 5 shows various mix proportions of concrete and the results obtained in terms of compressive strength.
|
Figure 8 Compressive Strength for M40
Grade Mix |
Figure 7 and Figure 8 illustrate the compressive strength values of Alccofine dosages in concrete after 7 and 28 days of curing. With increasing curing durations and extended hydration periods, the compressive strength improves with age. In the initial mixes containing only Alccofine, the maximum strength was observed for 15%.
|

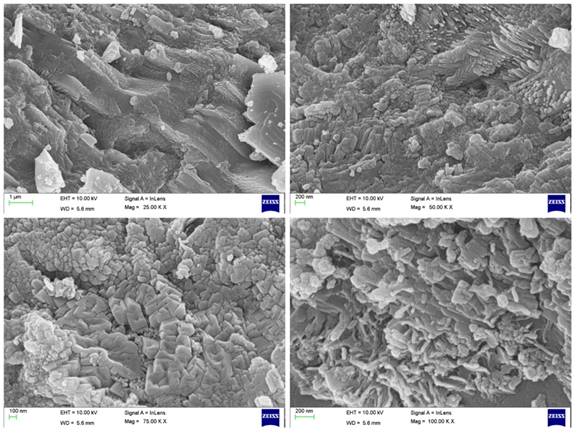

Figure 9 Microscopic images of M40 grade
concrete at 15% optimum dosage of Alccofine |
For M40 grade concrete with
15%, Alccofine replacement, it exhibited a
maximum compressive strength of 40.62mpa and 57.65mpa after 7 days and 28 days
respectively.
For this mix, from 7 days to 28 days, there was an increase of 29.54%. At 7 days and 28 days, the compressive strength gain compared to the conventional mix is 17.06% and 16.23% respectively. At 7 days, the compressive strength of 10% mix and 20% mix is lower than that of 15% mix, by 10.08% and 6.34% respectively. At 28 days, the compressive strength of 10% mix and 20% mix is lower than that of 15% mix, by 7.16% and 1.68% respectively. Therefore, it is observed that the 15% mix shows higher strength than all other mixes.
4. Conclusions
According to the experimental results, the following conclusions can be drawn:
·
Compared to other mixes (0%, 5%, 10% and 20%),
15% replacement mix gives better compressive strength.
Concrete's compressive strength increases when alccofine is added.
·
Increasing the level of alccofine above 15% in a
mix will only act as a filler material, while its strength will gradually decrease
over time.
·
The test results indicate that weight loss
decreases as alccofine addition increases. However,
there is a limitation that strength will decrease with increased alccofine
concentration.
·
We conclude that alccofine 1203 was a good
cementitious material replacement to the extent of 15%.
Furthermore, its durability is also excellent.
·
Furthermore, further research is needed to
standardize the use of alccofine in concrete.
· The concrete shows denser and homogeneous microstructure for concrete containing 15% alccofine. Due to presence of silica and calcium in Alccofine, there was extra formation of CSH gel which is clearly shown in the microstructure.
