MICRO POWER GENERATION USING PIEZOELECTRIC TRANSDUCER IN FOOTWEAR
Gokulraj K. 1, Prakash raj S. 2, Ragunanthan G. 2, Keerthivasan D. 2, Abikumar M. 2
1 Assistant
Professor, Department of electrical and electronics engineering, E.G.S. Pillay
Engineering College, Nagapattinam, India
2 Student,
Department of electrical and electronics engineering, E.G.S. Pillay Engineering
College, Nagapattinam, India
|
ABSTRACT |
||
The aim of
this paper is to built a
smart shoe which is equipped with power generating capability while wearing
this footwear during walking and running. Because, low power consumption electronic devices have
been increased rapidly in our day to day life. So, We
try to develop a Piezoelectric transducer based power generation through
footwear. That can produce pressure during walking or running and it convert mechanical energy into electrical energy to charge
the electronic devices. Bridge rectifier was used to convert the AC voltage
output from the piezoelectric transducers into DC voltage. Then it will be boost up by the dc-dc Boost converter to charge the
electronic devices through Li-ion battery by using a switch. Here, a round
piezoelectric disc with diameter of 3.5cm was used. Finally, the produced
mean output voltage of standard 12V to charge the electronic devices such as
mobile, smartwatch etc., It was a renewable source of energy
and it was also a green energy. |
|||
Received 04 April 2023 Accepted 05 May 2023 Published 19 May 2023 Corresponding Author Gokulraj
K., gokulraj@egspec.org DOI 10.29121/granthaalayah.v11.i4.2023.5154 Funding: This research
received no specific grant from any funding agency in the public, commercial,
or not-for-profit sectors. Copyright: © 2023 The
Author(s). This work is licensed under a Creative Commons
Attribution 4.0 International License. With the
license CC-BY, authors retain the copyright, allowing anyone to download,
reuse, re-print, modify, distribute, and/or copy their contribution. The work
must be properly attributed to its author. |
|||
Keywords: Piezoelectric, Dc-Dc Boost Converter,
Renewable Source |
1. INTRODUCTION
In today’s world, power demand is becoming a serious issue with the increasing of power consumption from the constantly growing population and the rapid growth of the newer technologies such as the usage of electric train, electric vehicles like Electric Scooters, Cars etc., These are become our basic needs in our life. So, we try to fulfill our basic needs of electricity through power generation by own. Piezoelectric uses crystalline structures like Quartz, Topaz, Berlinite (AlPO4), Lead Titanate (PbTiO3) etc in it. It is made up of Lead Zirconate Titanate (PZT). They can generate electric charge when the plate of its crystal disc is compressed or any external force is applied on them. There are two types of structures available as piezoelectric generators one is round and square type of piezoelectric transducers.
2. LITERATURE REVIEW
The study conducted by Patel, (2010), has discussed the capacity of piezoelectric in electrical energy harvesting. He defined a previous comparative study by Starner, (1996) showed 5 Watt of electrical power generation by 52 kg person at a brisk walking pace using a PVDF (polyvinylidene fluoride) power harvesting device integrated in a footwear. Asano et al. (2020)
In June 2021, a topic of ‘Onmarche Piezoelectric Tiles’ was uploaded in ResearchGate by the authors from Bahcesehir University Istanbul, Turkey. In this research, they installed a piezoelectric transducer on the floor tiles to generate electricity. Chaudhary & Azad (2020)
In Dec 2022, a topic of ‘Power Generation Using Piezoelectric
Transducers’ was published in IEEE by the authors from Amrita School of
Engineering, Bengaluru, India. Yin et al. (2021)
3. OBJECTIVE
The Core objective of this paper is to design a shoe to
charge our portable electronic devices through energy produced by own during
walking or running. In Army, uninterruptedly powering up a soldier’s wearable
electronic gadgets such as communication devices used in military operations and also be used to tracking the soldier’s location in
remote areas. In Nature, to generate energy without damaging the environment
and generate power as a renewable energy like solar energy, wind energy etc. Cho et al. (2016), Uchino & Ishii (2010)
4. FUNCTIONING METHODOLOGY
Figure 1
Figure 1 Functioning of Piezo Crystal |
The functioning methodology of a Piezoelectric Transducer is
based on the principle that when a pressure is applied on a piezoelectric
crystal as a mechanical force, a voltage is produced across its faces due to
the movement of electron atoms on the crystal disc is shown in the Figure 1. Thus,
mechanical phenomena was converted into electrical energy
as an AC output. Gatto & Frontoni
(2014)
5. BLOCK DIAGRAM
Figure 2
Figure 2 Block Diagram |
In that Figure 2 describes the
diagrammatic representation of our proposed work. It consists of the
piezoelectric transducer, bridge rectifier, DC- DC boost converter then Li-ion
battery for energy storage. And it has the push button switch, voltage
regulator and the USB port for charging the electronic gadgets. Hong et al. (2013)
6. COMPONENTS
REQUIRED
Figure 3
Figure 3 Components Image |
The Figure 3 shows the
picture view of the components used for our work.
Piezoelectric Disc: Round shaped 3.5cm diameter sized
four piezoelectric transducer discs were used on each shoe.
Diode: Here, four 1N4001 diodes are used to built a bridge rectifier circuit to convert AC to DC voltage
on each shoe.
DC-DC Boost converter: One DC-DC Boost converter with the
adjustable output voltage of the 5 to 35 v which is fitted on the bottom of
each shoe.
Battery: 3.7v, 3000mAh battery was connected in the
circuit to store the power on each shoe.
Voltage Regulator: LM7812 model voltage regulator was
used to produce the constant 12v output to charge the load.
Push Button: Mini clicky On/Off push
button switch was used between the battery and the voltage regulator.
USB Port: Female type USB Port with the specification of
USB 2.0 which is used to connect the load as electronic devices through it.
7. CIRCUIT DIAGRAM
Figure 4
Figure 4 Circuit Diagram |
The above Figure 4 is the circuit
diagram of our proposed work. It consists of the parallel connected four piezo
crystals P1, P2, P3 and P4. The AC output from the piezo was connected to the
bridge rectifier circuit consists of four diodes D1, D2, D3 and D4 are used to
construct this bridge rectifier. After crossing the rectifier, the power will
be converted into DC and then the output from the bridge rectifier was
connected to the DC- DC Boost converter to boost up the power. Then the boost
up power was given to the energy storage device such as Li-ion battery.
Finally, load was connected by using USB port through the voltage regulator
with the control of push button switch. Jeong et al. (2019),
Kim et al. (2021)
8. Testing Circuit
Figure 5

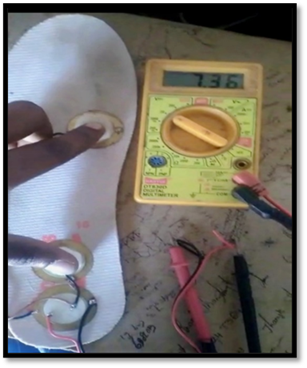

Figure 5 Testing Circuit |
The Figure 5 shows the piezoelectric transducer generates the AC voltage which was varying depends on the pressure given on the piezoelectric transducer. Thus, piezoelectric transducers are arranged in parallel connection to each other because we need more current then voltage. Here, the testing circuit generates the output of more than 7.36V as an AC output before the usage of the dc-dc boost converter circuit. Moro & Benasciutti (2010), Saha et al. (2014)
9. RESULT
Figure
6
Figure 6 Piezo Footwear |
The outcome of our
proposed work was to make a successfully completed portable micro energy
generated shoe using piezoelectric transducers installed on it. The product
style is made simple, robust, and compact design for using as a normal footwear
feeling. Mechanism management is easy because of human motion due to walking or
running to made pressure as mechanical force applied to it, and use of USB port
to charge the devices with 12V constant power output by this technique on each
shoe. And it also charging the Li-ion battery for future use, and it is very
helpful for the long-term utilization of the power from the battery. The
result of piezo based footwear which is shown in the Figure 6. Shenck et al. (2001).
10. CONCLUSION
The idea of energy harvesting from piezoelectric disc is a good source of clean and green renewable energy. In this work, we have illustrated the design of piezoelectric based energy harvesting from the human walk and then use it to power up wearable electronic devices. We generated electrical power as non-conventional method of energy generation by simply walking or running with footwear and charge the mobile through USB port with the output of 12 v DC power and also store the power on battery inside the shoe. Here, we achieve that the self-generation of power without the usage of any type of external source required. However, this all depended on how much pressure that was applied onto the piezoelectric elements through walking.
CONFLICT OF INTERESTS
None.
ACKNOWLEDGMENTS
None.
REFERENCES
Asano, S., Nishimura, S., Ikeda, Y., Nishimura, S., Ikeda, Y., Morita, T., & Hosaka, H. (2020). Energy Harvester for Safety Shoes Using Parallel Piezoelectric Links. Sensors And Actuators. Part A, 309, 112000. https://doi.org/10.1016/j.sna.2020.112000.
Chaudhary, P., & Azad, P. (2020). Energy Harvesting Using Shoe Embedded with Piezoelectric Material. Journal of Electronic Materials, 49(11), 6455–6464. https://doi.org/10.1007/s11664-020-08401-6.
Cho, J. Y., Jeong, S., Jabbar, H., Song, Y., Ahn, J. H., Kim, J. H., Jung, H. J., Yoo, H. H., & Sung, T. H. (2016). Piezoelectric Energy Harvesting System with Magnetic Pendulum Movement for Self-Powered Safety Sensor of Trains. Sensors and Actuators. Part A, 250, 210–218. https://doi.org/10.1016/j.sna.2016.09.034.
Gatto, A., & Frontoni, E. (2014). Energy Harvesting System for Smart Shoes. In Proceedings of the 2014 Ieee/Asme 10th International Conference on Mechatronic and Embedded Systems and Applications (MESA), Senigallia, Italy, 1–6. https://doi.org/10.1109/MESA.2014.6935616.
Hong, S. K., Woo, M. S., Song, D., Yang, C. H., Baek, K. H., & Sung, T. H. (2013). Restoration and Reinforcement Method for Damaged Piezoelectric Materials. Ferroelectrics, 449(1), 52–61. https://doi.org/10.1080/00150193.2013.822769.
Jeong, S. Y., Hwang, W. S., Cho, J. Y., Jeong, J. C., Ahn, J. H., Kim, K. B., Hong, S. D., Song, G. J., Jeon, D. H., & Sung, T. H. (2019). Piezoelectric Device Operating as Sensor and Harvester to Drive Switching Circuit in LED Shoes. Energy, 177, 87–93. https://doi.org/10.1016/j.energy.2019.04.061.
Kim, J. H., Cho, J. Y., Jhun, J. P., Song, G. J., Eom, J. H., Jeong, S., Hwang, W., Woo, M. S., & Sung, T. H. (2021). Development of a Hybrid Type Smart Pen Piezoelectric Energy Harvester for an IoT Platform. Energy, 222, 119845. https://doi.org/10.1016/j.energy.2021.119845.
Moro, L., & Benasciutti, D. (2010). Harvested Power and Sensitivity Analysis of Vibrating Shoe-Mounted Piezoelectric Cantilevers. Smart Materials and Structures, 19(11), 115011. https://doi.org/10.1088/0964-1726/19/11/115011.
Saha, P., Goswami, S., Chakrabarty, S., & Sarkar, S. (2014). Simulation and Model Verification of Shoe Embedded Piezoelectric Energy Harvester. In Proceedings of the 2014 6th IEEE Power India International Conference (PIICON), Delhi, India, 1–6. https://doi.org/10.1109/POWERI.2014.7117702.
Shenck, N. S., Paradiso, J., & Energy, A. (2001). Scavenging with Shoe -Mounted Piezoelectrics Electricity from the Forces Exerted on a Shoe During Walking. Media, 21, 30–42.
Uchino, K., & Ishii, T. (2010). Energy Flow Analysis in Piezoelectric Energy Harvesting Systems. Ferroelectrics, 400(1), 305–320. https://doi.org/10.1080/00150193.2010.505852.
Yin, Z., Gao, S., Jin, L., Guo, S., Wu, Q., & Li, Z. (2021). A Shoe-Mounted Frequency Up-Converted Piezoelectric Energy Harvester. Sensors and Actuators. Part A, 318, 112530. https://doi.org/10.1016/j.sna.2020.112530.
