The National and International Water Policies with focus on the Drainage Water Reuse Practices and the Mega Water Projects
1 Professor,
Water and Environmental Engineering Department, Faculty of Engineering,
Heliopolis University, 3 Cairo-Belbies Desert Road,
P.O. Box 3020 El Salam, 11785 Cairo, Egypt
|
ABSTRACT |
||
The
overgrowing water scarcity in Egypt should be the motive to develop
alternative water resources. The article focuses on a technical review of the
state-of-the-art water policies for the reuse of agricultural drainage water
in irrigation worldwide and in Egypt, due to the increasing pace of
implementing mega water projects. Satisfying future water demands in Egypt
depends on better utilization and efficient use of the available water
resources. Optimal water management, particularly the nonconventional water
resources, is an essential prerequisite for the sustainable development of
Egypt. The hypotheses examined are that the available quantities of
agricultural drainage water in Egypt shall decrease and the quality of that
drainage water shall improve. In the meantime, it is expected that soil and
water salinity rates shall rise as a result of the
multiple reuses of the drainage water and also due to the expansion of modern
irrigation practice not only in the newly reclaimed desert lands but also in
some old heavy soil lands. In addition, a technical review of the impacts of
those changes above on the phenomenon of seawater intrusion in the northern
parts of the Nile Delta is presented. It is concluded that the impact of the
national water-saving, irrigation improvement projects, and expansion in land
reclamation in the desert are inversely proportional to the resulting amount
of agricultural drainage water in Egypt. That reduction is interpreted as
about 20%, which needs further extensive applied research to verify. That
amount might be compensated with the safe reuse of treated wastewater, with
the due health safeguards. Accordingly, as stated in the NWRP2037, caution
should be taken while projecting the future available agricultural drainage
water for reuse in each geographic zone in Egypt. |
|||
Received 08 August 2022 Accepted 09 September 2022 Published 24 September 2022 Corresponding Author Wael M. Khairy, wael.khairy@hu.edu.eg DOI10.29121/granthaalayah.v10.i9.2022.4754 Funding: The author declares
that he has neither funding support from any entity that used in, conducting
this paper nor competing financial interests or personal relationships that
could have appeared to influence the work reported in this paper. I confirm
data and reports used in this paper’s availability upon request. I confirm
that neither this Review Article nor any parts of its content are currently
under consideration or published in another journal. All authors (only myself) have approved the manuscript and agree with its
submission to Springer Environmental Monitoring and Assessment Journal. Copyright: © 2022 The
Author(s). This work is licensed under a Creative Commons
Attribution 4.0 International License. With the
license CC-BY, authors retain the copyright, allowing anyone to download,
reuse, re-print, modify, distribute, and/or copy their contribution. The work
must be properly attributed to its author. |
|||
Keywords: Water Reuse, Water Resources Planning,
State-of-the-Art Water Reuse Experience Worldwide, Trade-off Options,
Environmental Sustainability |
1. INTRODUCTION
In a world where
demands for freshwater are continuously growing, and where limited water
resources are increasingly stressed by over-abstraction, pollution, and climate
change, neglecting the opportunities arising from improved the management of
all types of water is nothing less than unthinkable in the context of a
circular economy UNWWAP (2017). As stated by the High-Level Panel on Water,
36% of the world’s population already live in water-scarce regions, and by 2050
more than half the world’s population will be at risk of water stress HLPW (2018). Competing demands for water are
adding pressure to the allocation of freshwater resources. Governments around
the world face an array of water policy options for managing structural water
scarcity, droughts, and floods; improving water quality; and protecting
ecosystems and their services. Careful planning promotes long-term water
security and resilience to climatic and non-climatic uncertainties WRDM (2018). Water, importantly, connects to wider policy
goals of mitigating poverty and ensuring social equity, public health, and
macroeconomic performance, among others Rodriguez et al. (2020).
It is evident that integrated river basin planning approaches yield more
sustainable and resilient systems. By planning and analysing water quality and
quantity at the basin level, integrated solutions that are more socially, economically,
and environmentally sustainable are possible Larsen (2019). Countries
need to develop the right water policy, institutional, regulatory frameworks to
promote that paradigm shift Rodriguez et al. (2020).
A projected
population for 2030 has been estimated for each governorate based on an annual
growth rate of 2.2 %. The total population of Egypt in 2030 is expected to
reach 112.3 million citizens. Water reuse is central to cope-up-with challenges
in water scarcity and population pressured regions. The latest population
census in Egypt shows that there are more people now living along the narrow
strip of land by the Nile than ever before, about 102 million CAPMAS (2021). The country’s rapidly growing population, its
limited water resources, and its dependence on food imports all reinforce the
importance of an integral water and agricultural policy. Water plays
innumerable roles throughout the society, economy, and environment. The
importance of water cannot be overstated since it is a pillar of development,
provides essential services for human health and safety, and supports life on
this planet. With the recent series of economic reforms in Egypt that saw
changes in the Egyptian pound’s equivalence to other currencies, the
application of a value-added tax, and decreases in energy subsidies, Egypt has
a unique opportunity to focus on sector-level policies, including those within
water and agriculture Kassim et al. (2018). Water reuse is a key strategy for water
security. Water reuse is necessary to meet the challenge of increasing water
demands at a time. As such, the UNESCO (2020)
stated that water reuse is also essential to achieve the Sustainable
Development Goals (SDGs).
Decision-making for
water reuse must take into account many variables. For
instance, to understand water availability, it is not sufficient to only know
the volume of water available. A case study in Brazil highlights the importance
of integrating quantity, quality and purpose in decision making to assess water
availability and on water reuse investments UNESCO (2020).
Surface-water resources originating from a single external water source being
the Nile River, which provides an average annual fixed flow of 55.5 BCM/year
since 1959, are now fully exploited. Also, groundwater sources have been
brought into full production. Egypt is facing increasing water needs, demanded
by rapidly growing population, increased urbanization, and an agricultural
policy which emphasizes expanded production in order to
feed the growing population. The per capita water share is currently less than
585 m3/year, much less that the international water scarcity limit
of 1000 m3/year. As population and water demands increases, more
freshwater may need to be reallocated to domestic uses, especially at inland
cities and villages, that are far from coastal areas, where desalination of
seawater could be a resort. This situation puts the existing agriculture sector
in a vulnerable situation that is not being able to satisfy its current and
future water requirements.
Coupled by the
challenges and timeliness associated with developing additional Nile waters from
upstream reaches. This risks any future plans for
agriculture expansion of not having the necessary sustainable water resource AbuZeid (2017a). As water supply to domestic uses will
continue to grow due to the increase in population, more wastewaters will be
generated at about 80% of domestic water supply. Treated wastewater could lead
to useful reuse in agriculture. The advantage is not only conserving water but
also avoiding the ecological harms associated with the discharge of untreated
wastewater into rivers, drains and lakes. Improved planning and management
procedures are key measures prescribed to the optimum use of available water UNWWAP (2017).
Innovations in dealing with the
water-energy-food nexus (Figure 1) in arid zones like Egypt is
increasing, especially when it comes to desalination, wastewater treatment
technologies, and groundwater pumping Maftouh et al. (2022).
Egypt has implemented a combined policy of improving surface irrigation in the
old lands (within the Nile Valley and the Nile Delta), while reuse agriculture
drainage generated from improved surface irrigation, as well as enforcing
modern irrigation such as drip and sprinkler irrigation in the new desert
reclamation lands. This demonstrates the WEF nexus perspective that,
transforming surface irrigation to pressurized drip irrigation is not always
the best solution. It is important to look at the overall water use efficiency
than just focusing on the on-farm irrigation efficiency AbuZeid (2017b).
Figure
1
|

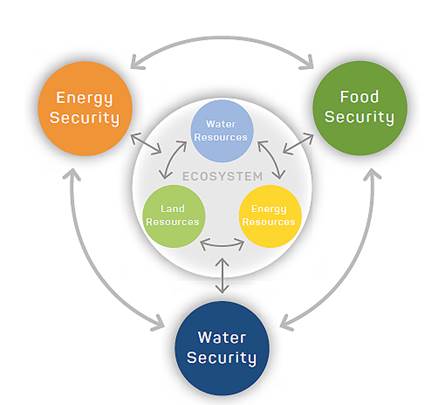

Figure 1 The Water-Energy-Food
Nexus to Achieve Better Livelihood and Sustainable Development, AbuZeid (2017b) |
In this review
article; the international and national state-of-the-art water experiences on
policies implementation regarding the reuse of agricultural drainage water for
irrigation purposes, and how this is being affected by the mega water projects
are reviewed and discussed, referring to the Egyptian National Water Resources
Plan up to the year 2037, NWRP2037, . , in light of the increasing pace of
implementing mega water projects such as the on-farm water management,
installing modern irrigation systems, water saving, canal lining, and
wastewater treatment projects. The motive is the envisaged uncertainty around
whether Egypt shall have enough agricultural drainage water quantities -as a
key nonconventional water resource- to contribute to narrowing the water
supply-demand gap or not.
2. Outline
This review article
is structured in five sections (Introduction, Review of methodological
approaches on the reuse of drainage water policies for irrigation purposes,
Discussion on the availability of agricultural drainage water for reuse in
Egypt in the future, Conclusion and recommendations, and references). The main
section shades the light on the state-of-the-art the methodological approaches
used in the world that adopt the reuse of drainage water policies and its
impacts. It overviews also how the nonconventional water resource is
anticipated to be affected by the increasing pace of implementing the mega
water projects in Egypt, such as the national irrigation improvement projects,
including waster saving, modern irrigation, canal lining, and on-farm
management, also the national sewerage network installation in villages, also
the expansion in desert land reclamation, and finally the construction of mega
wastewater treatment (WWT) plants that divert the treated wastewater to
irrigate newly desert reclaimed lands. All those national projects contribute
positively to the national food security but most likely reduce the quantity of
the available agricultural drainage water in the Nile Delta.
3. Review of methodological approaches
on reuse of drainage water policies
3.1. Review of the international reuse of
drainage water policies
There are at least 60 countries around the world practicing various types of water reuse. It is difficult to compare the intensity of reuse in countries with different population and area size. With respect to total annual volume, China, Mexico, and the United States (mainly California, Texas, Arizona, and Florida) are the countries with the largest quantities of water reused. Pakistan, India, Brazil, Egypt, Jordan, and some Asian water basins come relatively next. In China and Mexico, reused water is mostly poorly treated wastewater. When considering the intensity of reuse per inhabitant, Qatar, Israel, and Kuwait are the countries first ranked, while if considering the percentage of reuse related to the total volume of fresh water used, Kuwait, Israel and Singapore become the first ones. When the technological achievements are considered California, Singapore and Japan are probably pioneers Angelakis and Gikas (2014).
UN Food and Agriculture Organization (FAO) unified the best practices worldwide and formulated the guidelines for reuse of drainage water. Adequacy and suitability of drainage systems and structures play a key role in increasing global agricultural production and improving global food security FAO (2018). Figure 2 illustrates a qualitative comparison among 13 famous countries with respect to its water reuse. Those countries are facing water supply challenges like Egypt. The red colour reflects lesser magnitude of the shown comparison aspect than the black colour. The following are some.
Figure 2
|

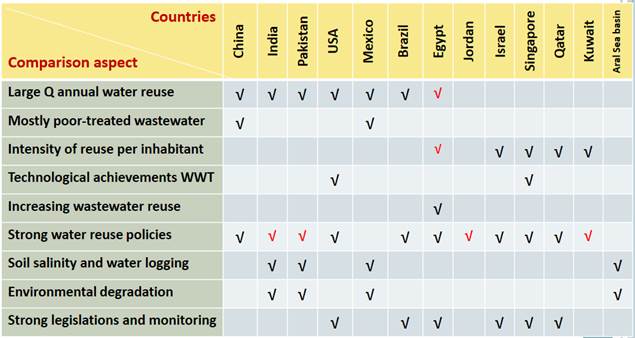

Figure 2 A Qualitative Comparison Among
13 Famous Countries in Water Reuse, Angelakis
and Gikas (2014) |
3.1.1.
Drainage water management in the Aral Sea basin
The
Aral Sea Basin is mostly agricultural crops that depend mainly on surface
irrigation. It is characterized by high evaporation and low precipitation.
Water resources in the region consist of renewable surface water and
groundwater as well as return flows in the form of
agricultural drainage water and wastewater. Excessive irrigation water with low
efficiencies had resulted in rising the groundwater levels and causing
secondary soil salinization. Nearly half of the irrigated lands were affected
by salinity. The shallow groundwater posed a major problem for agricultural
production. To combat these problems, horizontal or vertical subsurface drains
were developed. The disposal of drainage water caused considerable problems in
terms of downstream water quality. Reasons for the waterlogging and salinity
problems were the excessive irrigation. Drainage water use for irrigated
agriculture was used for reducing the disposal problems in the Aral Sea Basin.
Agricultural drainage water is currently reused for wetlands and biodiversity
development, while the effluent drainage is disposed and left for evaporation
in Desert depressions. The authorities put policies for regulating irrigation
water and collecting drainage water but have not been viable enough to face the
problem.
3.1.2.
Drainage water reuse and disposal in India:
The
Northwest parts of India are characterized as water deficient region. The introduction
of canal irrigation had reduced the gap between crops supply and potential
demand to a certain extent. As irrigation development policy took place without
the parallel development policy of drainage, water and salt accumulation has
occurred in most canal command areas. Salinity has already affected large areas
as remedial measures were not taken. In Punjab and Haryana, surface drains
policy was constructed, and groundwater development and flood control were
initiated in order to overcome waterlogging and
salinity problems. Vertical drainage in the form of shallow groundwater wells
was widespread throughout the region. Rise in the water table and subsequent
salinization have continued in those areas. It will be necessary to maintain a
fine balance between reuse and disposal of drainage water in
order to establish a favourable salt regime in the region. The existing
experience from small pilot projects is only indicative of the feasibility of
reuse, shallow water table management and disposal requirements. The
large-scale drainage disposal and reuse programs planned for Northwest India
will make significant improvement toward a favourable salt regime at basin
level.
3.1.3.
Drainage water reuse and disposal in Pakistan
The
water quality in the Indus River and its tributaries at their
entry points into Pakistan is characterized by a low salt content. Apart from
surface water, groundwater is an important source of supplemental irrigation
supplies in the irrigation system of Pakistan. The salinity content of groundwater
varied considerably. About one-third of the irrigated area had groundwater with
a high salt content and a gradual rise in the water table. This had resulted in
widespread waterlogging and salinity problems with serious adverse impacts on
agricultural production. Then, vertical subsurface drains were installed in the
affected lands. Water demand has continued to grow with the increasing
population and land pressure. Government policies encourage the maximum use of
groundwater pumped for drainage for irrigation in conjunction with the canal
supplies. Where groundwater is saline, drainage effluent is allowed to be
disposed into the canals for reuse after dilution or it can be conveyed to the
rivers through drains at times of high river flows. A spinal drain has been
constructed for areas located close to the sea. It was constructed to convey
the highly saline subsurface drainage effluent and rainfall excess from the
agricultural lands to the sea.
3.1.4.
Drainage water reuse and disposal in The United States of
America
In western California, the
United States of America, water delivery to the irrigated agriculture is based
on water rights and water availability. That area was affected by waterlogging
and salinity problems with water tables. The collected subsurface drainage
water was used. The State of California promotes efficient water use through
policies and legislation. Government policies exist for the reuse of reclaimed
wastewater but not for the reuse of irrigation subsurface drainage water.
However, there are constraints on the discharge of irrigation return flows to
public water bodies. These constraints on drainage water discharges serve as an
incentive for improved water management practices. New drainage water
management practices have been identified with management options of reuse and
disposal. Drainage water management options include source reduction, drainage
water reuse, drainage water treatment, disposal in evaporation ponds, land
retirement, groundwater management, river discharge, and salt utilization. For
drainage water treatment, the flow-through wetland system appears to be the
most promising option. Salt utilization has offered good long-term potential
for meeting the salt balance challenge. The drainage water management practice
used has still been inadequate to sustain irrigated agriculture in western
California. However, a concerted effort is underway to sustain agriculture with
other drainage water management options.
3.1.5.
Sewage water treatments and reuse in Israel
Israel as a semiarid country, is characterized by long dry summers and short wet winters. Crop production in more than 50% of its agricultural lands relies mainly on modern irrigation. In recent decades, although the total cultivated lands have not been significantly changed, the area of irrigated land has been reduced, in accordance with the amount of available water for agriculture. Conventional sources of good quality fresh water became more limited. Therefore, in order to maintain sustainable agriculture to meet the increasing demands for food, and to combat desertification, reuse policy of unconventional water resources derived from treated sewage water (effluent) have been heavily applied and used for agriculture.
3.1.6.
Sewage water treatments and reuse in Singapore
Singapore is a small country with limited water resources and law population. It has exploited all its inland water sources then imported drinking water through a pipeline from its neighbour Malaysia. In the year 2000 and to explore the possibility of reusing wastewater for industrial and potable uses, the government of Singapore applied a new policy for reuse of marginal water. It launched a pilot wastewater recycling demonstration project. Thus, a portion of the treated effluent was diverted to a water purification plant, which included microfiltration, reverse osmosis, and ultraviolet radiation disinfection units. The final product is called “NEWater”. The quality of that produced water was assessed and found health-impact free. The production of NEWater has considerably expanded. NEWater is primarily used in industrial applications and in cooling towers, however, a small amount is injected to the potable water reservoirs. Despite the technological progress, public opinion tends to view potable uses of reused water with scepticism. Few years after, water reuse project in Singapore has been well accepted by the public as a result of a systematic governmental promotion program.
3.2. Existing and future water policies
in Egypt
The population of Egyptians living in Egypt continues to increase with an average growth rate of about 2.2% CAPMAS (2021). In addition, the increasing competition over the Nile River waters among the upstream riparian countries, in the absence of a commonly agreed river basin management vision, threatens the sustainability of Egypt’s Nile water. The water scarcity challenge is exacerbated, requiring additional water resources especially for the municipal and agriculture sectors.
Abdel-Shafy
and Mansour (2013) mentions two predominant types of drainage water
reuse: 1) official reuse: water from any main drain, blended with freshwater
from any main canals to be used downstream for irrigation purposes and for the
municipal water supply; and 2) unofficial reuse: where farmers at the tail-ends
of irrigation canals use their private mobile pumps on agriculture drains to
irrigate their fields in the absence of adequate freshwater, also takes place.
It is estimated that unofficial reuse accounts for up to 50% of the total reuse
of drainage water MWRI
(2018). The Nile River is currently the main drain for
the Upper Egypt area, whereas the Mediterranean Sea is the main drain for the
Nile Delta regions. Gravity reuse has been realized in the 1930s that all
drains should be given the same attention given to canals. In the 1980s,
agricultural drainage reuse became an official policy to augment irrigation
water supplies. Afterwards, a huge agricultural reuse expansion plans were
implemented in desert areas. Upper Egypt’s agriculture drainage, in often cases
still, finds its way to the Nile system and may be reused again downstream after
mixing with fresh Nile water.
Egypt Vision 2030 was developed in 2016 as a Sustainable Development Strategy for Egypt up to the year 2030 MPED (2016). The Vision possesses a competitive, balanced, and diversified economy. This depends on innovation and knowledge, based on justice, social integrity, and participation. It is also characterized by a balanced and diversified ecological collaboration system, investing the ingenuity of place and humans to achieve sustainable development and to improve Egyptians' life quality. Based on that, the National Water Resources Plan in Egypt up to 2037 (NWRP2037) was developed in 2018 in line with the Egypt Vision 2030 (Figure 1). It addresses the challenges facing Egypt’s dependency on the transboundary water resource of the Nile and on the nonconventional water resources (drainage water and wastewater) reuse in agriculture. The role of virtual water imports in achieving Egypt’s food security is important. It reflects on existing water policies and provides actions for water policies that would achieve quick wins in the future. So far, Egypt imports virtual water (strategic crops and meats) in the amount of 34 billion m3 every year MWRI (2018). Table 1 shows water supply-demand balance in Egypt as of 2017, extracted from the NWRP2037 MWRI (2018).
Table 1
Table 1 The 2017 Estimated Water Balance for Egypt (Billion m3/year) |
|||
Water Resources |
BCM/year |
Water Demand Per Sector |
BCM/year |
1)
Primary Water Resources: |
|
|
|
- Nile River |
55.5 |
Domestic |
10.8 |
- Non-renewable groundwater |
2.1 |
Industry |
5.4 |
- Rainfall |
1.3 |
Agriculture |
61.6 |
- Saline water desalination |
0.4 |
Evaporation |
2.5 |
Sub-total (1) |
58.2 |
|
|
2)
Reuse From Secondary Water Resources: |
|
|
|
- Nile Valley & Delta
groundwater |
7.5 |
|
|
- Agricultural drainage
reuse |
9.3 |
|
|
- Treated wastewater reuse |
4.2 |
|
|
Sub-total
(2) |
21 |
|
|
Total (1) + (2) = water
availability |
80.3 |
Total water uses |
80.3 |
Extracted
from the National Water Resources Plan in Egypt up to 2037 MWRI
(2018) |
Figure 3 shows the agricultural
lands in Egypt with the main water control and distributions structures (High
Aswan dam and main barrages on the Nile). The impacts of climate change on the water sector in Egypt need
assessment not only at the national level but also at the transboundary level
where 97% of the renewable water resources of Egypt originate upstream in the
Nile River basin. From the institutional perspective, the water sector in Egypt
is currently divided among two main Ministries: The MWRI, in charge of water
resources planning and management, irrigation, and agriculture drainage, and
the Ministry of Housing, Utilities and Urban Communities, in charge of domestic
water supply and sanitation.
3.3. Impacts of irrigation improvement
projects and expansion in land reclamation
Due to the aridity and limited freshwater resources; the total cultivated area of Egypt is about 3.45 % of the total area of the country. The Nile water system and its network of irrigation canals and agriculture drains in Egypt is considered one of the world’s most efficient systems, with an overall water use efficiency, reaching over 75% in terms of water quantity. However, there is still room for improvement to increase the efficiency further at the local and farm levels, and to improve the quality of water delivered, which is another aspect of water use efficiency.
Figure 3
|
Figure 3 The Agricultural Lands in Egypt
with the Main Water Control and Distributions Structures source www.sis.gov.eg |
Based on literature review, irrigation
improvement may save an additional 10–20% of freshwater availability. It will
also provide better distribution and more equity in allocating water quantity
and quality among irrigation water users AbuZeid (2011). So
far, this has been contributing to the incremental increase in the supply of
municipal water needed for urban expansion and the increasing population needs.
On the other hand, state-of-the-art technology and innovations in irrigation
are used in the desert reclamation projects for agriculture expansion. Modern
irrigation schemes such as automated smart sprinkler and drip irrigation
technologies are adopted. Old agriculture lands in the Nile Valley and the
Delta are being modernized. Farm irrigation in more than 1.0 million feddans
have been modernized. Smart irrigation technologies are being practiced at few
old lands in Egypt AbuZeid (2019).
Reallocating the water saving that result from water
efficiency projects may not necessarily be reallocated to the same sector. With
the ever-increasing demand in municipal water, a sector that has the highest
priority in water allocation, it may be needed to reallocate Nile freshwater
savings from the agriculture sector to the municipal water sector and allocate
the treated wastewater resulting from municipal water uses to agriculture
expansion projects AbuZeid (2019).
Under NWRP2037 - the business-as-usual (BaU)
strategy in Egypt, the amount of water available for agriculture will fall to
59.6 BCM as gains in the overall availability of freshwater are less than the
increased supplies to domestic and industrial usage. The area irrigated will
remain quite similar to that of 2017; the water
balance studies estimated that agriculture lands was 9.13 million feddan in
2017; while in 2037 it could be 9.6 million feddan. Although additional lands
will have been reclaimed, existing lands will also be lost due to urbanization.
As a consequence, farm households or agricultural
enterprises will have to operate with about 8% reduction in the amount of water
available to their crops. This is a more challenge as climate change will, due
to the expected rise in temperature, resulting in higher potential crop evapotranspiration
MWRI
(2018).
The ambition of the NSDMWR (2019) is to save 10
billion m3/year by 2030 – both through rational use of existing
resources and development of new resources – through measures to be implemented
between 2017 and 2037. The NWRP2037 has incorporated those measures and
reflected their impact and cost. The impact of reducing the amount of
irrigation water is directly proportional to the resulting amount of drainage
water, however the percentage of that reduction in drainage water is the
question which is difficult to answer. In this context, it is interpreted that
the national project for canal lining shall prevent more irrigation water to
infiltrate into the soil and reach the nearby drainage system. It is
interpreted that the reduction in drainage water due to canal lining could
reach (2-4) % of the irrigation water, which is equivalent to about 2.5 billion
m3/year (4% out of the 61.6 billion m3/year total
irrigation water in Egypt). This assumption is based on unpublished research
and the personal interpretation.
General ratio of reducing the amount of drainage water to the amount of
irrigation water have been mentioned in another research works about (20-25) %.
This could be equivalent to 4.2 billion m3/year (25% out of 16.8
billion m3/year total reuse of agricultural drainage and shallow
groundwater in the Nile Delta and Valley). The worst scenario is adopted just
to show the extent of impact that might happened. Accordingly, it is assumed
that expansion in land reclamation in the Delta’s fringes and desert as well as
irrigation improvement projects could cause reduction in agricultural drainage
amount by about 4.2 billion m3/year.
3.4. Impacts of expansion in installing
sanitation and sewerage networks
In case of
water shortage, domestic water demand takes priority in satisfying demand over
other sectors. The high dependency of Egypt on the one Nile River as the main
source for renewable water resources forces the construction of long lengths of
pipes to transfer domestic water to urban centers of
population and remote suburbs AbuZeid and Wagdy
(2019). The water supply coverage in Egypt has reached 100% in 2008, yet it dropped
back to 99% in 2011 due to continued population growth and dropped again some
more due to occurring cuts in investments in several years after 2011 HCWW (2014). The annual production of water supply reached
6.6 billion m3 in 2011, with groundwater plants providing an
additional 1.4 billion m3 annually, reaching 12.25 billion m3/year
in 2022. Figure 4 shows the projected water supply in Egypt up to 2030,
AbuZeid and Elrawady
(2014). Although close to 100% of the
households are connected to the national potable water networks, only about 56%
of them are connected to the national sewage networks CAPMAS (2017). More specifically, it is 91% in urban areas and
about 14% in rural areas, according to the Law 48/1982 AbuZeid and Wagdy
(2019).
Figure
4
|

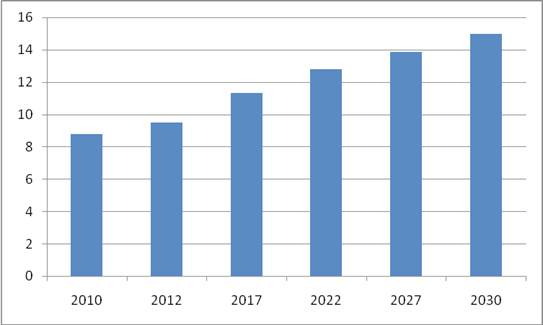

Figure 4 Projected
Water Supply Capacity (billion m3), (modified from HCWW (2014) |
The Government of
Egypt launched the National Rural Sanitation Program (NRSP) in 2015, which aims
to provide access to sanitation in villages and rural areas through the
provision of local wastewater treatment plants, sewage networks and pump
stations. Although amount of drainage water could be less due to the expansion
in sanitation connections services instead of disposing it raw to the nearby
open drains, the drainage water that was prohibited due to the high pollution
rates can be reused safely EBRD (2021). A study by the World Bank in 2021 concluded
that the expansion in small and medium sewage collection and treatment units,
that dispose its treated water into the open drainage system in Egypt, leads to
lowering the biological contamination and accordingly lowering the pollution
loads that used to be mixed with the agricultural drainage water.
3.5. Impacts of constructing the mega
wastewater treatment plants
Using treated
wastewater for non-potable uses saves potable water for drinking, since less
potable water will be used for non-potable uses. Due to the technology
involved, the cost of wastewater reuse exceeds that of potable water in many
regions of the world, especially where a fresh water supply is conveniently
available. However, treated wastewater is usually sold to citizens at a cheaper
rate to encourage its use. Different countries tend to setup codes for using
treated wastewater in irrigation; these codes usually link the type of crop to
the degree of treatment. Skinless fruits and raw-edible vegetables require the
highest degree of treatment. With the increasing population in Egypt, as more
water will eventually need to be supplied to meet the basic human needs of
domestic water demand, and with the water-saving programs that lead to less
agricultural drainage water, the growing amounts of wastewater will make
treated wastewater on top of the list of Egypt’s alternative water resources.
However, treated wastewater reuse in Egypt encounters several limitations that
must be properly safeguarded.
Egypt produces about
7.0 billion m3/year of wastewater in 2011. About 3.7 billion m3/year
of which were untreated, 2.4 billion m3/year were secondary treated,
0.9 billion m3/year were primary treated, and only about 0.1 billion
m3/year were tertiary treated. Out of that total (about 3.4 billion
m3/year) treated wastewater, only about 0.3 billion m3/year
were reused directly for agriculture, while the remaining amount was disposed
to the national drainage network where they were indirectly reused HCWW (2014). About 96% of the collected wastewater
was safely treated AbuZeid (2017b).

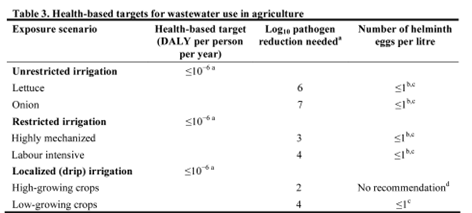

It is worth mentioning that the World Health Organization (WHO) and the
UN Food and Agriculture Organization (FAO) set guidelines for wastewater reuse
in agriculture WHO (2006), FAO (2000). In order to effectively implement wastewater management
programs, suitable institutional structures must be aligned with the policy and
regulatory frameworks to create the right incentives for reuse and resource
recovery. Several institutional barriers, however, hinder the development of
those activities. Among the major and key institutional challenges is the lack
of coordination between different levels (inter-sectoral) of government Rodriguez et al. (2020). Utilizing treated wastewater for agricultural
irrigation has been regulated and practiced in many countries such as the USA,
Germany, India, Kuwait, Saudi Arabia, Oman, Jordan, and Tunisia. That practice
first was adopted in Egypt at El-Gabal el-Asfar farm, which consists of an area of 3,000 feddans
of wood trees, irrigated by that treated wastewater.
Figure 5 shows the projected collected wastewater
capacity till 2030, according to the 2030 Strategic Vision for Treated Wastewater AbuZeid and Elrawady
(2014).
With this overview, an Egyptian wastewater treatment reuse code was
developed by the Ministry of Housing, Utilities and Urban Communities (MHUUC)
and adopted in 2015 (ECP 501/2015), MHUUC (2015). The ECP
501/2015 is more flexible than the old laws, yet the health safeguards of the
humans and environment remain strictly met Khairy and Abdel Ghany
(2021). It classifies the treated wastewater into three
grades according to the level of treatment as shown in Table 2 and assigns agricultural groups that can be
irrigated by treated wastewater as shown in Table 3.
Figure
5
|

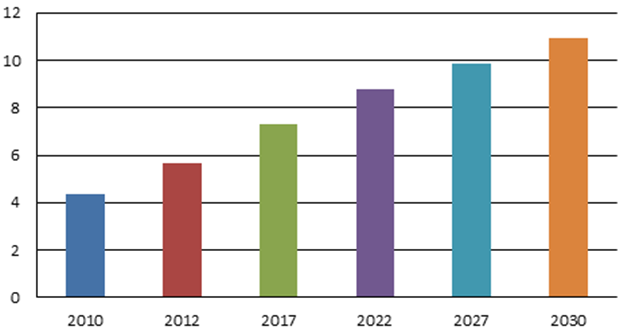

Figure 5 Projected Wastewater Collection
Capacity (billion m3/year), (modified after HCWW
(2014) |
Table
2
Table 2 Grades of Treated Wastewater, MHUUC (2015) |
|||
|
Grade A |
Grade B |
Grade C |
BOD mg/l |
<20 |
<60 |
<400 |
TSS mg/l |
<20 |
<50 |
<250 |
Potential
number of the colonic group in 100 cm3 |
<1000 |
<5000 |
N/A |
No. of
eggs of nemetoda No./l |
<1 |
<1 |
N/A |
The total amount of produced wastewater in 2030 according to Egypt’s
2030 Strategic Vision for WWT will be about 11.7 billion m3.
Assuming that all primary treatment plants will be upgraded to secondary
treatment, the total expected amounts to be secondary treated at the national
level in 2030 is 11.6 billion m3 which is almost the whole produced
amount, as the small remaining margin represents the current amount of 67.7
million m3 that is subject to tertiary treatment and will be
maintained through 2030. According to the 2030
Strategic Vision for WWT, 5.8 billion m3 will be used
directly in agricultural expansion areas, while 5.5 billion m3 will
be disposed into the agricultural drains in the delta AbuZeid and Elrawady
(2014). According to
the Ministry of Agriculture and Land Reclamation, 1.4 million feddans will be
reclaimed for cultivation, according to the 2030 Sustainable Agricultural
Development Strategy, with a total average annual water requirement of
about 5.4 billion m3. According to the 2030 Vision, these water
requirements can be satisfied by the secondary treated wastewater produced in
2030. The Vision estimates an additional about 1.5 million feddans (not 1.4 million
feddans) that could be reclaimed based on the remaining potential of secondary
treated wastewater of 0.4 billion m3 from desert front governorates
and 5.5 billion m3 from the delta governorates at an estimated water
requirement of about 4100 m3/feddan/year FAO (2021).
Table
3
Table 3 Agricultural Groups by Grade MHUUC (2015) |
||
Grade |
Agricultural
Group |
|
A |
G1-1:
Plants and trees grown for greenery at tourist villages and hotels |
Grass,
Saint Augustine grass, cactaceous plants,
ornamental palm trees, climbing plants, fencing bushes and trees, wood trees,
and shade trees |
|
G1-2:
Plants and trees grown for greenery inside residential areas at the new
cities |
Grass,
Saint Augustine grass, cactaceous plants,
ornamental palm trees, climbing plants, fencing bushes and trees, wood trees,
and shade trees |
B |
G2-1:
Fodder/ Feed Crops |
Sorghum |
|
G2-2:
Trees producing fruits with epicarp |
On
condition that they are produced for processing purposes such as lemon,
mango, date palm, and almonds |
|
G2-3:
Trees used for green belts around cities and afforestation of highways or
roads |
Casuarina,
camphor, athel tamarix (salt tree). oleander,
fruit-producing trees, date palm and olive trees |
|
G2-4:
Nursery Plants |
Nursery
plants of wood trees, ornamental plants, and fruit trees |
|
G2-5.
Roses and Cut Flowers |
Local
rose, eagle rose, onions (e. g. gladiolus) |
|
G2-6: Fiber Crops |
Flax,
jute, hibiscus, sisal |
|
G2-7:
Mulberry for the production of Silk |
Japanese
mulberry |
C |
G3-1:
Industrial Oil Crops |
Jujoba, castor oil plant, and Jatrova |
|
G3-2:
Wood Trees |
Kaya,
camphor, and other wood trees |
The 2030 Strategic
Vision for WWT provides options for reuse plans of each governorate in terms of
recommended levels of wastewater treatment, projected amounts of produced
wastewater, suggested mode of reuse, and whether it should be directly reused
or conveyed by drains or canals for further reuse downstream AbuZeid and Elrawady
(2014). The Egyptian Governorates were divided into
two categories, with different strategies for each category, the first category
consists of governorates without agricultural expansion plans which includes
the six delta governorates (Menoufia, Dakahlia, Kafr El-Sheikh, Gharbia, Kalyoubia)
in addition to Cairo, Alexandria, and Port Said. The other category consists of
all governorates with a desert front and/or a future agricultural expansion
plan. The secondary treated wastewater will be directed to the main drainage
network allowing reuse downstream through agricultural drainage mixing pumping
stations to be conveyed to Northern planned agricultural expansion areas such
as North Sinai in the Northeast and Hammam area and others in the Northwest.
Whereas, in case of the Desert front governorates and/or those with identified
agricultural expansion plans, the secondary treated wastewater will be used
directly for agriculture AbuZeid and Elrawady
(2014). ReWater project by
the International Water Management Institute (IWMI) in collaboration with
CEDARE as well as several Egyptian governmental and non-governmental
institutions; is developing a 2030 Shared Water Resources Strategy for Treated
Wastewater Reuse. A first draft was prepared in late 2020, the final version
still under preparation. The project helps to make a new policy based on actual
data collection and a series of national consultations to assure stakeholders’
involvement and demand satisfaction ReWater Project (2020).
After finalizing
that strategy, a “National Plan for Wastewater Reuse” would also be needed on
governorates level, so to be part of a national Integrated Water Resources
Management (IWRM) Plan for Egypt and for other countries with similar water
scarcity situation. To achieve that national plan, a national-dialogue function
is needed among the different sectors and key stakeholders to discuss the
challenges and opportunities.
Focusing on the
allocation of treated wastewater for agriculture, it worth mentioning that
several new agricultural projects in the desert areas are under construction
with the aim to promote attractive communities’ settlements in Sinai and
western desert. Agriculture development projects in North Sinai depends on
reuse of the treated agricultural drainage water of Bahr El-Baqar
drain (mixed with huge amounts of wastewater from greater Cairo) providing
about 5.6 million m3/day of treated wastewater, which could be
pumped from Bahr El-Baqar WWTP into the agricultural
schemes in north Sinai (Egypt Today, 2019). Additionally, in middle Sinai,
treated wastewater of El-Mahsama Drain could be pumped
into Sinai adding about 1.0 million m3/day to irrigate new
agricultural schemes Khairy and Abdel Ghany
(2021). In the near future,
El-Hammam WWTP shall provide additional 7.5 million m3/day to
reclaim what is called the New Delta in the western desert of Egypt. Those
three mega WWT projects shall provide about 5.1 billion m3/year to
irrigated new large agricultural schemes, as part of the national project to
reclaim 1.5 million feddans MWRI (2022). The
extraction of large amounts of agricultural drainage water mixed with raw
wastewater, treating it in the mega mentioned above WWTPs, then diverting it to
irrigate large, reclaimed lands out of the Nile Delta shall reduce the amounts
of drainage water necessary for reuse in agriculture in those areas. This might
be compensated with the safe reuse for treated wastewater through the new,
local, and small WWTPs.
3.6. Changes in water and soil salinity
in the old lands (the Nile Delta regions)
Amer and Ridder (2016) informed that irrigation-induced salinity can
arise as a result of the use of any irrigation water,
irrigation method, irrigation of saline soils, rising levels of saline
groundwater, and absence of drainage system in heavy soils combined with
inadequate leaching. When surface water or groundwater containing mineral salts
is used for irrigating crops, salts are carried out into the root zone. In the
process of evapotranspiration, the salt is left behind in the soil, since the
amount taken up by plants and removed at harvest is quite negligible. Table 4 shows the salinity classes’ classification of
the reused drainage water (quantities and qualities) in the Nile Delta in Egypt
during (2020-2021). The more arid the region is, the larger is the quantity of
irrigation water and, consequently, the salts applied, and the smaller is the
quantity of rainfall that is available to leach away the accumulating salts.
Excess salinity within the root zone reduces plant growth due to increasing energy
that the plant must expend to acquire water from the soil Polyakov (2021).
Table
4
Table 4 Classification of Reused Drainage Water in the Nile Delta (Quantities and Qualities) During (2020-2021), DRI (2022) |
||||
Salinity Class |
Eastern Delta Billion m3/y |
Middle Delta Billion m3/y |
Western Delta Billion m3/y |
Total Delta Billion m3/y |
< 750 |
1.235 |
0.070 |
0.224 |
1.529 |
750 - 1000 |
0.066 |
0.344 |
0.649 |
1.059 |
1000-1500 |
0.559 |
2.022 |
0.191 |
2.772 |
1500-2000 |
0.000 |
0.142 |
0.000 |
0.142 |
2000-3000 |
0.000 |
0.000 |
0.000 |
0.000 |
On the other hand, Table 5 shows the distribution of disposed drainage
water (quantities and qualities) to the Northern lakes and The Mediterranean
Sea from the Nile Delta regions in (2020-2021). The salt loads amounts are
increasing yearly, compared with its values in (2015-2016), DRI (2022). The total salt load increased accumulatively
by about 5%, from 31.9 million tons in (2014-2015), DRI (2016) to 33.6 million tons in (2020-2021), DRI (2022). The overall average water salinity increased
by about 1.1 % from 2211 g/m3 in (2014-2015) to 2234 g/m3
in (2020-2021); respectively. It
can be inferred that salts amounts from the agricultural lands of the Nile
Delta increases with time proportional to the implementation of the
water-saving policies and with the multiple drainage water reuse. In this
context, it is good to highlight that turning 800 thousand feddans of heavy
clayey soil agricultural lands in the Nile Delta from improved surface
irrigation into modern irrigation (sprinkler and drip systems) might cause
significant soil salinization problem with time due to the insufficient
leaching and accordingly salts continue to accommodate significantly in the
root zone Maftouh et al. (2022).
Table
5
Table 5 Distribution of Disposed Drainage Water to the Northern Lakes and the Mediterranean Sea (quantities and qualities) in the Nile Delta in 2020-2021 |
|||
Delta
Region |
Discharge Billion m3/y |
Average
Salinity g/m3 |
Salt
load Million
Tons |
Eastern
Delta |
5.513 |
1750 |
9.647 |
Middle
Delta |
5.102 |
2130 |
10.867 |
Western
Delta |
4.451 |
2951 |
13.134 |
Total
Delta |
15.066 |
2234 |
33.648 |
India would require
around 311 million tons of food grains (cereals and pulses) during 2030 to feed
around 1.43 billion people, and the requirement expectedly would further
increase to 350 million tons by 2050 when India's population would be around
1.8 billion. To achieve food security in India, restoring the degraded lands
due to poor drainage and lower irrigation applications is a viable need.
Sub-surface drainage of water-logged saline lands, salt tolerant crop varieties
and improved agroforestry techniques are some of the well-adapted technologies
to use. Around 6.7 million ha area in the country is salt affected
(salinity/alkalinity/acidification). The Government of India has fixed a target
of restoring 26 million ha of degraded lands, including salt-affected soils
through reuse of agricultural drainage by the year 2030 to ensure food security
for the people Kumar and Sharma (2020). Water authorities in any relevant country
should keep examining the design criteria for the present and future planned
drainage systems under a wide range of water-saving policies as well as
climatic conditions, with focus on exploring the vulnerability of both
structural and non-structural components of the systems for more future
efficiency Leavesley et al. (1992), Shiklomanov (1994).
3.7. Changes in seawater intrusion in the
Northern Delta lands
Saltwater intrusion
in coastal areas is highly correlated to the abstraction rate of the shallow
groundwater and irrigation management practice. Egypt is following strict
policies to rationalize the amounts of irrigation water, improve the on-farm’s
surface irrigation efficiency, practicing of multiple reuses of agricultural
drainage water as well as the shallow groundwater in irrigation, and expand in
treating wastewater and drainage water at the Northern parts of the Nile Delta,
as indicated under sections (3.3) till (3.6) above. Those policies and
practices affect negatively on the fresh versus saline groundwater equilibrium
in the Northern parts of the Nile Delta, causing increasing seawater intrusion
phenomenon in the Northern parts of the Nile Delta and as a result increasing
the soil salinity Engelen et al. (2019). This requires more water for salts leaching
from the top soil layers, which might not be the case
with the expansion in water saving and water management projects in Egypt Khairy et al. (2020).
4. Discussion on the availability of
agricultural drainage water for reuse in Egypt in the future
An assessment study
by Rachele (2019) investigated that water reuse is a viable
cost-effective policy measure for agriculture and it has a key role in mitigating water scarcity and reducing freshwater
abstraction in the European Union countries. Furthermore, it suggested that
treated wastewater can help
mitigate the effects of climate change.
The total amount of water
reuse (drainage water and wastewater) in Egypt reaches about 21.0 billion m3/year.
That amount can be classified into three categories: 1) the amount of
officially reused agricultural drainage is 9.3 billion m3/year; 2)
summation of the unofficial reuse of agricultural drainage (by farmers, natural
flow to the River Nile in the Upper Egypt and Nile Valley, and the shallow
groundwater abstraction in the Nile Delta regions) is about 7.5 billion m3/year;
and 3) the treated wastewater reuse in Egypt is the amount of 4.2 billion m3/year.
According to NWRC (2008), there was about 13.5 billion m3 of
mixed agriculture drainage and raw wastewater disposed annually to the
Mediterranean Sea, the latter amount consists of about 7.0 billion m3
of agricultural drainage of poor quality due to multiple reuses, as well as 6.5
billion m3 of municipal and industrial wastewater. By 2020, Egypt
initiated a rigorous strategy to maximize the use of the treated agricultural
drainage water that is mixed with wastewater instead of disposing that large
amount to the sea. The two mega WWTPs that are already operational (El-Mahsama WWTP and Bahe El-Baqar WWTP) as well as the about-construction finalization
El-Hammam WWTP. The maximum capacity projected is about 5.1 billion m3/year
of treated water out of that originally large amount of poor-quality drainage
water flowing into the sea. It is evident that diverting of such large amount
of drainage water out of the Northern parts of the Nile Delta system most
likely shall cause two problems: increasing the inland saline water intrusion
from the Mediterranean Sea and accumulation of salts in the root zone of the
agricultural crops under cultivation in the heavy soils of the Nile Delta
regions (due to the multiple reuses of the saline drainage water).
Based on the technical review presented on the national and
international water policies of drainage water reuse with respect to the mega
water projects, the following results are extracted:
·
The 2050 National Strategy for Development and
Management of Water Resources NSDMWR (2019) recognized
WWT as a potential solution for contributing to filling the gap between water
demand and supply in Egypt by 2050. Accordingly, expansion in wastewater reuse
in all governorates should be conditioned on the involvement of the private
sector. NWRP2037 on the other hand, identified the drip irrigation as the most
suitable irrigation method using the reuses treated wastewater, and assumed its
irrigation efficiency ~80% Zhao et al. (2021).
·
The
broader concept of IWRM involves integrating land and water, upstream and
downstream, groundwater, surface water, and coastal resources. One of the main
pillars of the IWRM is optimizing supply, which in turn, involves conducting
assessments of surface and groundwater supplies, analysing water balances,
adopting wastewater reuse, and evaluating the environmental impacts of water
distribution and use options. Also, utilizing an inter-sectorial approach to
decision-making, where authority for managing water resources is employed
responsibly and stakeholders have a share in the process, is another important
IWRM component GWP (2020).
Figure
6
|

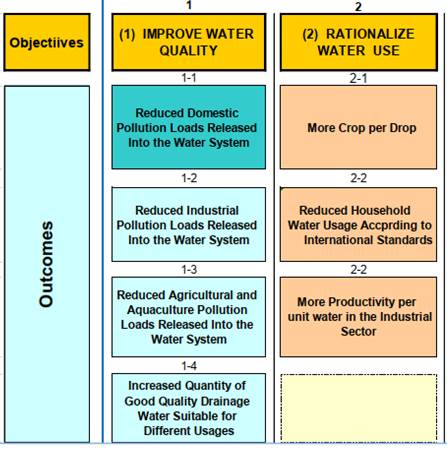

Figure 6 The
First and Second Objectives of NWRP2037 Versus Its Outcomes - MWRI (2018) |
·
Based on the NWRP (2018), the illustration (Figure 6) explains
that the first and second objectives of the NWRP2037 shall lead significantly
to reducing the quantities of drainage water in the drainage system (surface
system and sub-surface network), yet its qualities shall fairly improve due to
the enforcement laws of banning the disposal of raw wastewater into the open
drainage network. The operation of the mega WWTPs as well as the small &
local WWT stations, implementation of the water saving and irrigation
improvement projects, and availing enabling environment for IWRM most likely
shall turn into less availability of drainage water for reuse. This situation
put some risks as Egypt might not continue depending fully on drainage water
reuse as a viable water policy practice.
·
The
interpretation of the results from the NWRP2037, the amount of reused drainage
water and wastewater shall increase from 26% to 28% by the year 2030;
accordingly, the amounts of direct agricultural drainage water reuse shall
increase from 13.5 billion m3 to 16 billion m3 by the
year 2030. However, the amount of drainage water flowing into the Mediterranean
Sea and Lake Qaroun in Fayoum was about 8.4 billion m3
in the year 2020 and expected to decrease to 3.4 billion m3 by the
year 2030.
·
The
interpretation of the results of the 2030 Strategic Vision for Treated
Wastewater is that the maximum amount of direct (official reuse) agricultural
drainage water available for reuse was about 12.6 billion m3 in the
year 2020 and shall not exceed 11.2 billion m3 in the year 2030,
including the reuse for treated wastewater from the new small and local WWT
stations spread in all governorates (was about 13.5 billion m3/year in the year 2017). However,
the expansion in safely using WWT through the mega WWTPs in Egypt (which
increases incrementally to reach ~5.1 billion m3/year by 2030) shall
contribute to filling that deficit.
The decision makers
in Egypt have been aware of the limiting factors on policies for agricultural
drainage water reuse. Those factors should be inherited in the future water
policy decisions of the agricultural drainage water reuse in the Nile Delta
are:
·
Due to the
expansion in water management and water saving projects, the amount of
irrigation water allocation to the old lands of the Nile Delta as well as the
amount of the resulting agricultural drainage water shall continue to decrease.
This is occurring as a result of diverting large
amounts of treated wastewater out of its original system (Nile Delta and
Valley) in Egypt.
·
Excessive
reuse as well as water saving practices might cause the accumulation of salts
in the root zone, particularly in the clayey and loamy clay soils in the Nile
Delta regions. Accordingly, salt balance in the Nile Delta shall be altered
significantly if compared to the existing salt balance condition.
·
The new
water resources law must be enforced nationwide to assure neither the drainage
water does not include heavy metals and toxic pollutants, in
case the mixing with raw industrial water disposals could not be
strictly stopped, nor the presence of agricultural chemicals in drainage water
that could cause the deep percolated water to harm the groundwater reservoirs
in some agricultural lands.
AbuZeid (2019) concluded that Egypt succeeded in
implementing a group of water policies that encourage the conservation and use
of nonconventional water resources, improve water allocation, and water
accounting, and jointly develop new Nile water resources. It is crucial to plan
to use the suitable type of water for the appropriate use at the proper
geographic location. Applying the fit-for-use water concept is going to result
in reduced costs and efficient overall water-use. Although there are some
attempts to make use of agricultural drainage water after mixing with treated
wastewater for safe agriculture in some areas, and use of high-value non-renewable
groundwater for drinking water bottling, which contribute to the concept, yet;
there is still no policy that is adopting the concept at the national level.
Allocating the nonconventional water resources for agriculture in the coastal
cities on the Mediterranean and the Red Sea should be the first, then to
consider desalination for fulfilling drinking water needs and start planning
for it, if new water resources are to be sought. In the near
future when Egypt will need to expand in desalination, proximity of
seawater and brackish groundwater should play a role in reducing the cost of
providing desalinated water.
It will be prohibitively expensive to convey
desalinated water inland for long distances. Inland governorates will therefore
have to continue depending on the Nile water, groundwater, and treated
wastewater as the main sources for sustainable development in the future. This
may require a new water policy that prohibit Nile water allocation to the
coastal governorates, and instead to keep it for the inland governorates. With
the existing limited share of Egypt from the Nile waters, no more internal Nile
waters should be reallocated to coastal cities, as desalination would be the
most appropriate resource for those coastal cities AbuZeid (2019). Desalination may appear to be the
easy solution for providing new water resources; however, in some cases there
are other priority options that are more cost-effective for making more water
resources available, especially agricultural water-services pricing, water
conservation, and reuse of locally treated wastewater options AbuZeid (2017c).
The mega projects in the water sector create a
room for reducing agriculture water losses by about 10%. A “swap approach” in
the type of water provided for agriculture represents another option of
reallocation, whereby agriculture drainage water, or treated wastewater rich in
nutrients, may replace fresh Nile water for agriculture to free fresh Nile
waters for drinking and domestic uses Stefan et al. (2020). This requires more attention to be
given to the quality of agriculture drainage water for satisfying future water
demand AbuZeid (2017c).
It is proposed that more solid actions in terms of a trade-offs (swap) approach to be considered
as shown in Table 6. It explains
the proposed water resources trade-offs scenarios. That approach depends on
swapping water resources among the competing sectors based on the geographical
location, nature of use, water accounting and monitoring systems. Yet it needs
further examination and technical investigations by the researchers and
scientists before it is discussed at the policy level in Egypt.
The major outcome
that accrues to Egypt in case new water trade-offs approach is adopted is
alleviating the pressure on the Nile water since the inhabitants of the coastal
cities and remote communities shall be water self-sufficient. They shall use
desalinated water for drinking purposes; as well as maximize the use of treated
wastewater (which is uniquely considered an increasing renewable water
resource) in agriculture -in addition to the seasonal rain-. That should be
attained with strict human-use and environmental safeguards under the Egyptian
Code for treated wastewater reuse of the year 2015 (ECP 501/2015).
Table
6
Table 6 Adoption of a New Water Trade-Offs/Swap Approach1 Between the Competing Sectors in Egypt |
||
|
Water
Resources to be used |
Comments |
Municipal and Domestic Sector: |
||
Sector/sub-sector |
River
Nile system, as usual |
Continues
to drink from the river Nile water after purification |
New
communities and cities outside the Nile Delta and Nile Valley |
Desalinated
water with sufficient human-use safeguards |
Using
the existing and new desalination stations (the sources could be brackish
groundwater as an economic solution, if compared with desalination of the
seawater) |
Agriculture
Sector: |
||
Canal
command areas in the Nile Delta and Nile Valley |
- Fresh
Nile water augmented by agricultural drainage water reuse -
Treated wastewater could be used wherever it exists according to the Egyptian ECP
Code No. 501/2015 |
-
Sources are drainage networks (surface and sub-surface), as well as shallow
groundwater - The
treated wastewater could be used directly of after mixing with drainage water
with caution, so that no harm occurs to the humans or environment. |
Newly
reclaimed agricultural lands in the Nile Delta fringes and Saini |
-
Treated wastewater directly from the mega WWTPs; and/or -
Groundwater abstracted within the aquifers’ safe yields |
-
According to the water grade and permitted crops as per the Egyptian ECP Code
No. 501/2015 -
GW with reasonable quality suitable for the crops |
Wood
and non-fruitful trees |
- Treated
wastewater from the mega WWTPs; and -
Smaller & local WWT stations spread nationwide |
Wood,
fabric, and industrial crops |
Industrial
Sector: |
||
Industrial
facilities |
Treated
wastewater with strict safeguards |
Using
smaller & local WWT stations spread nationwide |
Electrical
Power Sector: |
||
Cooling
the thermal electrical stations nationwide |
Treated
wastewater with strict safeguards |
Using
smaller & local WWT stations spread nationwide |
Inland
Navigation Sector: |
||
Nile
cruises and trade vessels |
Nile
water to be utilized (not used) as usual |
With
strict laws to prohibit disposal of all types of liquid and/or solid wastes
in the river Nile system by all means. |
Tourism
Sector and Oil & Gas industry: |
||
Touristic
facilities in the Nile Delta fringes (coasts of The Mediterranean Sea &
Red Sea, Oasis, and Saini) |
Desalinated
water for drinking/domestic uses with sufficient human safeguards |
Using
new and existing desalination stations |
1Assumptions: 1) Raw wastewater
is collected separately apart from the drainage water system (surface and
sub-surface networks), the treated wastewater could be mixed with the
drainage water for agricultural reuse in the Nile Delta, and 2) Endorsing the
“canal command areas” concept instead of the “directorate and/or governorate”
concept in irrigation water distribution/allocation. |
The limited freshwater resources in Egypt as
well as expansion in treated wastewater use may put risks on the future of the
existing investments in the agriculture sector and reduce
significantly Egypt’s competitiveness in the agriculture export markets,
and in achieving national food security. Reallocation of a “different” type of
water resource (such as cheap desalination for the irrigation purpose) may be
needed to compensate for the depleted groundwater in the agriculture sector and
to maintain the economic and social activities associated with the sector. On
the other hand, reallocation of water away from the existing establishments in
the agriculture sector is not recommended, due to the negative socio-economic
impact that might have on the inhabitants. A paradigm shift is needed to take
the tough and wise decisions, and to get into innovative solutions at the
technological, institutional, financial, and legislative levels. Bridging the
supply-demand gap and water demand management and keeping water conservation is
a priority. Among the viable solutions are expansion in nonconventional water
resources such as treated wastewater, cheap desalination, introducing models of
public–private partnerships, and modifying the legislations that govern the way
water is currently being managed to adapt to a more water-efficient and
competitive Egypt by the year 2037.
The existing and recommended water policies in
Egypt are prohibiting the disposal of inappropriately treated or untreated
wastewater into agriculture drains. This requires actions to raise the level of
wastewater collection and treatment. The agricultural water quality improvement
and safe reuse of the treated domestic as well as industrial wastewater should
be enforced to maintain the sustainable development efforts of Egypt. The
modification of the Egyptian Code for treated wastewater reuse (ECP 501/2015)
is necessary to allow the use of treated wastewater for irrigating appropriate
agricultural crops according to the level of treatment and the type of crop
need to be embraced and fully implemented. This will contribute not only to
food production but also to the improvement of water quality and the
environment. Water security measures on medium- to long-term should include
serious cooperation with the Nile basin countries to realize concrete win-win
projects, such as those which provide more yield to the Nile waters (e.g.,
South Sudan), more hydropower (e.g., D.R. Congo), and more food for all (e.g.,
The Sudan), without affecting the existing water uses in the downstream countries,
particularly Egypt.
There is a possibility that reuse of
agricultural drainage water alone cannot fulfil the increasing demand for
agriculture. In satisfying the growing water demands in agricultural and
industrial sectors, treated wastewater reuse could provide the perfect and may
be the only practical solution for filling the gap in the future water needs,
yet; that still faces challenges to achieve food security in Egypt. The
formulation and implementation of a sustainable water policy in Egypt in the
future should consider that result in order to
properly match the limited freshwater supply by the developed alternatives of
the nonconventional water resources.
Currently, the strong
monitoring, enforcement systems and raising the public awareness in the entire
Egypt need strengthening to reduce water losses. Proper water accounting
systems are also needed in all sectors. Water users’ associations need to be
legally recognized and given an official role and mandate. The private sector’s
role in the water sector needs to be clearly defined, motivated and legally
accepted. Continuous capacity building programs and investment in human
resources in the water sector are crucial. In addition, some sectoral policy
actions are recommended as follows:
·
Industrial facilities to be enforced to install their
own treatment facilities, and the disposals into the waterways to be strictly
monitored for abiding by the water quality standards.
·
All primary WWTPs to be upgraded to secondary
treatment level by 2030.
·
Nile Delta and Valley governorates’ WWT small and
local plants/stations to dispose secondary treated wastewater into the
agriculture drains and reuse downstream through agricultural drainage mixing
pumping stations.
·
Desert-front and agricultural-expansion governorates
to allocate future treated wastewater directly to desert expansion land
reclamation.
·
Maintain existing wood forests’ production without
further expansion and direct future treated wastewater to agriculture expansion
areas to satisfy the increasing agricultural water demands.
·
Existing tertiary treatment levels to be maintained
through 2030 without further expansion in tertiary treatment at government
expense.
·
Empowering the funder role of the private sector, as
the beneficiary in the whole process of wastewater treatment and reuse.
·
The
Egyptian WWT reuse code (ECP 501/2015) is more flexible than the old laws, yet
the health safeguards of the humans and environment remain strictly met. Yet, modifying the ECP 501/2015 is
necessary to allow for expansion
in permissible agriculture crops cultivation on treated wastewater according to
international standards (e.g., new WHO guidelines).
5. Conclusion and recommendations
The
international and national state-of-the-art water policies experiences
concerning the reuse of agricultural drainage water for irrigation purposes,
and how this is being affected by the mega water projects are reviewed and
discussed. As stated in the Egyptian NWRP2037, there is an increasing rate of
implementing the national water management and development projects such as
on-farm water management, installing modern irrigation systems, water saving,
canal lining, and wastewater treatment projects. In addition, the Egyptian
Water Resources Law, and the Egyptian Code for Treated Wastewater Reuse, with its enforcement bylaws are being
implemented through strict safeguards toward
healthy and efficient implementation in Egypt. Those good practices aim at achieving the
sustainable development and environmental quality.
The research question:
whether Egypt shall have enough agricultural drainage water quantities -as a
key nonconventional water resource- to contribute to narrowing the water
supply-demand gap or not is examined. The impacts of the following were
reviewed and discussed: i) implementing the national
irrigation improvement projects on the agricultural drainage water rates; ii)
providing sanitation utilities service as well as constructing sewerage
networks in villages and rural areas on the water quantity and quality of the
agricultural drainage systems; 3) constructing mega wastewater treatment plants
on the availability of agricultural drainage water for reuse in the Nile Delta;
iv) water and soil salinity in the Nile
Delta regions; and v) seawater intrusion phenomenon in the Northern Delta
lands.
It was interpreted that
impact of the national water saving and irrigation improvement projects jointly
with the expansion in desert
land reclamation is inversely proportional to the resulting amount of
agricultural drainage water in the old lands of Egypt. Based on the literature
review accomplished, it is assumed that expansion in land reclamation in the
Nile Delta fringes and desert as well as irrigation improvement projects could
cause reduction in the available agricultural drainage amount by about 4.2
billion m3/year. The actual percentage of that reduction in
drainage water is the question
which needs further applied research to answer. On the other hand, the
extraction of large amount of agricultural drainage water mixed with raw wastewater
for treatment purposes in the northern parts of the three Nile Delta regions (totalling
about 5.1 billion m3/year) shall reduce the available local drainage
water for reuse in those mentioned areas. This might be compensated with the
reuse of treated wastewater from the new small and local wastewater treatment
plants spread in those areas.
Accordingly, caution should be taken while projecting the available
agricultural drainage water for reuse in Egypt, as stated in the NWRP 2037.
Most likely, the reuse of agricultural drainage water quantities in the Nile
Delta regions included in the NWRP2037 need to be lowered due to the newly constructed (or under
construction) mega water projects as well as the expansion in “Hayah Karima” national program. On the other hand, the
quantities of treated wastewater all-over Egypt shall increase gradually
compensating and may be exceeding the projected amounts of drainage water reuse
as stated in the NWRP2037.
The efficient
water management in Egypt can increase the quantity and improve the quality of
available water for its people and for future economic growth. This can be
achieved through the adoption and application of a group of water policies
including on-farm water management, water saving, canal lining, expanding the
safe use of nonconventional water resources especially treated wastewater for
agriculture, and desalinated water for drinking purposes, implementing the
fit-for-use water allocation approach and the swap (trade-offs) concept among
the competing sectors and based on the geographic location, enforcing a strong water
accounting and monitoring systems and
joint development of new Nile water resources in cooperation with the Nile
basin countries, especially South Sudan, D.R. Congo and The Sudan.
The following water policy considerations of a number
of unresolved questions are recommended toward the realization of Egypt
Vision 2030:
·
Reviewing the water and salt balance of the old lands
in the Nile Delta for estimating the future available drainage water state, for
proper water reuse (drainage and treated wastewater) policies in agriculture in
Egypt.
·
Monitoring and analysing the operation of a number of pilot agriculture areas irrigated with reused
water (containing teared wastewater) for determining the changes in crop
productivity, soil salinity and water quality of the receiving systems, before
setting new agricultural water reuse policies in Egypt.
·
Developing an operational and institutional roadmap to
allow for more flexibility in treated wastewater reuse covering the entire
Egypt using the trade-offs (swap) approach among the competing sectors.
·
Developing a realistic “National Strategy for
Wastewater Reuse” and a “National
Integrated Water Resources Management (IWRM) Plan” in Egypt.
·
Modifying the Egyptian Code for Treated Wastewater
Reuse (ECP 501/2015), to allow the usage of secondary and
tertiary treated wastewater for irrigating edible crops, taking into
consideration the due human health and environmental safeguards.
CONFLICT OF INTERESTS
None.
ACKNOWLEDGMENTS
The author would like to express his sincere appreciation to all experts and staff of the Drainage Research Institute for their technical support and encouragement. A vote of thanks and gratitude are due to the Director of DRI, Prof. Hussien El-Gammal for his enlightening remarks and advice, and for the NWRC’s Scientific Committee members for their wisdom and useful guidance.
REFERENCES
Abdeldayem, S. (2022). Agricultural Drainage Water Treatment Technologies for Sustainable Reuse, Desert Research Center, Egypt.
Abdel-Shafy, H., and Mansour, M.S.M. (2013). Overview on Water Reuse in Egypt: Present and Future, Waterbiotech, Sustainable Sanitation Practice Journal.
AbuZeid, K. (2011). Water Resources Planning for Egypt in 2050, A Workshop for Water Resources Plans for Egypt in 2050, Ministry of Water Resources and Irrigation, Aswan, Egypt.
AbuZeid, K. (2017a). Potential Impacts of Grand Ethiopian Renaissance Dam on Nile Water Availability for Egypt and Sudan. 4th Arab Water Forum Organized by the Arab Water Council, Cairo, Egypt.
AbuZeid, K. (2017b). Chapter 7 : The Water, Energy, and Food Security Nexus in the Arab Region, Research and Development to Bridge the Knowledge gap. In Amer K., et al. (Eds.), Water Security in a New World, Springer. https://doi.org/10.1007/978-3-319-48408-2_7.
AbuZeid, K. (2017c). A 2030 Strategic Vision for Wastewater Reuse in Egypt, Arab Water Council Journal, 8(1).
AbuZeid, K. (2019). Egypt Competitiveness Report, Water Chapter, Center for Competitiveness, Egypt.
AbuZeid, K., and Elrawady, M. (2014). The 2030 Strategic Vision for Treated Wastewater Reuse in Egypt, Water Resources Management Program, CEDARE.
AbuZeid, K., and Wagdy, A. (2019). 3rd State of the Water Report for the Arab Region - 2015. Water Resources Management Program, Centre for Environment and Development for the Arab Region and Europe (Cedare) and Arab Water Council (AWC).
Amer, M. H., and Ridder, N. A. (2016). Land Drainage in Egypt (A Fundamental Reference Book), 5th Edition (1989), Drainage Research Institute, National Water Research Center, Cairo, Egypt.
Angelakis A. N., and Gikas, P. (2014). Water Reuse : Overview of Current Practices and Trends in the World with Emphasis in Eu, Water Utility Journal. E.W. Publications, 8, 67-78.
CAPMAS (Central Agency for Public Mobilization and Statistics) (2017). Egypt Census Report 2017, Capmas, Egypt.
CAPMAS (Central Agency for Public Mobilization and Statistics) (2021). The Population of Egypt.
DRI (Drainage Research Institute) (2016). Technical Report No. 86 - Year Book (2015-2016) Entitled : Drainage Water Status in the Nile Delta, Egypt, Cited in Irrigation Efficiency and the Nile Delta Water Balance, IWMI.
DRI (Drainage Research Institute) (2022). Database of the Technical Reports No. (87 To 92) – Year Books Series Entitled : Drainage Water Status in the Nile Delta, Dri, Ministry of Water Resources and Irrigation, Egypt.
EBRD (European Bank for Reconstruction & Development) (2021). Depollution Project Drain Rehabilitation Component, Consultant Services for Kitchener Drain, Revised Inception Report, Mwri, Egypt.
Engelen, J., Verkaik, J., King, J., Nofal, E. R., Bierkens, M. F. P., and Essink, G. H. P. (2019). A Three-Dimensional Palaeo Hydrogeological Reconstruction of the Groundwater Salinity Distribution in the Nile Delta Aquifer, Hydrology and Earth System Sciences, chapter 23, 5175–5198. https://doi.org/10.5194/hess-23-5175-2019.
FAO (Food and Agriculture Organization of the United Nations) (2021). Updating the Sustainable Agricultural Development Strategy 2030 And Preparing a Medium-Term Plan of Action, UNFAO Project # TCP/EGY/3701, CB6249EN/1/08.21.
FAO (UN Food and Agriculture Organization) (2000). Wastewater Reuse for Irrigation Guidelines, FAO, in Cooperation with CEDARE, UNESCO, ESCWA, and WHO.
FAO (UN Food and Agriculture Organization) (2019). Guidelines on Irrigation Investment Projects, License : CC BY-NC-SA 3.0 IGO, ISBN 978-92-5-131131-8.
GWP (Global Water Partnership) (2020). Global Water Partnership Strategy Towards 2020 - A Water Secure World.
HCWW (Holding Company for Water Supply and Wastewater) (2014). Small-Scale Sanitation in the Nile Delta : Baseline Data and Current Practices, Eds: Philippe Reymond, et al, 2nd edition, August 2014, ESRISS, Ministry of Housing, Utilities and Urban Development (MHUUD), Cairo, Egypt.
Kassim, Y., Mahmoud, M., Kurdi, S., and Breisinger, C. (2018). An Agricultural Policy, Review of Egypt, First Steps Towards a New Strategy, The Ifpri Egypt Strategy Support Program (Egssp), Regional Program | Working Paper 11 | August 2018, The IFPRI Egypt Strategy Support Program (EgSSP).
Khairy, M. W., and Abdel Ghany, M. B. (2021). Sustainable Management of Treated Wastewater, the New El-Mahsama Wastewater Treatment Plant in Sinai. Journal of Environmental Treatment Techniques, 9(4), 804-814. https://doi.org/10.47277/JETT/9(4)814.
Khairy, W. M., El-Ashmawy, N., and Ragab, Nofal E.R. (2020). Analyzing the evolution of environmental impacts due to fish farms expansion - a pilot study in The Northern Nile Delta. International Journal of Engineering Research & Technology (IJERT), 9(8). https://doi.org/10.17577/IJERTV9IS080279.
Kumar, P., and Sharma, P. K. (2020). Soil salinity and food security in India, Frontiers Sustainable Food Systems. https://doi.org/10.3389/fsufs.2020.533781.
Larsen, B. (2019). Arab Republic of Egypt - Cost of Environmental Degradation: Air And Water Pollution. Open Knowledge Repository, World Bank, Washington, DC. © World Bank, License : CC BY 3.0 IGO.
Maftouh, A., El Fatni, O., Fayiah, M. Liew, R. K., Lam, S. S., Bahaj, and Butt, M. H. (2022). The Application of Water–Energy Nexus in the Middle East and North Africa (Mena) Region : A Structured Review. Applied Water Science, 12, 83. https://doi.org/10.1007/s13201-022-01613-7.
MHUUC (Ministry of Housing, Utilities and Urban Communities) (2015). Egyptian Code of Practice for the Reuse of Treated Wastewater for Agricultural Purposes (Ecp 501/2015), Holding Company for Water Supply and Wastewater (HCWW), Cairo, Egypt.
MPED (Ministry of Planning and Economic Development) (2016). Egypt’s Vision 2030, Final Version on the Water Resources Sector.
MWRI (Ministry of Water Resources and Irrigation) (2018). National Water Resources Plan (NWRP) - Water Security for all (2017 – 2030 - 2037), Egypt.
MWRI (Ministry of Water Resources and Irrigation) (2022). The National Project for Reclaiming 1.5 Million Feddans in the Desert of Egypt.
NSDMWR (National Strategy for Development and Management of Water Resources) (2019). Ministry of Water Resources and Irrigation of Egypt.
NWRC (National Water Research Center) (2008). National Water Quality and Availability Management, Report No. DR-TE-0812-016-FN, Egypt.
Polyakov Max (2021). Agriculture, Soil Salinization Causes and How to Prevent and Manage It, Earth Observatory System.
Rachele, R. (2019). Irrigation in EU Agriculture and Briefing, European Parliamentary Research Service (EPRS), PE 644.216, the 172nd Seminar of the European Association of Agricultural Economists, Brussels.
ReWater Project (2020). 3rd National Learning Alliance in Egypt, Consultation Workshop on Egypt Wastewater and Water Reuse 2030 Targets, Draft Factual Report.
Rodriguez, D. J., Serrano, H. A., Delgado, A., Nolasco, D., Saltiel, G. (2020). From Waste to Resource : Shifting Paradigms for Smarter Wastewater Interventions in Latin America and the Caribbean. World Bank, Washington, DC.
Stefan, E., Vicente, C., and Fernandes, S. (2020). Water Availability and Water Reuse: A New Approach for Water Resources Management, Federal University of Paraná and UNESCO i-WSSM (Eds), UNESCO publishing, Paris.
UNWWAP (United Nations World Water Assessment Programme) (2017). Wastewater : The Untapped Resource Report, Paris, UNESCO.
WHO (World Health Organization) (2006). Guidelines for the Safe Use of Wastewater, Excreta and Greywater. NLM Classification : WA 675, 2.
WRDM (Water Resources Development and Management) (2018). Global Water Security-Lessons Learnt and Long-Term Implications, World Water Council (eBook), Springer Nature Singapore Ltd. https://doi.org/10.1007/978-981-10-7913-9.
Zhao, L., Heng, T., Yang, L., Xu, X., Feng, Y. (2021). Study on the Farmland Improvement Effect of Drainage Measures Under Film Mulch with Drip Irrigation in Saline–Alkali Land in Arid Areas. Sustainability. 13, 4159. https://doi.org/10.3390/su13084159.
This work is licensed under a: Creative Commons Attribution 4.0 International License
© Granthaalayah 2014-2022. All Rights Reserved.
