STEEL SEMIRIGID STRUCTURES ENERGY STATE UNDER SEISMIC ACTIONS



Moldovan Silviu-Marius ¹



¹ PhD Student, Civil Engineering Department, Faculty of Constructions, Technical University of Cluj-Napoca, Cluj-Napoca, Romania



1. INTRODUCTION

Since the semirigidity of skeleton structures has been formally accepted as a new beam-to-column connecting state European Committee For Standardization CEN. (1992), American Institute of Steel Construction, Inc. (1989). their response to seismic action focused on traditional components as storey lateral displacements, their static state - mainly expressed by the bending moment diagrams and the real behaviour of their semirigid connections – expressed via the  relation Frye and Morris (1975), Kishi and Chen (1990), Chen and Lui (1991). Little has been done in regarding the semirigid connections not just in terms of their semirigid behaviour but, as structural zones where induced seismic energy could be dissipated. Traditional seismic analysis of structures still focuses on their mechanical state viewed as made up of the static-equilibrium state and kinematic compatibility state. Recently classical mechanical state has been enlarged by including energy state as a new component. While the mechanical parameters belonging to static and kinematic states (forces, displacements, strains, stresses) are vectorial entities, the parameters defining energy states are scalar entities which express synthetically the structural behaviour under seismic loads. It has to be emphasized that important mechanical features of a Civil Engineering type structure can only be involved in seismic analysis via energy. Such is the damping phenomenon that cannot be separated by its dual partner – the vibratory motion seismically induced.

The energy includes all structural aspects (seismic action, elastic state, inertia state, damping state) and associates them via mathematical relations that allow to track in time and space the development and evolution of the mechanical state of the structure.  By the virtue of its scalar nature, the energy (either through its induced energy component  or through its dissipated energy component ) is a cumulative parameter capable to express not just the present (that can, also, be expressed by the traditional mechanical state) but, also, the past of the mechanical state. The energy state of a structure acted upon by an earthquake is not necessarily a totally new concept. The concept of energy state as a component of (classical) mechanical state has been - in the last decades - associated to the seismic action and response Akbas et al. (2001), Ordaz et al. (2003). Inclusion in the structural analyses - allowed for by energy formulation - of masses set in motion by the dynamic action of earthquake, of their induced velocities and accelerations, widens beneficially the frame of structural analysis and, in the same time, allows for a direct assessment of dynamic response un-affected by substitutive / corrective coefficients.

The intended contribution focuses on energy state of semirigid multi-storey steel structures acted upon by earthquakes. Energy state is defined by its components: seismically induced energy , kinetic energy  , strain energy  and damping energy . Similarly, to equilibrium equations associated to static state, to compatibility equations associated to kinematic state, energy state is governed by the energy balance equation:



                                                                                                                   (1)



The proposed contribution focuses on the contribution to dissipated energy component of semirigid connections of the structures in several cases of connecting solutions.



2. METHOD

The computation of energy components of MDOF dynamic systems Figure 1 requires the introduction of well-known vectors and matrices of traditional structural analysis:















Figure 1



Figure 1 MDOF Dynamic System



 u(nx1) - vector of DOF’s (lateral storey displacements)

 u ̇(nx1) - vector of velocities of masses

 u ̈(nx1) - vector of accelerations

 M(nxn) - inertial matrix

 C(nxn) - damping matrix

 R(nxn) - stiffness matrix

 u ̈_g - ground acceleration

Computation of energy components follows the literature dealing with energy of seismically acted upon structures Uang and Bertero (1990), Uang and Bertero (1988), Manfredi (2001). Therefore, the relations stated below govern the computation of energy components and are assessed by numerical integration.

           The relative seismic input energy:



·                                                                                                            (2)



           The relative kinetic energy:



·                                                                                                                        (3)



           The dissipated (via damping) energy:



·                                                                                                                      (4)



           The strain energy:



·                                                                                                                   (5)



The specificity of semirigid structures is emphasized in the way the dissipated energy is generated. While in the case of rigidly connected structures,  component is associated to the inherent damping properties of the structure itself, in the case of semirigidly connected structures the induce seismic energy is dissipated by both the structure and the semirigid connections. The contribution of semirigid connections to the dissipated energy component is – in fact – the main objective of the contribution. Therefore,    component is splitted into    – associated to the structure – and    – associated exclusively to the semirgid connections.



                                                                                                          (6)



Regarding   component, it is generated during relative rotation component and its computation is based on the equivalence of elementary work  performed by bending moment   of each j connection through elementary relative rotation  :



                                                                                                             (7)

Where



                                                                                                                     (8)



It leads to a total amount of dissipated energy via semirigid connections:



                                                                                                    (9)



Following a structural analysis program devoted to semirigid multi-storey steel structures, Seismostruct Seismosoft. (2022).  and  are computed as functions of time. Integrating process (9) is computed by summing up the elementary quantities associated to an elementary time step

dt = 0.02 sec.



3. STRUCTURES, SEMIRIGID CONNECTIONS, SEISMIC ACTIONS

In what follows, computation of dissipated energy    – and implicitly of its  and   components – is associated to a 4 storey 3 span semirigid steel (of S355 class) structure Figure 2.

Figure 2

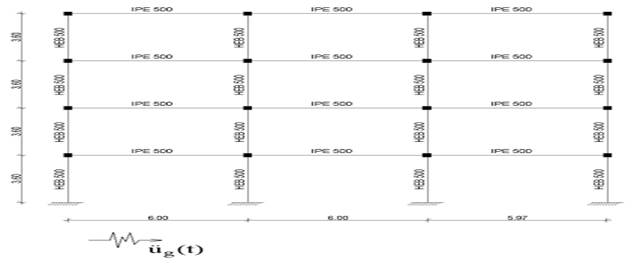

Figure 2 Four Storey Frame



The semirigid connections are of top – and seat- angle with double web-angles (abbreviated as TSDW, from here on) type Figure 3.

Figure 3

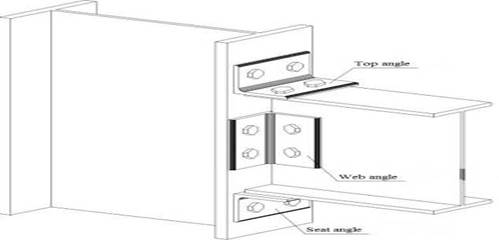

Figure 3 TSDW Semirigid Connection



The Kishi-Chen (three parameter) power model Kishi and Chen (1990). of the M-θ_r curve is adopted for the practical modelling of the connections, as described in Chen and Kim (1997).

The mechanical and geometrical features of semirigid connections are presented in Table 1 and Table 2, respectively.

Table 1

Table 1 Mechanical Characteristics of the TSDW Semirigid Connections
Connection	Node TSDW1	Node TSDW2	Node TSDW3
(kNm/rad)	102200	205500	302200
(kNm)	331.615	433.902	461.318
(-)	1.151	0.891	0.827
- initial connection stiffness  - ultimate connection moment capacity  – shape parameter



Table 2

Table 2 Geometrical Characteristics of the TSDW Semirigid Connections
Connection	Node TSDW1	Node TSDW2	Node TSDW3
; (mm)	14	16	16
(mm)	9	10	10
; (mm)	200	200	200
(mm)	400	400	400
	M20	M20	M24
(mm)         (mm(mm)	68	65	63
(mm)	60	54	52
, - thickness and length of top angle wing , - thickness and length of seat angle wing ,  - thickness and length of web angle wing - distance between the center of the bolt hole and the top angle’s heel in the wing adjacent to the column face - distance between the center of the bolt hole and the web angle’s heel



Seismic actions are introduced via recorded ground accelerations of El Centro 1940 NS Figure 4 and Vrancea 1977 NS Figure 5 earthquakes, scaled down to peak values of 0.20g and 0.25g, respectively.

Figure 4

Figure 4 El Centro 1940 NS – Ground Acceleration



Figure 5

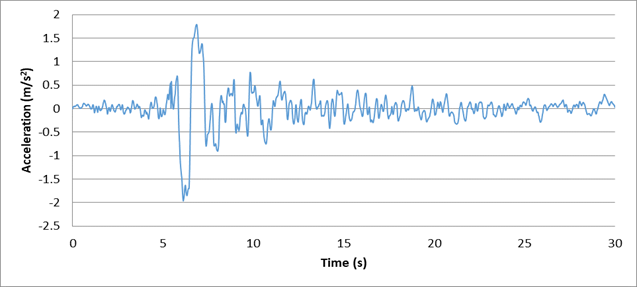

Figure 5 Vrancea 1977 NS – Ground Acceleration



4. RESULTS AND DISCUSSION

Computed results include seismically induced energy , dissipated energy by the structure itself , dissipated energy by the semirigid connections   and the total dissipated energy . The results are presented graphically in a comparative manner Figure 6, Figure 7, Figure 8, Figure 9,Figure 10,Figure 11,Figure 12,Figure 13,Figure 14,Figure 15, Figure 16,Figure 17,Figure 18,Figure 19,Figure 20. The fraction of critical damping is considered ζ= 5%. The presented results are excerpts from a larger study regarding the capability of semirigid steel structures to dissipate seismically induced energy.

Figure 6

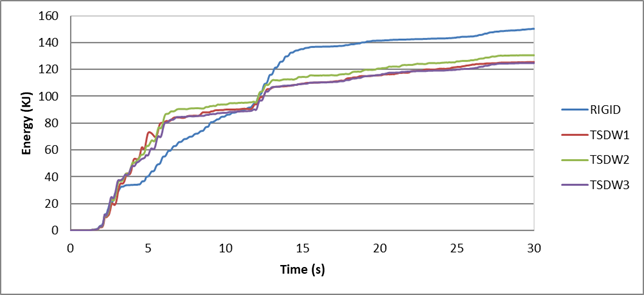

Figure 6 Input Energy – El Centro 1940 NS



Figure 7

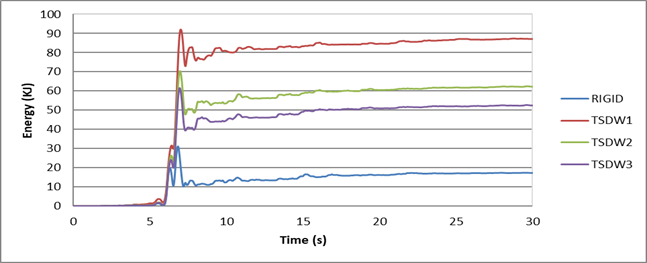

Figure 7 Input Energy – Vrancea 1977 NS



Figure 8



Figure 8 Dissipated energy  – El Centro 40 NS



Figure 9

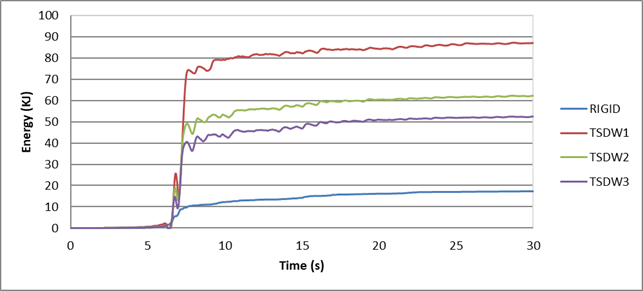

Figure 9 Dissipated Energy  – Vrancea 1977 NS



Figure 10

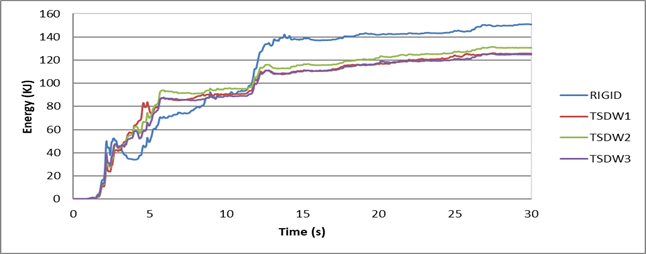

Figure 10 Total Dissipated Energy  – El Centro 40 NS



Figure 11



Figure 11 Total Dissipated Energy – Vrancea 1977 NS



Figure 12

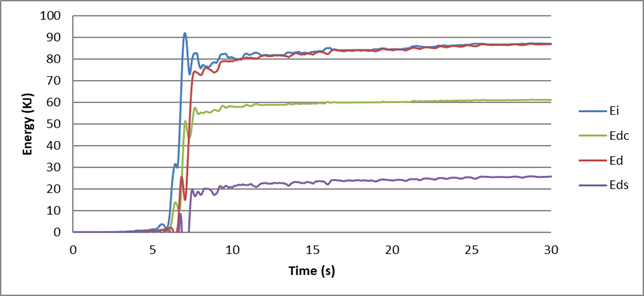

Figure 12 Energy Components – Vrancea 1977 NS – TSDW1



Figure 13

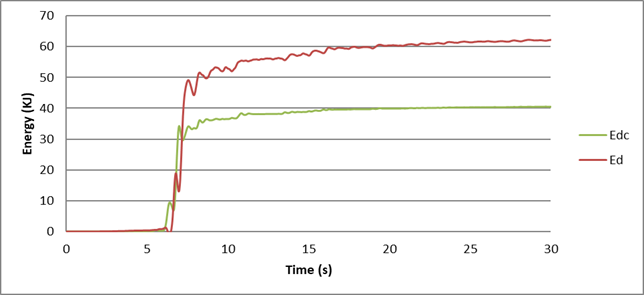

Figure 13 Energy Components  And  – Vrancea 1977 NS – TSDW1



Figure 14

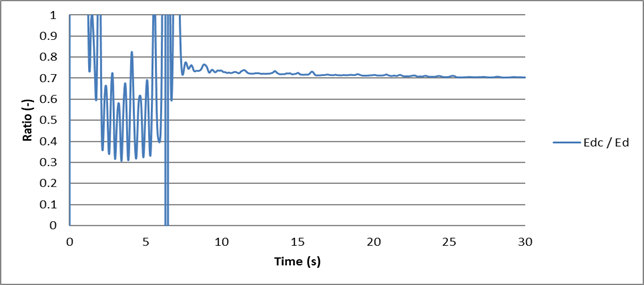

Figure 14 Contribution of  To – Vrancea 1977 NS – TSDW1



Figure 15



Figure 15 Energy Components – Vrancea 1977 NS – TSDW2



Figure 16



Figure 16 Energy Components   And  – Vrancea 1977 NS – TSDW2



Figure 17



Figure 17 Contribution of  To  – Vrancea 1977 NS – TSDW2



Figure 18



Figure 18 Energy Components – El Centro 40 NS – TSDW3



Figure 19

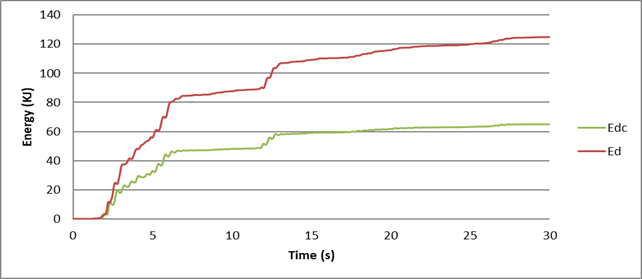

Figure 19 Energy Components And  – El Centro 40 NS – TSDW3



Figure 20

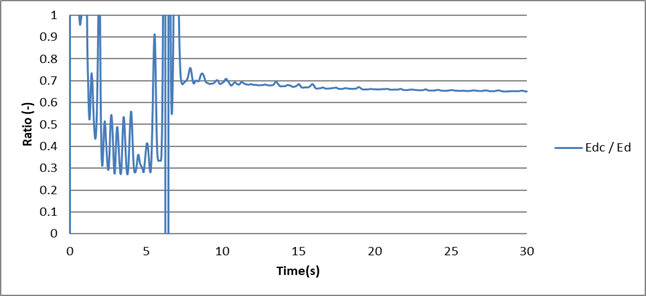

Figure 20 Contribution of To  – El Centro 40 NS – TSDW3



The two components of the dissipated energy are separately emphasized for each case of mechanical make-up semirigid beam-to-column connections. Clear remarks regarding the amount of dissipated energy by the structure itself and by the semirigid connections are possible from the comparative graphical manner the results are presented.

As it can be seen from the results, the dissipated energy via the semirigid connections E_dc accounts for an important percent (50-70%) of the total dissipated energy .



5. CONCLUSIONS

The proposed objective has been accomplished by computed energy parameters associated to dissipation capability of semirigid connections. The first conclusion to presented results is that semirigidity of beam-to-column connections is capable of dissipating seismically induced energy.

A second conclusion can be drawn referring to the amount of dissipated energy by semirigid connections  as part of the total dissipated energy . It may be concluded that this part depends to a large extent on both seismic action and rigidity of the connection. Therefore, in the design activity of semirigid multi-storey steel structures, the specificity of semirigid connections should be closely associated to the specificity of seismic actions.



CONFLICT OF INTERESTS

None.



ACKNOWLEDGMENTS

None.



REFERENCES

Akbas, B., Shen, J., and Hao, H. (2001). Energy Approach in Performance-Based Seismic Design of Steel Moment Resisting Frames For Basic Safety Objective, The Structural Design of Tall Buildings 10(3), 193-217. https://doi.org/10.1002/tal.172

American Institute of Steel Construction, Inc. (1989). Specification for Structural Steel Buildings, Allowable Stress Design And Plastic Design, Chicago, IL, USA.

Chen, W.F., Kim, S.E. (1997). LRFD Steel Design Using Advanced Analysis, Analysis of Semi-Rigid Frames, CRC Press, Boca Raton, New York, NY, USA, 122 – 152. https://doi.org/10.5860/choice.35-0297

Chen, W.F., Lui, E.M. (1991). Stability Design of Steel Frames, CRC Press, Boca Raton, Florida, USA, 380.

European Committee for Standardization CEN. (1992). Eurocode 3 : Design of Steel Structures, Part 1.1. Brussels, Belgium.

Frye, M.J., Morris, G.A. (1975). Analysis of Flexible Connected Steel Frames, Canadian Journal of Civil Engineers, 2(3), 280-291. https://doi.org/10.1139/l75-026

Kishi, N., Chen, W.F. (1990). Moment-Rotation Relations of Semi-Rigid Connections With Angles, Journal of Structural Engineering, ASCE, 116(7), 1813-1834. https://doi.org/10.1061/(ASCE)0733-9445(1990)116:7(1813)

Manfredi, G. (2001). Evaluation of Seismic Energy Demand, Earth. Eng. Struct. Dyn., Earthquake Engineering and Structural Dynamics 30, 485 – 499.

Ordaz, M., Huerta, B., and Reinoso, E. (2003). Exact Computation of Input‐Energy Spectra From Fourier Amplitude Spectra, Earthquake Engineering and Structural Dynamics, 32(4), 597-605. https://doi.org/10.1002/eqe.240

Seismosoft. (2022). Seismostruct 2022 – A Computer Program for Static and Dynamic Nonlinear Analysis of Framed Structures.

Uang, C. M., Bertero, V. V. (1990). Evaluation of Seismic Energy in Structures, Earthquake Engineering and Structural Dynamics, 19, 77–90. https://doi.org/10.1002/eqe.4290190108

Uang, C.M., Bertero, V.V. (1988). Use of Energy as a Design Criterion in Earthquake-Resistant Design. Earthquake Engineering Research Center, University of California at Berkeley, Report No. UCB/EERC-88/18.
