EMERGING POLLUTANTS

EP´s include substances such as pharmaceutical compounds and personal care products, pesticides and hormones which have adverse effects on the endocrine system of humans and animals (Ruhí et al., 2016). The number of substances that constitute the EP´s is large and continues to increase with the identification of chemicals that are part of this group (Richardson & Ternes, 2014). However, the list of incidence and risk contribution for most of these pollutants is not yet available. Due to the analytical challenge of monitoring the large number of substances is difficult to predict the effects on human health and other living beings (Damià, 2003). On the other hand, it has been shown that a large amount of EP´s can change the endocrine system as described above, block or interfere with the hormonal function of the body, cause feminization and hermaphroditism, decrease fertility, decrease the efficiency of mating, and even it can increase the incidence of different types of cancer (Clemente et al., 2013). Among the emerging pollutants that usually cause more problems in water treatment, the pharmaceutical products are one of the most used, because of that they are produced at large scale. Various drugs have low metabolization (5-10 %) and low absorption rates in the organisms that consume them, leading to high amounts of drug residuals accumulated in soil or water, causing serious pollution problem (Daughton & Ternes, 1999).

Natural attenuation and conventional treatments are not capable to remove EP´s from waste, surface and drinking water (Huerta et al., 2015). Likewise, these substances do not have any regulation for their disposal. Nowadays, indiscriminate discharges of these are made increasing the aquatic bodies pollution. The EP´s most studied because of the adverse effects to ecosystems are pharmaceutical products, detergents, fragrances, personal care products and illicit drugs (Zacarías et al., 2017). Therefore, it is considered important to know the definition of each type of emerging pollutant, for example:

A pesticide can be defined as any substance or mixture of substances that can prevent, destroy, repel or mitigate any pests such as insects, mites, nematodes, weeds, rats, etc. (Zhang, Jiang, & Ou, 2011). Pest control was practiced as a mechanical approach in 18th century. Before the synthetic pesticides period, natural compounds such as arsenicals and fluorosilicates were used for pest control (Yedla & Dikshit, 2005). The synthetic pesticides period began in 1874, when DDT (Dichlorodiphenyltrichloroethane) was synthesized by the first time. Pesticides are very complex in structure and they are well known for their stable and non-degradable nature in the environment. The utility of pesticides in the world was found in agriculture, grain storage, soil conditioning, public health, and building construction (Yedla et al., 2005). Over the past 50 years, the number of available pesticides, the variety of their applications and the volume of active ingredients used has grown tremendously. It is estimated that more than 1500 chemical pesticides have been produced and up to 8000 individual formulations are available for specific applications (Bansal & Goyal, 2005). The sources of pesticides in the aquatic environment are principally the wastes discharges from pesticide production and formulation industry. Surface and groundwater pollution occurs through pesticide leaching, which has been documented by many researchers (Yedla et al., 2005).

Pharmaceutical compounds are synthetic or natural chemicals found in prescription drugs, free sell and veterinary drugs, as well as containing active ingredients that are designed to cause pharmacological effects and significantly benefit society (, ). Pharmaceutical compounds have been recognized as a dangerous class of organic pollutants due to their extensive use and long-term effects towards the aquatic environment (Ashfaq et al., 2016).

Dyes and pigments are chemical substances or compounds, natural or synthetic, that change the color of another substance or compound when they are applied on it. The use of dyes has been an activity of economic importance since ancient times, likewise the search for new dyes has not ceased over time. The first dyes were natural, obtained from plants, animals and fungi; as far as synthetic dyes are concerned, they are manufactured by technological synthesis, and they emerged in the 19th century with the development of organic chemistry mainly from fossil sources (Cardon, 2010). Most dyes are stable in air and under light; therefore, dyes in wastewater do not respond to ordinary biological or chemical degradation (Hasan, Ahmad, & Hameed, 2008). Dyes affect the photosynthetic capacity of aquatic plants by restricting the penetration of sunlight due to their color (Rane et al., 2014). The structural varieties of dyes can fall into the cationic, non-ionic or anionic types. Among these types, anionic dyes include direct, acidic, and reactive dyes (Mishra & Tripathy, 1993). Acid bright dyes and water-soluble acid dyes are the most problematic dyes, they tend to easily pass-through conventional treatment systems in unaffected way (Willmott, Nelson, & G, 1998). More than 100,000 commercial dyes are known with a production amount of more than 700,000 tons per year worldwide (Sen, Afroze, & Ang, 2011). Acid dyes are soluble in water and appear with acid groups in their molecular structures. Acid dyes can be grouped into three classes including azo, anthraquinone, and triarylmethane. Among these different acid dyes, azo dyes are the main class with a great variety of colors (Kordouli, Bourikas, Lycourghiotis, & Kordulis, 2015).

WATER TREATMENT

EP´s need to be removed from the water to improve the environmental quality, the water treatment methods that are conducted by chemical or biological reactions are known as unit processes. Today, the unit's functions combine to provide multiple levels of treatment and they are referred as preliminary treatment, primary, advanced primary, secondary (without or with nutrient removal), and advanced (or tertiary) treatment (Metcalf & Eddy, 2003) (Fig. 1). Today, various treatment processes are used for the removal of organic molecules from aqueous solutions including: precipitation, ultrafiltration, ion exchange, phytoextraction, electrodialysis, and reverse osmosis. In primary treatment, physical operations are usually carried out by sedimentation to remove floating and sediment substances in wastewater. For advanced primary treatments, chemicals are added to improve suspended and dissolved solids removal. The main physicochemical processes that can be included in the primary treatment are the following: sedimentation, flotation, coagulation-flocculation and filtration (Metcalf et al., 2003).

In secondary water treatment, biological and chemical processes are used to eliminate most of the organic matter, which constitutes a series of important biological processes for the wastewater treatment that usually use microorganisms (bacteria). To eliminate biodegradable organic matter, colloidal and dissolved, as well as the elimination of compounds that contain nutrient elements (N and P) can be used electrocoagulation, bacterial beds, active sludge, green filters, anaerobic digestion and electro-oxidation (Metcalf et al., 2003). In advanced treatment, additional combinations of unit operations and processes are used to remove residual suspended solids, organic matter, and other constituents that are not significantly reduced by conventional secondary treatment such as phosphorus and nitrogen. The advanced processes have properties of biological or physicochemical nature, the unit process is the most used in physicochemical treatments. At the initial stage, coagulation-flocculation and decantation are carried out. Other processes used as tertiary treatments are ion exchange resins, activated carbon adsorption, ultrafiltration, reverse osmosis, electro-disinfection and ceramic membranes (Metcalf et al., 2003); adsorption is the most economical of the aforementioned.

Adsorption is an economical and efficient technology that produces high quality water (Lesmana, Febriana, Soetaredjo, Sunarso, & Ismadji, 2009), it has been considered an effective alternative for wastewater treatment and it has been used for the elimination of hazardous organic and inorganic pollutants present in the effluent (An et al., 2016; An et al., 2016; Kurtan, Amir, Yıldız, & Baykal, 2016; Liu et al., 2016). Adsorption consists in the accumulation of a substance between two phases (liquid-solid and gas-solid), that occurs as a result of unsaturated and unbalanced molecular forces which occur on each solid surface. Thus, when a solid surface is in contact with a liquid or gas, there is an interaction between the fields of forces on the surface with the adsorbate. Depending on the nature of the involved forces, there are two types of adsorption: physical and chemical adsorption. In the case of physical adsorption, the adsorbate is attached to the surface by Van Der Walls forces that are relatively weak, these forces are like the molecular forces of cohesion and participate in the condensation of vapors in liquid. On the other hand, chemistry involves the exchange of electrons between adsorbate molecules and the surface of the adsorbent, resulting in a chemical reaction (Bansal et al., 2005). The molecule that is accumulated or adsorbed on the interface is called adsorbate, and the solid on which adsorption takes place is the adsorbent (, 2002).

In adsorption, molecules or ions are removed from aqueous solution by adsorption on solid surfaces. This process is characterized by having active sites in energy, as well as interaction with solutes in the adjacent aqueous phase due to their specific electronic and spatial properties. Generally, the active sites have different energies, and the surface is energetically heterogeneous. By changing the properties of the liquid phase (pH, concentration, temperature), the adsorbed species are usually released from the surface and transferred back to the liquid phase, a process known as desorption (Eckhard, 2012). Within the sorption processes, some materials are investigated to be efficient in the process; materials can be defined an element that can be transformed, and it is possible to group it, scientifically. A material can be defined as any solid composed of discrete particles that is or will be used to manufacture products that improve living conditions. Its properties are defined by the state of organization of its atoms, which, theoretically, do not change in shape, size and weight when they are processed (Mercier, Zambelli, & Kurz, 2002).

Materials can be generally classified according to their main properties and characteristics: metallic, polymeric and ceramic materials (Smith & Hashemi, 2006).

• Metals: Metallic materials refer to inorganic substances composed mainly of metallic elements such as copper, aluminum, iron, magnesium, nickel, titanium, zinc, tin, lead and alloys such as brass, steel and bronze. However, they can contain non-metallic elements, such as carbon, oxygen and nitrogen. All these materials have characteristic properties, such as brightness and high thermal and electrical conductivity, they are also ductile, and some of them have good magnetic properties (Smith et al., 2006).

• Polymers: The term polymer refers to molecules formed from various building blocks, which are called monomers, these types of blocks are generally linked by covalent bonds. The prefix "poly" from the Greek word "many", while the Greek prefix "mono" means "unique" and refers to a single block. In the synthesis of many polymers, the monomers are linked together in the same way to form a single chain consisting of repeating, covalently connected units. There is no definitive limit on the number of repeating units required to meet the definition of the polymer (Sebastian, Michael, & Oskar, 2017).

• Compounds: It can be defined as the integration of two or more materials to form a new one. In such a way that each component retains its properties, and the resulting component has properties of both materials. They are heterogeneous materials since they have a discrete interface that separates them (Smith et al., 2006). Both the matrix and the charge can be of different nature such as: metallic, inorganic (metallic and non-metallic oxides), organic (polymers) material, among other combinations. This makes it possible to obtain metal-metal, metal-inorganic or inorganic-metal, organic-inorganic or organic-metal compounds (Naganoma & Zagawa, 2002).

• Ceramics: Ceramics are non-metallic inorganic materials, which are formed by metallic and non-metallic elements that are linked primarily by ionic and / or covalent bonds. The chemical compositions of ceramic materials can vary considerably, from simple compounds to mixtures of many complex linked phases (Smith, 2009). In general, ceramic materials can be classified into two groups: traditional ceramic materials and ceramic materials for specific use. Traditional ceramic materials are normally made up of three basic components: clay, silica and feldspar. Examples of traditional ceramics are bricks, ceramics for specific use, are made up of pure or almost pure compounds such as aluminum oxide (Al₂O₃), silicon carbide (SiC), and silicon nitride (Si₃N₄).

ALUMINA

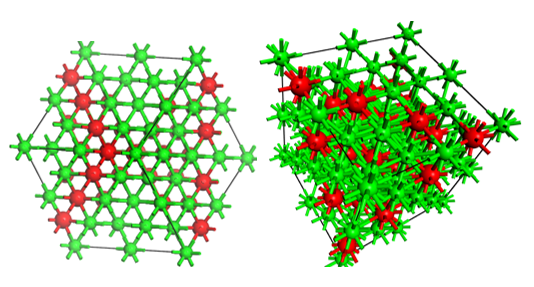

Adsorbents such as alumina are known for their large surface area, high mechanical properties, and good resistivity to thermal degradation. Aluminum oxide or alumina (Al₂O₃) is a solid white ceramic material, it has a molecular weight of 101.96 g/mol, a density of 3.9 g/mL, a melting and boiling point of 2320 and 3600 °C respectively. It is also insoluble in water and partially soluble in ethanol (Sastre, Aza, & Román, 2004). Among its most important properties are the hardness of 18 to 20 GPa, elastic modulus of 300 to 400 GPa, thermal conductivity equal to 30 W/mK, it is an excellent electrical insulator, it has good resistance to thermal fatigue 4-9x10^-6/°C and excellent optical transparency (Ashby & Jones, 2008). Additionally, alumina is chemically stable, it is considered inert, and it does not oxidize or corrode easily or react within biological systems. Its resistance to fracture is low (2-4 MPa m^1/2), to be used it must be compacted with a high density, with an average size close to 4 μm per gram and high purity ≥ 99.5% (Sastre et al., 2004). Alumina (Al₂O₃) is a crystalline ceramic that possesses polymorphism with metastable structures (ω, κ, δ, θ and γ phases) (Boumaza et al., 2009; Khang, Liu-Snyder, Pareta, Lu, & Webster, 2009). Alumina is ceramic with a hexagonal crystal lattice according to Figure 1. The oxygen and aluminum define a hexagonal close packed structure, aluminum cations occupy 2/3 of the octahedral sites in the hcp lattice.

Calcined aluminas are generally classified into three categories according to their chemical composition, as well as their sodium content as total impurities.

First category: Normal calcined alumina

It has a sodium oxide content greater than 0.1 %, and 99-99.5 % of aluminum oxide.

Second category: Low sodium or thermally reactive alumina

It has a sodium oxide content less than 0.1%, and around 99.7% aluminum oxide.

Third Category: High Purity Calcined Alumina

It has an aluminum oxide 99.9% purity, most of these aluminas are manufactured from aluminum salts with high purity (chlorides, sulfates, nitrates, ammonium alum), oxidation of aluminum at high pressure or metallic aluminum (López & Y, 2006).

ALUMINA AS AN ADSORBENT

Due to the properties that alumina possesses, it is used as an adsorbent, Chu in 2019 (Chu et al., 2019) mention that the alumina nanoparticles were manufactured by the solvothermal method, the alumina nanoparticles obtained had sharp peaks with high intensity at 2θ = 38° and 67° indicating high crystallinity of alumina. In its gamma phase, crystalline alumina has XRD peaks at 46° and 61°; as well as infrared spectroscopy bands at 3657.04, 3550.95 and 3622.32 cm⁻¹ for the stretching vibration -OH, the bands obtained at 1031.92, 520.78 and 426.27 cm⁻¹ are corresponding to the Al-O bending vibration of the Al-OH group, finally, the signals between 1000 cm⁻¹, 981.77 cm⁻¹ and 520.78 cm⁻¹ confirmed the bending vibration of the Al-O bond. The particle size is in the range of 30 to 40 nm, the specific surface area was around 221.3 m²/g. The synthesized material with a modification was made with an anionic surfactant (sodium dodecyl sulfate, SDS) where the elimination of the cationic dye, Rhodamine B (RhB) was investigated. The modification of nano-alumina was carried out at a low pH of 4 and 5, with a high ionic strength which significantly increased the removal efficiency of RhB and it was found that the optimal adsorption conditions of contact time, pH and adsorbent doses for RhB removal using SDS-modified nanoalumina (SMNA) were 120 min, at pH 4 and 5 mg/mL, respectively. The removal of RhB using SMNA reached a removal efficiency of 100% (Table 1). After four cycles of adsorbent regeneration, the RhB removal efficiency using SMNA was greater than 86%, reaching an adsorption capacity of 165 mg/g.

Alumina has also been used for the removal of methylene blue, Ebadollahzadeh and Zabihi in 2020 (Ebadollahzadeh & Zabihi, 2020) managed to synthesize magnetic alumina, the XRD results showed that the strongest and sharpest peaks appeared on the pattern of functionalized magnetic gamma-alumina is in 2θ = 15-80°. Bands around 720-931 cm^-1 corresponded to Al-O of gamma-alumina. The band presented at the wavelength of 1633 cm^-1 is related to the carbon-oxygen bond that is assigned to the stretching vibration of C=O in asymmetric COO, due to the presence of functional groups placed when applying EDTA as chemical agent. The weak band at 1400 cm^-1 related to the C-N bond appears poorly only on the alumina adsorbent due to impregnation by EDTA. The bands around 3300-3400 cm^-1 correspond to the symmetric and asymmetric vibrations of the N-H and -OH groups, respectively, which overlap each other. The findings revealed that the experimental data were consistent with the Freundlich model, with the maximum adsorption capacity being 196.08 mg/g for methylene blue. The pseudo-second order kinetics with the highest correlation coefficient indicated a better fit with the adsorption of methylene blue. The regeneration of the magnetic adsorbent was also investigated in the competitive adsorption for six cycles, which showed that the prepared adsorbent can be used for real applications.

Another dye that has been removed with alumina is Orange G, Banerjee and collaborators in 2017 (Banerjee, Dubey, Gautam, Chattopadhyaya, & Sharma, 2017) studied the synthesis and application of alumina nanoparticles synthetizing by the sol gel technique and it was found that the particle size was in the range of 30-35 nm this for the removal of the aforementioned dye from aqueous solutions. The properties of the synthesized nanoparticles show a prominent band at 3457 cm^-1 which is attributed to the stretching vibration of the -OH group of the Al-OH structure and another band at 1629 cm^-1, which is attributed to the physical adsorption of water molecules. The presence of a broad pattern that extends in a range of 400-1000 cm^-1 corroborates the formation of alumina in the gamma phase. The absorption bands at 911, 804, and 637 cm^-1 correspond to asymmetric stretch, symmetric stretch, and bending vibration of the Al-O-Al bond, respectively. After the sorption of the dye, it can be clearly noticed there was a slight change in the positions of the bands. It was found that the band of maximum intensity at 3457 cm^-1 was slightly reduced and a small change in the position of the peak was observed in the absorption band at 1000-400 cm^-1. This indicates that the dye ions most likely interacted with the Al-OH and Al-O groups present on the adsorbent surface. The four characteristic reflections at 2θ = 32, 37.4, 45.2 and 67.5° with the corresponding reflection planes of 220, 311, 400 and 440 reveal the formation of the gamma species. The TEM image shows that the alumina particles were in an agglomerated state, furthermore, the image also showed that the particle sizes were in a nanorange with the majority being 30-40 nm. The micrograph also verified that the particle size existed in the nanoscale range. The estimated specific surface area was found to be greater than 125 m²/g. The pore sizes, approximately 90% were in the mesoporous range (diameters 2-50 nm) and the remainder of 10% were in the microporous range (<2 nm). The pH_ZPC of the alumina nanoparticles was found to be 7.4. Likewise, the effect of several important parameters on the elimination of the dye was examined and it was found that the adsorption was highly dependent on pH and obtaining an elimination of 98.4%. The kinetic results showed that the sorption process was described by a pseudo second order model. The mechanism of the adsorption process was also interpreted with the help of diffusion models and the results showed that external diffusion governed the general sorption process. Langmuir's model yielded a good fit for the experimental data with high adsorption capacity (93.3 mg/g at 303°K). The evaluated thermodynamic parameters ∆G °, ∆H ° and ∆S °, proposed that the adsorption was spontaneous, feasible and exothermic under the investigated conditions. Desorption experiments confirmed that the spent adsorbent can be successfully regenerated and can be efficiently reused for up to four successive cycles with almost the same sorption capacity, reducing the cost of treatment. The adsorption performance of alumina nanoparticles was also tested using real wastewater and the results indicated that nano-alumina is also competent for treating multisolute systems.

Wawrzkiewicz and collaborators in 2015 (Wawrzkiewicz, Wiśniewska, Gun'ko, & Zarko, 2015) mention that one cause of colorants being found in effluents is due to the fact that the textile, paper, plastic, leather, food and cosmetic industries do not give adequate treatment to their wastewater, which is why they investigated removal by adsorption of acidic (CI Acid Orange 7, AO7), reactive (CI Reactive Black 5, RB5) and direct (CI Direct Blue 71, DB71) dyes from aqueous solutions and wastewater using a silica-alumina oxide mixture composed of 4% SiO₂ and 96% Al₂O₃ (SA96). The kinetic studies revealed that with the increase of the initial dye concentration from 10 to 30 mg/L and the contact time from 1 to 240 min, the sorption capacities (qt) increased and the adsorption equilibrium was observed for AO7 and RB5 after 180 min and 240 min for DB71. The experimental data fit better to the Langmuir isotherm model than to the Freundlich one and the monolayer sorption capacities (q₀) were found to be 41.4, 47.1 and 49.2 mg/g for AO7, RB5 and DB71, respectively.

Just as alumina has been used for the removal of colorants, it has also been used for the removal of pesticides such as lindane, which is a persistent and toxic pesticide in water, Derbalah and collaborators in 2015 (Derbalah, El-Safty, Shenashen, & Ghany, 2015) carried out a study of manufactured mesoporous alumina nanoparticles (MA-NP) with a large surface to volume ratio, surface active sites, and open channel pores to trap/adsorb molecules such as lindane. The micrographs show the formation of spherical nanoparticles with a uniform particle size (100-250 nm). HRTEM images reveal mesoporous worm-like structures connected to large regions of the alumina nanoparticle domains. The TEM image illustrates a spherical morphology, and agglomeration of the nanoparticles produces gaps between particles without a discernible ordered pore arrangement. The SAXS patterns show two wide reflection scattering peaks within the range of 1.4 <q <4.2; these peaks are characteristic of a hexagonal mesostructure as indicated by the characteristics of the main peaks for hexagonal reflections (100) and (110). The results showed that the maximum adsorption capacity of lindane is 25.54 mg/g at 20ºC. The material also exhibits high adsorption efficiency (> 80%) of lindane after 20 cycles, resulting in effective regeneration and reuse characteristics.

Another compound commonly used in the production of pesticides is p-nitrophenol, which is why it is important to eliminate this compound from effluents. Zhou and collaborators in 2013 (Zhou, Wang, Zhang, & Yu, 2013) carried out a study where they prepared hollow alumina microspheres modified with trisodium citrate. A further observation indicates that the width of the diffraction peaks becomes slightly wider with increasing CTC, which implies the formation of smaller Al₂O₃ crystallites, the irregular aggregated particles with rough surface were obtained in the absence of trisodium citrate. An increase in CTC to 0.125 mmol resulted in hollow microspheres with a diameter of approximately 600 nm, and their 50 nm thick shells composed of loosely connected nanoflakes. A further increase in CTC to 0.25 mmol resulted in hollower structures and smaller pore sizes, when CTC approaches 0.5 mmol, the morphology of the sample becomes well-defined microspheres with diameters of approximately 2-3 μm. Finally, collapsed microspheres appeared when the CTC reached 1 mmol. The result of the adsorption of p-nitrophenol in the prepared samples revealed that the pseudo-second order kinetic equation can better describe the adsorption kinetics showing a maximum adsorption capacity of 217.4 mg/g. Furthermore, adsorption isotherm studies indicated that the resulting alumina microspheres are a strong adsorbent for this contaminant.

Since alumina has been widely used for the removal of dyes and pesticides with positive results, an attempt has been made to reproduce the results with other types of compounds such as pharmaceutical compounds. Pham and collaborators in 2019 (Pham et al., 2019) investigated the adsorption of molecular oxytetracycline (OTC) of an aqueous solution on surfactant modified alumina (SMA). An anionic surfactant, sodium dodecyl sulfate (SDS), which was used to modify the surface of alumina at high ionic strength. Detailing that the point of zero charge of α-Al₂O₃ is approximately 8.0. Some conditions that were effective for OTC removal using SMA were systematically studied, such as contact time, pH, adsorbent dose, and ionic strength. The highest removal efficiency for OTC using SMA was 97%. Under optimal adsorption conditions, OTC extraction from a real water sample collected from shrimp aquaculture achieved a removal efficiency of 90%. After the adsorbent was regenerated four times, the OTC removal efficiency using SMA was 83%. The maximum adsorption capacity of OTC on SMA was found to be 143 mg/g. The results obtained demonstrate that the modification of the alumina surface with SDS is important to form a new adsorbent for the removal of tetracycline antibiotics from an aqueous solution.

Nowadays, Dao and collaborators in 2020 (Dao et al., 2020) have investigated the synthesis of poly (2-acrylamide-2-methylpropane sulfonic acid) (PAMP) on alumina nanoparticles and for the elimination of the antibiotic ciprofloxacin (CFX) from an aqueous medium, showing a maximum capacity adsorption of approximately 10 mg/g. The CFX removal application in actual hospital wastewater was greater than 80%. The magnetic resonance spectra can be observed for the signals of a CH₂ proton and a CH proton at 6.3, 6.2 and 5.7 ppm which appeared in the spectra before polymerization but did not appear in the spectra after polymerization. The change in the appearance of the peak before and after polymerization indicated the change in structure or binding in the product. The disappearance of the double bonds in the PAMPs after polymerization indicated that a new saturated substance was formed. Furthermore, the peak of a CH bond that appeared in the spectra after polymerization indicated the CH of a saturated group. This implies that the polymerization occurred with high efficiency. The results of the study demonstrate that PAMP on alumina nanoparticles is a promising new material for the removal of antibiotics from wastewater. It is also important to mention that the location of the specific polluted effluents must be known since they can cause a change in the aquatic environments and to be able to give them the appropriate treatment. A continuation a table of alumina used as an adsorbent for different contaminants.
