Induction Motor Air Gap Eccentricity Fault Motor Current Signature
Analysis (MCSA) Artificial Neural Network
(ANN) MATLAB Software Induction motor plays an important role in the industrial, commercial and residential industries, owing to its immense advantages over the opposite types of motors. Such motors have to operate under different operating conditions that cause engine degradation leading to fault occurrences. There are numerous fault detection techniques available. There are numerous fault detection techniques available. The technique used in this paper to prove the effect of static air gap eccentricity on behaving or performing of the three-phase induction motor is the artificial neural network (ANN) as ANN depends on detecting the fault on the amplitude of positive and negative harmonics of frequencies. In this paper, we used two motors to achieve real malfunctions and to get the required data and for three different load tests. In this paper, we adopted MCSA to detect the fault based on the stator current. The ANN training algorithm used in this paper is back propagation and feed forward. The inputs of ANN are the speed and the amplitudes of the positive and the negative harmonics, and the type of fault is the output. To distinguish between healthy and faulty motor, the input data of ANN are well-trained via experiments test. The methodology applied in this paper was MATLAB and present how we can distinguish between healthy and faulty motor.

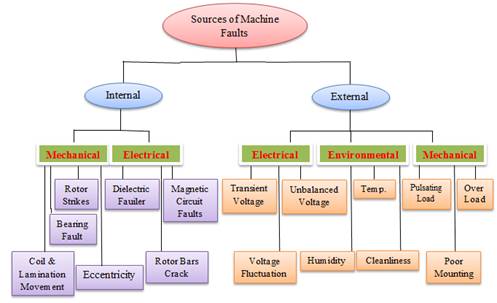

## 1. INTRODUCTIONInduction machines are the basis of all modern industries.
Even so, as other motors, they will finally fail due to its heavy-duty work,
amid poor working, manufacturing, and composition factors. The cause of the
damage may be internal or external factors; all factors are then categorized as
mechanical or electrical faults depending on the rotor or stator part's source
of the faults or faults depending on the position or origin of the fault as
seen in Fig. 1 [5].
## 1.1. AIR-GAP ECCENTRICITYThe air-gap eccentricity is a very significant problem in induction motors; it is caused by unequal air gap and calls eccentricity fault. There are two kinds of air-gap eccentricity, the dynamic air-gap eccentricity (DE), the static air gap eccentricity (SE), and combination of both types called mixed eccentricity. In the ideal case, the geometric axis of the rotor and stator are same as in Fig. 2a, in case of static eccentricity the rotor rotates about its geometric axis as shown in Fig. 2b, which is not the geometric axis of the stator, in case of dynamic eccentricity as depicted in Fig. 2c; the rotor is not concentric and rotates around the stator’s geometric axis [7].
The equation of the eccentricity frequency in stator current of an induction motor can be calculated as:
Where, f f k R= number of rotor slots n s= slip p= number of pair of poles v= order of stator time harmonics that are present in the power supply of the motor. ## 2. STATIC ECCENTRICITYStatic eccentricity is taken place when the symmetrical axes of the rotor have the same center with the rotational axis of the rotor, but they are dislocated with the symmetrical axis of the stator; hence it fixed the radial air-gap length location. In this manner, the mutual inductance across the rotor and stator, and the self and mutual inductance between the different phases of the rotor are a rotor angular function. The mutual and self-inductance are independent of the location of the rotor angular, exactly like a healthy motor. Fig. 3 shows the static eccentricity in induction motor [9].
The static eccentricity in the induction motor leads to an asymmetric air-gap, this asymmetric air-gap caused by the magneto-motive force of the stator by the continuity of the rotor electro-motive force harmonics. This process can be applied for the electro-motive force of the stator according to the magneto-motive force of the rotor. Therefore, the magneto-motive force and the permeance produce the flux in the air-gap that produces another filed in the air-gap; this field contains basic components, rotor and stator magneto-motive force, rotor and stator permeance, and other components due to saturation. Fig. 4 shows the air-gap field which describes the distribution of the flux density in the air-gap [5].
## 3. FAULT MONITORING TECHNIQUESThe monitoring techniques used for detecting the induction motor faults are [6]: 1) Vibration monitoring 2) Noise monitoring 3) Thermal monitoring 4) Partial discharge monitoring 5) Voltage monitoring 6) Current monitoring ## 4. MOTOR CURRENT SIGNATURE ANALYSIS (MCSA)According to
the Electric Power Research Institute, the current monitoring technique is most
widely used, and it is widely used in fault detection of induction machine
techniques. And depending on the institute statistics, around 40% of induction
machine faults are due to the stator faults. MCSA has been used successfully in
the detection of different faults such as static and dynamic eccentricity,
bearing faults, stator faults as well as rotor bar faults. By using the MSCA
technique, we compute the harmonic amplitude current which can be detected by
this fault [6]. MCSA used to detect the eccentricity
fault by monitoring the frequency component (fec = kfrm + f1) [8]. For analyzing the
harmonic spectrum, we introduce a new signal process method which is called
Fast Fourier Transform (FFT) instead of ordinary frequency in stator current
and induction motor fault diagnose. The way of
identifying the faults in induction machines include two basic processes,
creation process in which the signal is identified, and then identification
process in which the data is divided and sampled and then normalize and filter.
Then the data converted to harmonics via the First Fourier Transform algorithm [2]. ## 5. ARTIFICIAL NEURAL NETWORKThe
Artificial Neural Network (ANN) is like a human brain. This is because we use
the forces associated with neurons, called tangential weights, to acquire
knowledge, to learn and maintain knowledge. There is a similarity between ANN
and neurology, which allows biologists to rely on the evolution of biological

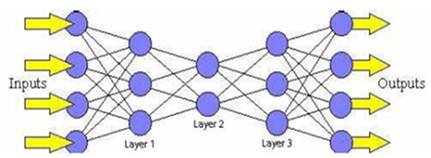

phenomena. The
architecture of ANN represents a group of artificial neuron linked together to
form a network which have neurologic characteristic such as storing practical
and experimental information to make them useable by adapting the weights, as
it is describe in Fig. 5. The main
component of this network structure is the relationship with the artificial
neuron. Each artificial neuron is an object of the process that can process and
store information. Each link can increase, decreases or block the transfer of
information throughout it. ANN consists of input, summation and activation and
output connection function [10]. .
The most
difficult and important matter while designing an appropriate ANN is how to
choose the proper number of hidden layers and its number of neurons. This layer
represents the inner data and how the information is transferred from input to
output layers. If there are few or many neurons in this layer, it will effect
on the operation of the network. If high number of neurons are present, over
trained is occur. So an ideal design is required for the number of neurons in

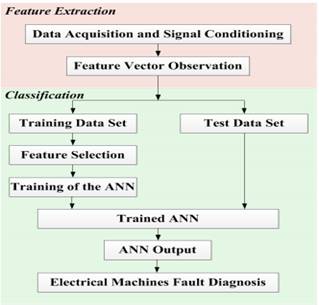

the hidden layer [1]. Fig. 6
displays the logical structure for the ANN-based system of detection of faults
in induction motor [4].
The study contains three tests on healthy, faulty and the eccentricity fault motor at different loads. ## 6. TEST FOR HEALTHY MOTORThe FFT Algorithm is applied on the waveform of stator current for different loads of healthy induction motor: ## 6.1. TEST AT NO-LOADThe parameters used for testing the healthy induction motor at no-load, are slip, speed and current, where: slip= 0.0165, speed= 2960 rpm and line current= 3.6A. Fig. 7 shows both the waveform of the current and its corresponding FFT.
## 6.2. TEST AT HALF –LOADSame paramour used for this test, the values of slip= 0.034, speed= 2910 rpm and line current= 5.1A. Fig. 8 shows the waveform and FFT of the signal at half load.
## 6.3. TEST AT FULL -LOADIn this test the value of the three parameters are: slip= 0.051, speed= 2860 rpm and line current= 8.55A. Fig. 9 shows the wave form of the current and it’s FFT at full-load.
## 7. TEST AT ECCENTRICITY FAULTAfter testing the healthy motor, motor at static
eccentricity fault is tested. The harmonic analysis of the line current were determined by
the data acquired from (No-load, Half-load and Full-load) tests. By using
equation (1), we can calculate the side band frequency for the three cases
mentioned above, where R = 20 and n ## 7.1. TEST AT NO-LOADFirst step, describe the process at No-load, where; slip=0.062, current= 3.55A and speed=2815 rpm. Fig. 10 shows the waveform of line current and FFT waveform.
## 7.2. TEST AT HALF-LOADSecond test, present the process at Half-load, where; slip= 0.008, current=5.1A and speed= 2800 rpm. Fig.11, shows the waveform of line current and FFT waveform.
## 7.3. TEST AT FULL-LOADThird test, describe the process at Full-load, where; sleep= 0.094, current= 8.6A and speed= 2725 rpm. Fig. 12, shows the waveform of line current and FFT waveform.
## 8. IDENTIFYING THE FAULTSBY TRAINING OF ANNTwo induction motors, one healthy motor and other faulty
motor 2.2 kW rating, have been used to obtain the real fault and data needed at
the three types of load. We get the two signals current and speed from these
two motors. We used Matlab software for writing the program containing FFT
algorithm and the amplitude of harmonic frequency. To improve performance of
ANN, the input data must be correctly chosen before inserting them to the
network. There are two outputs, one indicates the motor is faulty and the other
indicates that the motor is healthy. We select two neurons for the hidden layer
for the training process. Then the Network will train depending on the side bands amplitude, 25 data set for the static eccentricity fault out of 125 data set are used for training the network. To achieve the required goal, the supervised training needs guideness. In this paper a FFT are used and trained using active function of tan sigmoid type, with back propagation algorithm. The inputs and outputs of the ANN are shown in fig. 13.

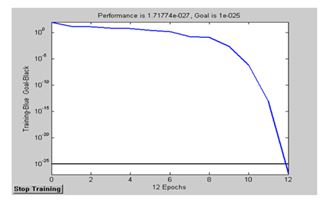

## 9. AFTER TRAINING THE NETWORKAfter training the network successfully, it’ll then use the network to detect the static eccentricity fault. This training portrayed the sum of squared error concerned with number of iterations in fig. 14, the training parameter goal set for the program was an error (1e-25), but the training outcome was less than the program error as shown in Fig. 14.
## 10. CONCLUSION AND FUTURE WORK
MCSA used to measure the static eccentricity in the engine by close analysis of an induction motor. MCSA is a very accurate and easy way to diagnose the fault, as it needs only one stator present. The test method suggested a mix of high-performance ANN and MCSA techniques. The diagnosis system proposed a combination of MCSA technique and high-performance ANN. By this relationship between MCSA and ANN, the efficiency of detecting the static eccentricity fault increases. In this paper, the technique used for data extraction is FFT, which extracts accurate information from the signal of stator current. The experimental results show that the ANN with feedforward and learning rule of backpropagation type and Tanh Axon transfer function with two elements in the hidden layer is a very suitable network for detecting faults in an induction motor with an accuracy of 100%. However, one of ANN’s key drawbacks is that it only responds to the discovery of the fault on which it was trained, and in the event of a new fault, ANN can’t detect that fault because, the new fault has not been learned and thus the use of ANN is futile. For this reason, Fuzzy Logic technique is most useful in this case. ## SOURCES OF FUNDINGThis research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors. ## CONFLICT OF INTERESTThe author have declared that no competing interests exist. ## ACKNOWLEDGMENTNone. ## REFERENCES
[3]
Anjali
Jawadekar, SudhirParaskar, SaurabhJadhav et al.2014,” Artificial neural
network-based induction motor fault classifier using continuous wavelet
transform”, Systems Science & Control Engineering: An Open Access Journal,
ISSN: (Print) 2164-2583 (Online) Journal homepage, 2:1, 684-690, DOI:
10.1080/21642583.2014.956266.
