EXPERIMENTAL STUDY AND PERFORMANCE OF STRENGTH PROPERTIES OF CALCINED KAOLIN AND SILICA FUME PARENTAGE ADDITION



Kamar Elahi 1Envelope, Prof. Harsh Gupta 2

1 Research scholar, Department of Civil Engineering, Jawaharlal Nehru College of Technology, Rewa (M.P.), India

2 Professor, Department of Civil Engineering, Jawaharlal Nehru College of Technology, Rewa (M.P.), India



DOI: https://doi.org/10.29121/granthaalayah.v9.i1.2021.3161

A drawing of a face

Description automatically generated


Article Type: Research Article



Article Citation: Kamar Elahi, and Prof. Harsh Gupta. (2021). EXPERIMENTAL STUDY AND PERFORMANCE OF STRENGTH PROPERTIES OF CALCINED KAOLIN AND SILICA FUME PARENTAGE ADDITION. International Journal of Research -GRANTHAALAYAH, 9(1), 216-221. https://doi.org/10.29121/granthaalayah.v9.i1.2021.3161



Received Date: 05 January 2021



Accepted Date: 31 January 2021



Keywords:

Silica Fume

Compressive Strength

Tensile Strength

Sand
ABSTRACT

The article is presenting the various type of strength like as compressive and tensile strength during the time of 7 and 28 days. The specimen ore making as 15cm X 15cm X 15cm size for the testing purpose which is depending on the aggregate size. The results are show that strength performances of concrete with durability aspect are improved using Silica fume parentage addition.





1.     INTRODUCTION



We are study about the property of test specimen which are having size of 15cm X 15cm X 15cm. The property of composition is generally used such as compressive strength and tensile strength. We are tested Mix (M1, M2, M3, M4, M5, M6, M7 and M8) to observe the suitable mix for construction propose, which is making with the help of Calcined Kaolin, Sand, Aggregate and composition.



2.      COMPRESSIVE STRENGTH FORMULA



Compressive Strength = Load / Cross-sectional Area



3.     PROCEDURE



First of all, we are constructed the cube with size of 15cm X 15cm X 15cm for testing propose and observing using concrete is completely poured and mould with temperature for the propose of removing the voids after one day cubical mould are removed and the specimen are placed in water tank for the propose of curing. All specimens after time of 7 and 28 days curing, we are tested with testing machine. The load id applied on the specimen 200 Kg/ cm2 per minutes gradually upto fails.



4.     PREPARATIONS



Figure 1: First Specimen

Figure 2: Second Specimen

Figure 3: Third Specimen

Figure 4: Fourth Specimen

Figure 5: Fifth Specimen

Figure 6: Sixth Specimen

Figure 7: Seventh Specimen

Figure 8: Eight Specimen





Figure 9: First to Eight Specimens



5.     RESULTS AND DISCUSSION



Table 1: Properties of Cement

Sr. No.

Property

Magnitudes

1

Normal Consistency

40%

2

Initial Setting time

60 minutes

3

Specific Gravity

3.15

4

Fineness of cement

5%



Table 2: Properties of Fine Aggregate

Sr. No.

Property

Magnitudes

1

Specific Gravity

2.66

2

Fineness modulus

2.56



Table 3: Properties of Silica Fume

Sr. No.

Property

Magnitudes

1

Specific Gravity

2.2

2

Bulk Density

576, (Kg/m3)

3

Size, (Micron)

0.1

4

Surface Area, (m2/kg)

20,000

5

Si02

90%-96%

6

Al2O3

0.5% -0.8%



Table 4: Mix

Sr. No.

Material

Quantity in Kg/m3

1

Cement (OPC)

520

2

Fine Aggregate

460.722

3

Coarse Aggregate

1421.699

4

Water

190.6



Table 5: Results of Compressive Strength during 7 days

Mix

% of Silica

Silica Fume

added

Compressive

Strength (Kg/ cm2)

M1

0

28.22

M2

5

32.66

M3

10

34.85

M4

15

36.58

M5

20

38.55

M6

25

41.66

M7

30

43.82

M8

35

42.91

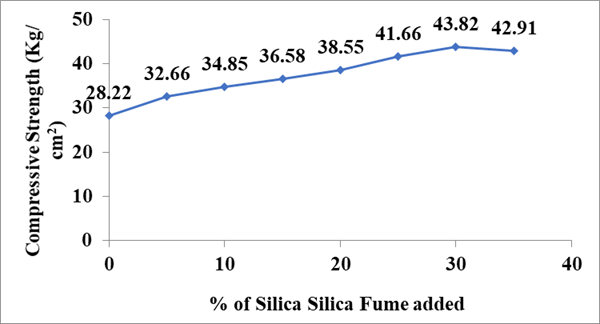

Figure 10: Results of Compressive Strength during 7 days



Table 6: Results of Compressive Strength during 28 days

Mix

% of Silica

Silica Fume

added

Compressive

Strength (Kg/ cm2)

M1

0

29.55

M2

5

33.94

M3

10

35.88

M4

15

40.95

M5

20

44.98

M6

25

48.99

M7

30

50.22

M8

35

49.68

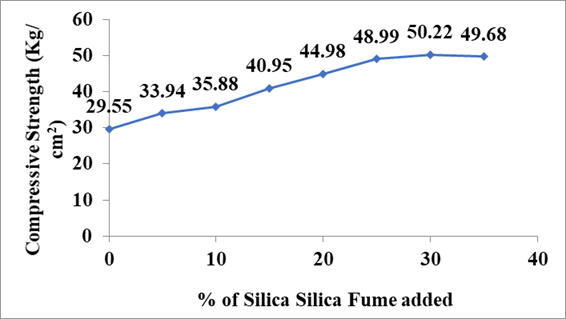

Figure 11: Results of Compressive Strength during 28 days

Table 7: Results of Split tensile Strength during 7 days

Mix

% of Silica

Silica Fume

added

Split tensile Strength (Kg/ cm2)

M1

0

4.22

M2

5

5.84

M3

10

6.21

M4

15

7.81

M5

20

8.94

M6

25

9.63

M7

30

10.21

M8

35

9.86



Figure 12: Results of Split tensile Strength during 7 days



Table 8: Results of Split tensile Strength during 28 days

Mix

% of Silica

Silica Fume

added

Split tensile

Strength (Kg/ cm2)

M1

0

5.98

M2

5

6.88

M3

10

7.84

M4

15

8.94

M5

20

9.41

M6

25

10.64

M7

30

12.66

M8

35

11.56







Figure 13: Results of Split tensile Strength during 28 days



6.     CONCLUSIONS



We are tested the specimen size of 15cm X 15cm X 15cm to observe the compressive strength (Kg/ cm2) and split tensile strength (Kg/ cm2). The various results are achieved with the help of % of silica fume addition. These specimens are tested using compression testing machine after 7 days curing, after this optimum result are finding out using Mix (M7) which is shown Table 5, and Figure 10. Using of compression testing machine after 28 days curing, after this optimum result are finding out using of Mix (M7) which is shown Table 6 and Figure 11. These specimens are tested using compression testing machine after 7 days curing, after this optimum result are finding out using of Mix (M7) which is shown Table 7, and Figure 12. Using compression testing machine after 28 days curing, after this optimum result are finding out using of Mix (M7) which is shown Table 8, and Figure 13.



SOURCES OF FUNDING



This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.



CONFLICT OF INTEREST



The author have declared that no competing interests exist.



ACKNOWLEDGMENT



None.



REFERENCES



    [1]       Khayat, K. H. 1995. “Effects of anti-washout admixtures on fresh concrete properties.” ACI Mater. J., pp 164–171.

    [2]       Assaad, J. 2003. “Relationship between washout resistance and rheological properties of high-performance underwater concrete.” ACI Mater. J., pp 185–193.

    [3]       Ballivy, G. 1996. “High-performance cement grout for underwater crack injection.” Proc., 3rd CANMET/ACI Int. Conf. on Performance of Concrete in Marine Environment, V. M. Malhotra, ed., ACI, Farmington Hills, Mich., pp 138–162.
