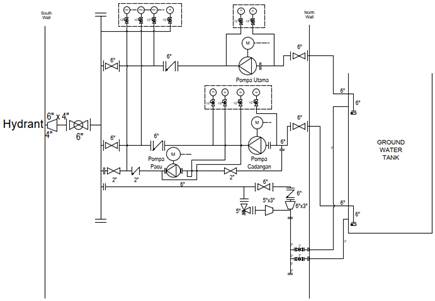

Design Pump Fire Extinguisher Head Losses Integrated Hydrant Multi-storey building must be equipped with a reliable building fire extinguishing system. The existing fire extinguishing system design is not equipped with a backup pump and a jockey pump. Based on The DKI Jakarta Governor Regulation No. 92/2014 and the Indonesian National Standard, to solve this problem, a building fire pump system is designed with a combination of the jockey pump, main pump and backup pump that connected in an integrated parallel arrangement. This design allows the backup pump to automatically run due to a pressure drop in the system pipe if the main pump fails or unable to build up pressure. When a fire occurs and a lot of hydrants are used, the backup pump will automatically run to help the main pump with a signal triggered by the pressure switch.
## 1. INTRODUCTIONMulti-storey building must be equipped with a fire extinguishing system. The building fire system must comply with applicable standards. The DKI Jakarta Governor Regulation No. 92/2014 is one of the standards related to the building fire pump system applicable in the DKI Jakarta area. Based on fire extinguishing standards, the main part of a building fire extinguisher is the pumping system in the pump room consisting of the main pump, backup pump, and runway pump. The current fire extinguishing pump system design discussed in several previous journals has a weakness in the absence of a backup pump or it is equipped with a backup pump but is not integrated with the main pump. There is a risk of danger if the main pump fails to operate in a fire emergency. This paper discusses the solution of the existing problems by designing a building fire system using a main pump and a backup pump that are connected in parallel with an integrated running scenario in accordance with the DKI Jakarta Governor Regulation No. 92/2014 concerning Technical Requirements and Procedures for Installation of Pipe and Fire Hose Systems and Yard Hydrants and the Indonesian National Standard No. 03-1745-2000 concerning Procedures for Planning and Installation of Upright and Slang Pipe Systems for Prevention of Fire Hazards in Houses and Buildings . The backup pump is designed to run automatically with a drop in system pressure detected by the pressure switch if the main pump fails. The backup pump is not only used when the main pump is in trouble or is in the maintenance process. However, when a fire occurs and many hydrant valves are opened, resulting in the main pump being unable to build up pressure, the backup pump will automatically run and help the main pump deliver water to the hydrant. ## 2. AIM OF RESEARCHTo produce a building fire pump system design with an integrated parallel pump series in accordance with the DKI Jakarta Governor Regulation No. 92/2014 and Indonesian National Standard No. 03-1745-2000.

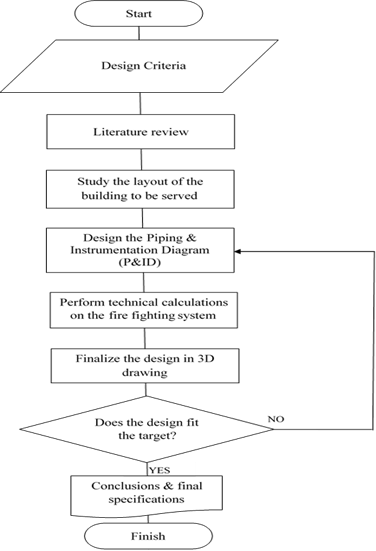

## 3. MATERIALS AND METHOD

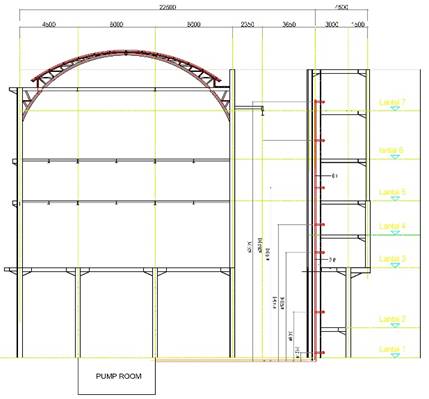

## 4. RESULTS AND DISCUSSIONS## 4.1. BUILDING LAYOUT WITH HYDRANT PIPE INSTALLATIONThe building served by the damkar pump design has 7 floors with a height of ± 24 [m]. The building is equipped with 2 vertical distribution pipes. The output line for the building firefighting system is served only through the hydrant valve. The building hydrant pipe installation flow is described by a red line with the dimensions of the pipe ∅ 100 [mm] according to the DKI Jakarta Governor Regulation No. 92/2014.
## 4.2. FIRE EXTINGUISHING SYSTEM TECHNICAL SPECIFICATIONSBased on the DKI Jakarta Governor Regulation No. 92/2014, for a multi-storey building with 2 vertical distribution pipes, the minimum flow rate in a standpipe must be 0,0315 [m3/s] (500 [usgpm]) and 0,0158 [m3/s] (250 [usgpm]) for the second standpipe. The hydrant provides a hose box with a DN 65 [mm] nozzle. Then it can be seen the total flow rate in the vertical pipe according to the DKI Jakarta Governor Regulation No. 92/2014 is 0,0473 [m3/s] (750 [usgpm]). Based on the DKI Jakarta Governor Regulation No. 92/2014 can be seen the following data: Nominal Diameter of Upright Pipe = 100 [mm] Nominal Diameter of Suction Pipe = 150 [mm] Nominal Diameter of Discharge Pipe = 150 [mm] Nominal Diameter of Header Pipe = 150 [mm] Minimum Safety Valve Size = 100 [mm] Based on the technical specifications that have been determined based on the DKI Jakarta Governor Regulation No. 92/2014, a piping & instrumentation diagram (P&ID) can be prepared as a reference frame for the design of a building fire pump system.
4.2.1. TECHNICAL SPECIFICATION OF SUCTION SPOOL PIPE Using carbon steel pipes: ρ v =
1 [cSt] = 0,000001 [m Q =
0,0473 [m g =
9,81 [m/s Pipe roughness (ε) = 0,045 [mm] = 0,000045 [m] ID pipe ∅ 150 [mm] = 0,154 [m] L pipe ∅ 150 [mm] = 3 [m] Elbow ∅ 150 [mm] = 1 [pcs] Strainer ∅ 150 [mm] = 1 [pcs] Gate valve ∅ 150 [mm] = 1 [pcs] K elbow ∅ 150 [mm] = 0,204 K strainer ∅150 [mm] = 6 K gate valve ∅ 150 [mm] = 0,2
4.2.2. TECHNICAL SPECIFICATION OF DISCHARGE SPOOL PIPE ρ v =
1 [cSt] = 0,000001 [m g =
9.81 [m/s Q =
0,0473 [m Pipe roughness (ε) = 0,045 [mm] = 0,000045 [m] ID pipe ∅ 150 [mm] = 0,154 [m] L pipe ∅ 150 [mm] = 0,7 [m] ID pipe ∅ 100 [mm] = 0,102 [m] L pipe ∅ 100 [mm] 1st floor = 25,5 [m] L pipe ∅ 100 [mm] 2nd floor = 30 [m] L pipe ∅ 100 [mm] 3rd floor = 36 [m] L pipe ∅ 100 [mm] 4th floor = 38 [m] L pipe ∅ 100 [mm] 5th floor = 40 [m] L pipe ∅ 100 [mm] 6th floor = 44.5 [m] L pipe ∅ 100 [mm] 7th floor = 48 [m] ID pipe ∅ 65 [mm] = 0,063 [m] L pipe ∅ 65 [mm] = 0,3 [m] Elbow ∅ 100 [mm] = 1 [pcs] Reducer ∅ 150x100 [mm] = 1 [pcs] Check valve ∅ 150 [mm] = 1 [pcs] Globe valve ∅ 150 [mm] = 1 [pcs] Gate valve ∅ 150 [mm] = 1 [pcs] K reducer ∅ 150 x100 [mm] = 0,3 K elbow ∅ 100 [mm] = 0,22 K check valve ∅ 150 [mm] = 1,5 K globe valve ∅ 150 [mm] = 3,5 K gate valve ∅ 150 [mm] = 0,2 ## 4.3. TECHNICAL CALCULATION ANALYSIS ON SUCTION PIPE LINES
4.3.1. FINDING THE SURFACE AREA IN A PIPE (A) A = = = 0,0186 [m Remarks: A = the cross-sectional area in
the pipe [m d = pipe inner diameter [m] 4.3.2. DETERMINING THE REYNOLD NUMBER (RE) Re =………………………………………………………… [14] = = 391204,23 So, it can be obtained: Re. = 391204,23. = 114,31 Remarks: u = linear velocity of water flow [m/s] d = pipe inner diameter [m] v = kinematic viscosity [m Re = reynold number ε = inner surface roughness of the pipe 4.3.3. DETERMINE THE DARCY COEFFICIENT (Λ) = ….………………………… [10] = - Remarks: λ = darcy coefficient d = inner diameter of pipe [m] ε = inner surface roughness of the pipe Re = reynold number To solve the above equation, the iteration method was calculated using Microsoft Excel® software to obtain the convergent darcy coefficient (λ). Based on the results of iteration calculations, the convergent value of the darcy coefficient is λ = 0,016 4.3.4. CALCULATE HEAD LOSS ON PIPE ∅ 150 [MM] hr = ………………………….………………… [10] = = 0,102 [m] Remarks: λ = darcy coefficient Q = flow [m g = gravity acceleration [m/s d = inner diameter of pipe [m] hr = Head loss [m] 4.3.5. CALCULATE HEAD LOSS ON ELBOW ∅ 150 [MM] On the suction line there is 1 pcs elbow ∅ 150 [mm] schedule 40 long radius, so the losses can be calculated by: hr = ………………………….………...……… [10] = = 0,067 [m] Remarks: Q = flow [m3/s] g = gravity acceleration [m/s d = inner diameter of pipe [m] K = loss coefficient hr = Head loss [m] 4.3.6. CALCULATE HEAD LOSS ON GATE VALVE ∅ 150 [MM] In the inlet there is 1 pcs gate valve ∅ 150 [mm] as required in the DKI Jakarta Governor Regulation No. 92/2014 and the losses can be calculated as much as: hr =………………………….…………….…… [10] = = 0,066 [m] 4.3.7. CALCULATE HEAD LOSS ON SUCTION PIPELINE Total head loss in the main pump suction pipe line can be obtained by adding up all the head losses in the main pump suction pipe. hr total = hr pipe + hr elbow + hr strainer + hr gate valve = 0,203 [m] + 0,067 [m] + 1,973 [m] + 0,066 [m] = 2,208 [m] ## 4.4. CALCULATE HEAD LOSS ON DISCHARGE PIPELINE
4.4.1. FINDING THE INNER SURFACE AREA ON PIPE (A) A =
4.4.2. DETERMINE THE LINEAR VELOCITY OF FLOW IN A PIPE (U) u =
4.4.3. DETERMINE THE REYNOLD NUMBER (RE) Re = ………………………….……………………………… [14]
4.4.4. DETERMINE THE DARCY COEFFICIENT (λ) = ………………………....…… [10] To solve the above equation, the iteration method was calculated using Microsoft Excel® software to obtain the convergent darcy coefficient (λ) for each pipe. Based on the results of the iteration calculations above, the convergent Darcy coefficient values can be obtained as follows:
4.4.5. CALCULATE HEAD LOSS ON PIPE hr = ………...…………………………………... [10]
4.4.6. CALCULATE HEAD LOSS ON REDUCER ∅ 150X100 [MM] In the discharge line of the pump there is 1 pcs reducer ∅ 150 x 100 [mm], so the losses can be calculated by: hr = ………...………………………...…………... [10] = = 0,207 [m] 4.4.7. CALCULATE HEAD LOSS ON ELBOW ∅ 100 [MM] On the suction line there is 1 pcs elbow ∅ 100 [mm] schedule 40 long radius, so the losses can be calculated as much as: hr = ………...………………………………. …... [10] = = 0,369 [m] 4.4.8. CALCULATE HEAD LOSS ON CHECK VALVE ∅ 150 [MM] In the inlet there is 1 pcs check valve ∅ 150 [mm] as required in the DKI Jakarta Governor Regulation No. 92/2014 and the losses can be calculated as much as: hr = ………...………………………………...…... [10] = = 0,493 [m] 4.4.9. CALCULATE HEAD LOSS ON GLOBE VALVE ∅ 150 [MM] In the inlet there is 1 pcs globe valve ∅ 150 [mm] and the losses can be calculated as: hr = ………...………………………………...…... [10] = = 1,151 [m] 4.4.10. CALCULATE HEAD LOSS ON GATE VALVE ∅ 150 [MM] In the inlet there is 1 pcs gate valve ∅ 150 [mm] as required in the DKI Jakarta Governor Regulation No. 92/2014 and the losses can be calculated as much as: hr = ………...………………………………...…... [10] = = 0,066 [m] 4.4.11. CALCULATE TOTAL HEAD LOSS ON DISCHARGE PIPELINE The total head loss in the main pump discharge line can be obtained by adding up all the head losses in the main pump discharge pipeline. h
Based on the results of the above calculations, the total head loss can be obtained as follows:
Based on the DKI Jakarta Governor Regulation No. 92/2014, the minimum pressure at the highest hydrant point is 4,5 [bar] = 450000 [Pa], it can be determined that the minimum pump head required is: h pump = h = 17,159 [m] + = 17,159 [m] + 46,07 [m] = 63,23 [m] ≈ 64 [m] Then we can choose a pump with the following specifications:
Q = 170,34 [m H = 64 [m] ## 4.5. CALCULATE HYDRAULIC POWERPw = ρ. g. h. Q ………...…………………………………. …... [14] = 995,65 [kg/m = 29.380,12 [W] = 29,38 [kW] Remarks: ρ = density [kg/m g = gravity acceleration [m/s h = pump head [m] Q = flow [m P ## 4.6. CALCULATE ELECTRIC MOTOR POWER REQUIREMENTSIt is assumed that the working efficiency
of the pump is η P = ………...…………………………………………….…... [14] = = 36,73 [kW] Remarks: Pw = hydraulic power [kW] ηp = pump efficiency [%] Then obtained that the minimum requirement of electric motor power to drive the pump is 37 [kW]. ## 4.7. CALCULATE MINIMUM WATER RESERVOIR CAPACITYIn accordance with the criteria specified
in the DKI Jakarta Pergub No. 92/2014, the building fire pump must be able to
pump water for at least 60 [minutes]. By using a pump with a capacity of 0,0473
[m Q = V = Q. t = 0,0473 [m = 170,28 [m Remarks: Q = flow [m V
= volume of water reservoir [m t = time [s] Based on the calculation results, it can be
concluded that the minimum water volume for the damkar system in buildings is
170,28 [m ## 4.8. CALCULATE SPECIFIC SPEED OF PUMPn =

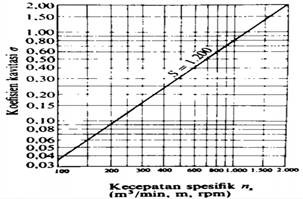

= 29,65 [rpm] Remarks: n = driver’s speed [rpm] H = pump head [m] n Q = flow [m ## 4.9. CALCULATE THE REQUIRED NET POSITIVE SUCTION HEAD (NPSHR)It is known that ns = 23,95 <100, then based on Figure 3. above, the cavitation coefficient (σ) is 0,03. So that it can be calculated the NPSHr value is NPSHr = σ. H = 0,03. 64 [m] = 1,92 [m] Remarks: NPSH σ = cavitation coefficient H
(Source: Sularso, Tahara, (2000), Pompa dan Kompresor, Jakarta: PT Pradnya Paramita) ## 4.10. CALCULATE THE MINIMUM WATER LEVEL IN THE RESERVOIRNet Positive Suction Head Available needs to be taken into account to keep fire pumps from the risk of cavitation. NPSHa is minimum so that the pump does not experience cavitation if NPSHa = NPSHr, so that the minimum water level in the tank to the pump centerline can be calculated as follows: NPSHa = ………...………………... [14] h = = -5,82[m] Remarks: p ρ =
fluid density [kg/m g
= gravity
acceleration [m/s hs = the static level of the pump against the water level [m] hr = head loss of the pipeline [m] So that the pump does not experience cavitation, the water level in the tank must not be more than 5.82 [m] below the pump centerline.

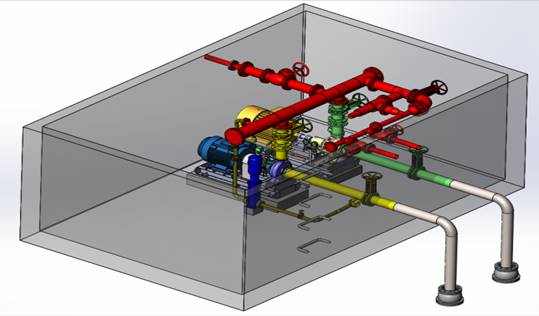

## 5. CONCLUSIONS AND RECOMMENDATIONS## 5.1. CONCLUSIONS1) The building fire pump can be designed in accordance with the DKI Jakarta Governor Regulation No. 92/2014 and the Indonesian National Standard (SNI) with an integrated parallel pump. The backup pump not only functions as a substitute when the main pump fails or has a problem, but when a fire occurs and many hydrants are opened, the backup pump will also automatically run with a significant pressure drop in the damkar system. The main pump and the backup pump will run automatically when a pressure drop is triggered by the pressure switch. 2) The design specifications are as follows: · The selected pump has a minimum head of 64 [m] ·
Pump flow of 170,34 [m · The required pump drive power is 37 [kW] · Net Positive Suction Head required for a pump of 1,92 [m] · The minimum water level in the tank to prevent cavitation from the pump should not be lower than 5,82 [m] below the pump centerline. ·
The minimum capacity of the
building firefighting water source tank is 171 [m ## 5.2. RECOMMENDATION1) The design or modification of the building's fire pump needs to ensure the availability of the components and materials needed and on the market. 2) The design or modification of the building's fire pump needs to pay attention to the ease of the maintenance process for each of its main components. ## SOURCES OF FUNDINGThis research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors. ## CONFLICT OF INTERESTThe author have declared that no competing interests exist. ## ACKNOWLEDGMENTNone. ## REFERENCES [1] Arifin, A.S. dkk, Analisis
