ANALYSIS OF CHARACTERISTICS OF SEVERAL BENDS ON SIDOAN RIVER



Rinawati 1, M. Galib Ishak *2, Rudi Herman 3

1, 2, 3 Department of Civil Engineering. Engineering Faculty. University of Tadulako, Indonesia



DOI: https://doi.org/10.29121/ijetmr.v8.i4.2021.927

A drawing of a face

Description automatically generated


Article Citation: Rinawati, M. Galib Ishak, and Rudi Herman. (2021). ANALYSIS OF CHARACTERISTICS OF SEVERAL BENDS ON SIDOAN RIVER. International Journal of Engineering Technologies and Management Research, 8(4), 46-57. https://doi.org/10.29121/ijetmr.v8.i4.2021.927



Published Date: 24 April 2021



Keywords:

Characteristics Q50

Sediment Motion

Meandering River

Shear Stress
ABSTRACT

Researching the behavior of the river. Especially at the bend, where the morphology of the river is not always straightforward. Flow velocity high water and grinding at river bends occur at different points. This research was conducted on five adjacent bends on the Sidoan River section. This study examined the condition of riverbed sediment, knowing the stability of riverbed sediment granules based on shearing velocity, and stability of riverbed sediment granules based on shear stress. The method used in this study is geometric measurement. Q50 discharge calculation. produces hydraulic simulation. d50 sediment diameter. HEC-RAS software simulation and Shields graphs analysis. The results of the study on five bends for Q50 discharge are the condition of the riverbed in five bends all moving, the critical shear velocity relationship and flow depth are directly proportional, the highest condition at bend 2, otherwise the lowest condition at bend 3. The relationship between particle dimensions and shear velocity is inversely proportional to the value of sliding velocity. if the particle dimensions are small then the large shear stress occurs at bend 5 and vice versa, the dimensions of large particles then the small shear velocity occurs at bend 4, sliding velocity is directly proportional to the shear stress. The highest critical shear stress at bend 2, while the lowest condition at bend 4, the greater the radius of the bend the scouring was deeper.





1.     INTRODUCTION



Researching the behavior of the flow at the bends of the river is very important because the morphology of the river is not always straight so that the flow-through can be affected by the bend. The meandering river is a dynamic system and very nonlinear. Sidoan River has a groove that bends. as shown in Figure 1 below that on the outside of the bend there is a scouring which is certainly caused by the presence of centrifugal force flow.

At certain times large discharges and flow velocity are prone to overflow and scouring at river bends. Scouring of sediment and deposition on rivers can occur at different points, of the many bends found on the Sidoan River, and used five adjacent bends as a research object. This study examined the condition of riverbed sediment at five bends, knowing the stability of riverbed sediment granules based on sliding velocity.

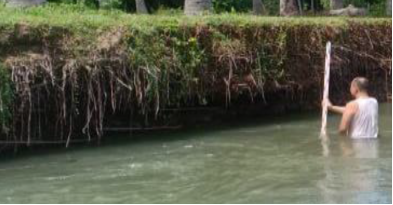

Figure 1:  One of the bends on the Sidoan River.



According to Rinaldi [1] Researching the bend, especially about the depth of the scouring around the bridge abutment, stated that the scouring occurred due to the changing flow pattern, other researchers [2] researching the amount of scouring that occurs at the bends of the river, especially when there are pillars or abutments at the bend, this study was conducted in the laboratory, while another research examines the relationship between discharge and river meandering of geometry [3].

Marttotorang [4] observing the effect of riverbed width on flow patterns that occur in each section due to changes in flow velocity, with increasing flow velocity in the cross-section, sediment transport becomes large. Other research on bedload sediment [5],[6] conducted in the laboratory and the field. the results of research on the velocity and number of sediment particles show a logarithmic relationship to the average size of the sediment, the base material transport rate of the river width unity increases with increasing depth of the geometric equation function, and other studies [7],[8] the movement of sediment particles is also greatly influenced by the shape of the river basin.

Analyze the distribution of velocity and sediment in the channel bends, especially single bends [9],[10],[11] flow velocity increases on the inside of the bend when passing through the start of the bend, and velocity decreases at the end of the bend. Other research on the relationship between riverbed material characteristics and its geometry shows that the middle part of the river has the most content in coarse-grained soil (d≥0.150 mm) while on the riverbanks the most content is fine-grained soil (d≤0.150 mm) [12],[13].

Purnama [9] the distribution trends of the suspended sediment concentration increase towards the bottom of the channel and decreases towards the water surface with the distribution trend getting erect with a more uniform value towards the water surface. The discharge and flow velocity are directly proportional to the increase in the volume of scouring that occurs [13].



2.     MATERIALS AND METHODS



2.1. HYDROLOGY



This research begins by collecting hydrological data, with this data calculated the rain intensity is the height of rain or the volume of rain per unit of time. The amount of rain intensity varies, depending on the length of rainfall and the frequency of its occurrence, and frequency analysis. This frequency analysis is intended to determine the relationship between the magnitude of extreme events and the frequency of the occurrence of these events, frequency analysis is needed. Frequency analysis for rainfall, in general, can be done using the frequency analysis of the Log Pearson III Distribution. Meanwhile, to determine which empirical frequency distribution method fits the existing data sample, statistical testing is required.

Rain intensity for a short duration was estimated using the Mononobe formula [14].



                                                                                                                                                                            (1)







2.2. HYDROGRAPH



According to Triatmodjo [15], a hydrograph is a curve that gives a relationship between flow parameters in the form of flow rate or water level with time. The hydrograph consists of a rising limb, peak, and recession limb, shown in Figure 2.

Figure 2:  Components of the hydrograph [15].



2.3. AMOUNT OF DISCHARGE



To determine the amount of river discharge based on rain. it is necessary to examine the relationship between rain and river flow. The amount of flow in the river is determined mainly by the amount of rain, the intensity of the rain, the area of the rain area. the length of time of the rain, the area of the river, and the characteristics of the watershed [16].



2.4. METHOD OF NAKAYASU



Equation of HSS Nakayasu and Figure 3 [15].



                                                                                                                                                                    (2)

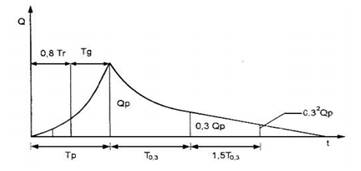

Figure 3: Graph of HSS Nakayasu [15].



2.5. RIVER MORPHOLOGY



Hay [17]assesses that the behavior of the river is meandering as shown in Figure 4.



Figure 4: Geometry sketch of the meandering river [18].

Morisawa [19] formulated that the classification of bends is the ratio between the length of the flow of the meander and the length of the axis of the bend.

SI = the length of the river flow at the bend divided by the length of the axis of the bend, if SI<1.05 = straight river. SI>1.5 = meandering river, and 0.5>SI<1.5 = sinuous river.



2.6. FACTORS AFFECTING THE DEPTH OF SCOUR



Shields’s diagram states the relationship between U*2=gd, and number of Reynold (Re). Shields’s graph is often used to evaluate the critical shear stress, as in Figure 5, by knowing the Reynolds number (Re) of grain or grain diameter (d), then the critical shear stress value (τc) can be seen. If the bottom shear stress of the flow is above the critical value, then the sediment grains move, or in other words: το˂ τc the bottom grains moved.

Description: D:\S3 TEKNIK SIPIL UNHAS1\LITERATUR DESERTASI\GRAFIK-1.jpg

Figure 5: Shields Graph [20].



Shields’s graph defined the initial motion to be the following equation:

                                                                                                                                                                          (3)

                                                                                                                                                                                     (4)



Shear velocity:

                                                                                                                                                                                 (5)



Shear stress:

                                                                                                                                                                                    (6)



2.7. SIMULATION OF HEC-RAS 5.0



HEC-RAS is an integrated package. designed for interactive use in multi-tasking environments. The HEC-RAS is an integrated package. designed for interactive use in multi-tasking environments. This system is designed to provide two-dimensional river modeling using steady flow, steady flow, and sediment transport calculations based on a geometric representation of the river network. Provides steady-flow surface water profile calculations for river networks with sub-critical. Supercritical, or mixed flow regimes [21]. HEC-RAS has four components of a one-dimensional model: steady-flow water level profile count, unstable flow simulation, sediment transport count, and water quality counts.



2.8. BEDLOAD ROUGHNESS



Sediment grain size classification refers to the Scale American Society of Testing Material (ASTM) Table 1.

Roughness coefficient [22].



                                                                                                                                                                               (7)



Roughness coefficient [23].



                                                                                                                                                                                   (8)



Roughness coefficient [24].



                                                                                                                                                                            (9)



Table 1: The scale of the American Society of Testing Material (ASTM).

Type

Size Range

Chunks

Rubble

Crust

Gravel

Very coarse sand, Rough sands

Medium sand

Fine sand

Very fine sand

Silt

Clay/Clays

> 256 mm

64 – 256 mm

4 – 64 mm

2 – 4 mm

1 – 2 mm

0.5 – 1 mm

0.25 – 0.5 mm

0.125 – 0.25 mm

0.063 – 0.125 mm

0.0039 – 0.063 mm

< 0.0039 mm



Manning roughness figure is a coefficient value indicating the roughness of a channel or river bed either on the side or bottom of the channel or river. The Manning roughness value has a relationship to the flow velocity that occurs in a section. The greater the Manning roughness number, the smaller the flow velocity in a section, and vice versa, the smaller the Manning roughness number, the greater the flow velocity that occurs in a section.



3.     RESULTS AND DISCUSSIONS



Rainfall data were analyzed to obtain a design flood discharge. The design flood discharge used is derived from rainfall data which is analyzed by frequency analysis, then the Nakayasu synthetic unit hydrograph (HSS) method is used to transform rain into the flow. Nakayasu Synthetic Unit Hydrograph is a synthetic unit hydrograph model or commonly abbreviated as HSS is a rain-discharge transformation model which is based on the hydrograph theory of hydrograph units produced by one unit of rain due to evenly distributed rain throughout the watershed with a certain duration, using watershed parameters as the basis for building the model.

The idea of arranging and selecting HSS is based on limited hydrological and hydrometric data so that the flow hydrograph is more represented by the characteristics of the watershed itself chosen in this study because the HSS development area is very close to the research location. It is expected that the analysis results obtained will represent and get the closest results.

A flood plain is a river control area defined based on flood discharge for at least a 50-year return period without embankments [25]. The results of the calculation of the flood discharge by the Nakayasu HSS method in Table 2 and Figure 6.



Table 2: The scale of the American Society of Testing Material (ASTM).

T

UH

Period (T-Years)

1.01

2

5

10

25

50

100

200

1000

0

0.000

0.000

0.000

0.000

0.000

0.000

0.000

0.000

0.000

0.000

1

3.147

46.844

89.366

97.990

120.337

132.874

141.302

149.036

156.256

171.806

2

12.230

211.554

403.586

442.536

543.455

600.072

638.137

673.064

705.672

775.897

3

6.774

238.028

454.091

497.915

611.463

675.165

717.994

757.291

793.979

872.993

4

3.848

226.898

432.859

474.633

582.873

643.596

684.422

721.881

756.855

832.173

5

2.595

211.444

403.376

442.305

543.172

599.760

637.805

672.713

705.304

775.493

6

1.750

180.190

343.752

376.926

462.884

511.107

543.529

573.277

601.051

660.864

7

1.189

109.886

209.632

229.863

282.283

311.691

331.463

349.604

366.541

403.018

8

0.885

71.755

136.888

150.099

184.328

203.532

216.443

228.289

239.349

263.168

9

0.658

50.150

95.672

104.905

128.829

142.250

151.274

159.553

167.283

183.930

10

0.490

35.728

68.160

74.738

91.782

101.344

107.772

113.671

119.178

131.038

11

0.365

26.011

49.621

54.410

66.818

73.779

78.459

82.753

86.762

95.396

12

0.271

19.357

36.929

40.493

49.727

54.907

58.390

61.586

64.570

70.996

13

0.202

14.406

27.483

30.135

37.008

40.863

43.455

45.834

48.054

52.836

14

0.150

10.721

20.453

22.427

27.542

30.411

32.340

34.110

35.763

39.322

15

0.112

7.979

15.222

16.691

20.497

22.632

24.068

25.385

26.615

29.264

16

0.083

5.938

11.328

12.422

15.254

16.843

17.912

18.892

19.808

21.779

17

0.062

4.419

8.431

9.244

11.353

12.535

13.330

14.060

14.741

16.208

18

0.046

3.289

6.274

6.880

8.449

9.329

9.921

10.464

10.971

12.062

19

0.034

2.448

4.669

5.120

6.288

6.943

7.383

7.787

8.165

8.977

20

0.026

1.822

3.475

3.810

4.679

5.167

5.495

5.795

6.076

6.681

21

0.019

1.356

2.586

2.836

3.483

3.845

4.089

4.313

4.522

4.972

22

0.014

1.009

1.925

2.110

2.592

2.862

3.043

3.210

3.365

3.700

23

0.011

0.751

1.432

1.571

1.929

2.130

2.265

2.389

2.505

2.754

The peak of the flood

238.028

454.091

497.915

611.463

675.165

717.994

757.291

793.979

872.993





Figure 6: Graph of HSS Nakayasu.



3.1. GEOMETRY ANALYSIS OF SIDOAN RIVER



The design of flood analysis by considering the characteristics of the watershed, first identifies several parameters, including the length of the research river (L), namely, the data obtained is 3,641.8 m. and the area of the river basin (A) of the Sidoan River is 157.11 km2 according to Figure 7.



Figure 7: Map of Watershed Sidoan.



This research examines the character of the river bends. River bends are classified based on the results of field measurements processed with software HEC RAS 5.0 to get the bend character on Q50. The study took 5 bends, namely, bend 1 at STA. 43, bend 2 at STA. 33, bend 3 at STA. 22, bend 4 at STA. 12 and bend 5 at STA. 7, more details can be seen in Figure 8.



Figure 8: The situation of geometric STA. of the Sidoan River at STA.  1 – 54.



Bend 1 the observation point is at STA. 43 path length 403 m from STA. 46 until STA. 41, the magnitude of the bend angle 172°, axis length of the bend 348.72 m, the length of the bend radius 338 m.

Bend 2 the observation point is at STA. 33 path length 219 m from STA. 35 until  STA. 32, the magnitude of the bend angle 93°, axis length of the bend 201 m, the length of the bend radius 313.2 m.

Bend 3 the observation point is at STA. 22 path length 162.3 m from STA. 23 until STA. 21, the magnitude of the bend angle 162°, axis length of the bend 112 m, the length of the bend radius 412 m.

Bend 4 the observation point is at STA. 12 path length 402.7 m from STA. 13 until STA. 11 with the magnitude of the bend angle 140°, axis length of the bend 233 m, the length of the bend radius 418 m.

Band 5 the observation point is at STA. 7 path length 119 m from STA. 8 until STA. 6 and with the magnitude of the bend angle 63°, axis length of the bend 86 m, the length of the bend radius 320 m.



3.2. ANALYSIS OF MEANDERING



Based on the measurement results in the field and the calculation results obtained are as stated in Table 3.







Table 3: Data of Hydraulic Sidoan River.

STA.

Q50

h

U

B

I

d50

Froude

(m3/s)

(m)

(m/s)

(m)

( - )

(m)

( - )

43

717.9

3.83

4.08

112.1

0.005

0.014

0.70

33

717.9

4.32

2.44

104.4

0.005

0.014

0.39

22

717.9

3.80

3.58

133.6

0.005

0.013

0.61

12

717.9

4.01

3.61

139.2

0.005

0.014

0.60

7

717.9

3.96

3.31

104.4

0.005

0.012

0.56



The parameters of the ratio of curvature and width of the river are deflected (R/W) can be used as a tool to predict the rate of erosion in river bends [26]. In general, the erosion behavior for river bend conditions is stated as follows, therefore 3≤R/W≤5, thus sharp bends are bends 1, 3, and 5, others are non-sharp bends.



Table 4: Result of Measurement and Calculation of Meandering in Sidoan River.

Bend

Station

SI

R/B

B/H

U*





-

-

m/s

-

-

1

43

1.30

3.01

33.16

0.45

0.883

4814

2

33

1.78

2.00

24.20

0.46

0.935

4957

3

22

2.50

3.08

35.16

0.43

0.880

4317

4

12

1.19

2.90

34.71

0.44

0.870

4776

5

7

1.30

3.06

26.36

0.44

1.000

4068



Value of ∆ = (ρs –ρw)/ρw, the above results plotted on the Shields graph x-axis is Re* = U* d/ν and the y-axis is U*2/∆gd, resulting in all sediment moving as shown in Figure 9.



Figure 9: Water velocity simulation for Q50 in STA. 1 – STA. 54.



Bend that has a small angle bends 2, has a small velocity compared to bend 1, 3, 4, and 5 shown in Figure 10.



Figure 10: Depth simulation Q50 in STA. 1 – STA. 54.



Figure 11: Cross-section bend 1.



Figure 12: Cross-section bend 2.



Figure 13: Cross-section bend 3.



Figure 14: Cross-section bend 4.



Figure 15: Cross-section bend 5.

The cross-section profile shows that the riverbed at bends 1, 2, 3, 4, and 5 the elevation of the river bed outside the bend is lower than the elevation on the inside of the bend as shown in Figure 11-15.



4.     CONCLUSIONS AND RECOMMENDATIONS


This research was conducted on 5 adjacent bends, using Q50 the results show that all sediment on the outside of the bend is moving so there is a need for cliff countermeasures. the depth of flow at the bends 1, 2, 3, 4 and 5 respectively 3.83 m, 4.32 m, 3.8 m, 4.01 m and 3.96 m. the magnitude of the shear velocity is 0.447 m/s, 0.46 m/s, 0.43 m/s, 0.44 m/s, 0.44 m/s. Value of critical shear stress in bends 1, 2, 3, 4, and 5 respectively 199.89 N/m², 211.8 N/m², 184.9 N/m², 193.6 N/m² dan 193.6 N/m². The highest critical shear stress at the second bend. because in the second bend the critical shear velocity of the river bed is large. from these results, it can be concluded that the shear velocity is directly proportional to the shear stress.



5.     APPENDICES



Nomenclature





A

cross-section area

               m2

d

diameter sediment

               m

g

acceleration of gravity

m/s2

It

intensity of rainfall for rain t

mm/hour

n

coefficient of Manning

m-1/3/s

Q

discharge

m3/s

R24

24-hour rainfall

mm/hour

Re

Reynold's number

-

t

time

hour

u*

shear velocity

m/s

Greek letters





θc

coefficient Shield

-

tr

critical shear stress

KN/m3

rs

grain specific gravity of sediment

N/m2

r

grain specific gravity of water

N/m2



SOURCES OF FUNDING



This research received no specific grant from any funding agency in the public, commercial, or not-for-profit sectors.



CONFLICT OF INTEREST



The author have declared that no competing interests exist.



ACKNOWLEDGMENT



None.
