2)     In MW oven, one meal can be heated at a time. For students’ long queue and more time is needed to heat meal for say 100-200 students. Their lunch break is only 30-45 min. Some colleges even have even 5-10 Microwave ovens. Even then not always all the students can heat lunch during this time so some may have to take cold meal.

3)     During 20 years, visiting many schools and colleges, I have observed that not all the MW pots used for warming are suitable for Microwave oven. Melting of some plastic boxes can take place if they are not appropriate for MW.

4)     Some families do not prefer microwave ovens for possible health problem, like cancer. Its debatable issue, as its not confirmed explicitly.

5)     Although 99 percent of country is connected with electric grid however still about 200 schools and colleges do not have electricity, thus they cannot use Microwave ovens

Thus, another option could be the use of solar energy for heating the lunch.



2. USE OF SOLAR ENERGY FOR WARMING AND COOKING

Author made first time solar oven for personal use at home in Costa Rica in March 1979 for warming personal family lunch in Costa Rica, as shown in Figure 1, which was published in local newspaper Nandwani (1979). The reason was due to electric rationing imposed by National public electric utility company for 2 days a week from 7 am to 7 pm. It was because of reduction of water level in hydro dams due to sunny period.

Figure 1 Our first Solar Food warmer (Left) for the house in March 1979 and published in local newspaper (Right)



Although author has designed, studied, and published many solar ovens for cooking, like Conventional Oven Nandwani (1988), Hybrid solar oven Nandwani (1989), Solar Microwave Oven Currin et al. (1994), Multipurpose and partial heat storage solar oven Nandwani et al. (1997), Dual voltage solar oven Nandwani (2008). All these models can be seen in authors book Nandwani (1993-2003) and extensive article in Encyclopedia of Sustainability Nandwani (2012-2021), The conventional Solar Oven in brief consists of wooden/metal box, with metal plate painted black on top, glass wool as thermal insulation on four sides and below the metal plate. On the top of the box, there are two transparent glasses, separated by 2-3 cm to allow the solar radiation to enter but impedes the exit of heat radiation Nandwani (2021).

Also, there is one reflector, whose angle could be adjusted to receive additional solar radiation. Author also got patent on Solar Oven in Costa Rica in 1984. Meals can be cooked in 90-150 minutes depending on the climate, quantity of meal and types of cooking boxes, however for heating meal, it takes much less energy and thus less time. Cooked meals can be reheated in 30-90 minutes. In the case of educational centers for warming meals, the size of the of absorbing plate could be about 100cmX60 cm or 0.6 m² Nandwani (2014). This oven can accommodate about 40-50 lunch boxes (in two layers).  In order to minimize the risk for students, we recommend not to use reflector, especially in windy areas.

On a sunny day the maximum air temperature in the oven can reach up to 120-140 °C (without meal), more than sufficient to cook meal and about 90-110 ⁰C with meal inside. One can cook meal for about 6-9 months and can heat lunch for about 9-11 months in a year depending on the place/climate. In addition, I am cooking/warming meal at home for last 40 years and also promoting the use of Solar Ovens at educational institutes for last 15 years Nandwani (2021), through lectures and workshops. Some students in my university were using solar ovens to heat their lunch.

Being from developing country (India) and working in developing country (Costa Rica) and given lectures in many developing countries, I think it’s very necessary to use Solar Energy also for heating food.  At home most of the time the meal is cooked for 2-3 days and sometimes one has to only heat the cooked breakfast and lunch. Burning firewood stove or switching electric/gas range, its much simpler to use simple solar oven to warm. Three to Four meals can be heated simultaneously even on partial sunny period.

Although about 20 articles are published by author only on Solar Ovens since 1979, however in this papers new practical and unpublished results before, are informed which are studied during pandemic years 2020 and 2021.



3. USE OF POTS FOR SOLAR OVENS

Regarding the pots, normally in solar ovens we use metallic pots because of good thermal conductivity. However due to drastic climate change or some students forgot to keep the lunch in Solar oven, one has to use Microwave oven for warming meal. As the metallic pots cannot be put in microwave oven, thus we recommend thermal plastic pots (­20 to +120 ⁰C) which can be used in both solar ovens as well in Microwave ovens. Figure 2 show some plastic pots bought at different places/countries and at different times which can be used also in microwave ovens and satisfy other conditions like convenient size and weight etc. Pot G, bought in 2019 from Delhi/ India, is of stainless-steel inside plastic pot. Claimed by the manufacturer, it can be used also in microwave oven and rechecked by author.

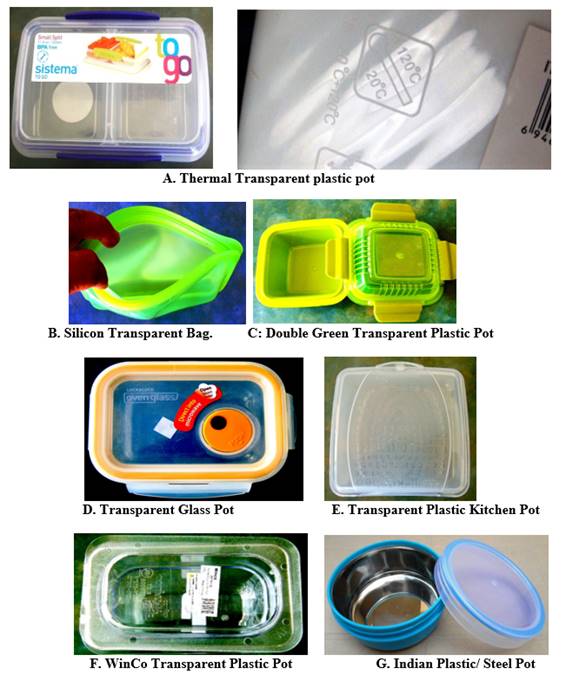

Figure 2 Different types of thermal Plastic pots studied for warming lunch in solar and microwave ovens



4. HEATING OF 14 LUNCH BOXES WITH SOLAR OVEN

Although we know the temperature attained in the domestic oven (3-4 cooking pots) at our house, but never measured temperature variation at school/college where the students heat about 40-50 lunch boxes simultaneously in one oven with sunny period as well cloudy period. Although students and Directors of colleges are satisfied with the performance of solar ovens.

As the real experiment cannot be done for heating many lunch boxes in Solar oven, a

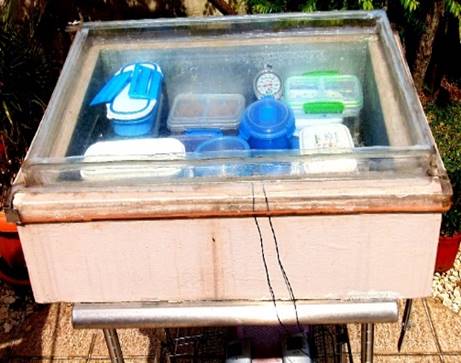

s is done at some colleges due to different reasons. I thought of heating 14 lunch boxes at personal house (Figure 3). The solar oven used has an absorbing plate of the size,52 cm .X 34 cm X 16 cm. (absorbing area of 0.17 m²) and without reflector. Although we could calculate this rise in temperature theoretically with different solar intensity, however experimental data may convince better to possible users and promoters. All the pots were of thermal plastic. Did experiment with natural and reduced (simulating clouds) solar intensity with some covers.

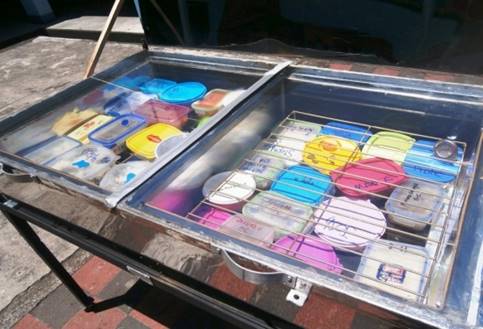

Figure 3 Heating of 14 lunch boxes with pinto to heat with solar energy



Fourteen 14 boxes (average size, 17 cm X 11 cm X 4 cm) were used for individual meal. We put 12 boxes with 250g of water and two boxes with 250g pinto (typical Costa Rican dish, rice, beans, spices etc.) each, in two layers. Total weight of pinto in 14 boxes is 3.5 kg. These two pots also had thermometer to measure pinto temperature.

Experiments were done on 10, 12, and 13 March 2021. Results are presented only for two days. In schools, some persons in charge, keep all the lunch boxes at the same time, 2-3 hrs. before lunch time.   In colleges and universities students keep their lunch box at different times, depending on their convenience. Thus, we have done experiments with two ways of keeping meals- keeping all the lunch boxes at the same time (like schools) and keeping half boxes first (lower layer) and then rest of the boxes, 60-90 minutes later at upper layer (as in colleges).

4A. March 10, 2021:  From 8:30 to 9:30 am no boxes were kept, oven was just getting (accumulating) solar energy. At 9:30 am, all the 14 lunch boxes including two pinto boxes were kept in two layers, in solar oven. The temperature of pinto in two pots, (one in top layer and other in bottom layer/line) and in solar oven and solar radiation were measured. Ambient temperature during this period was varying between 25- 31 ⁰C. From 9 to 12 md the oven was not moved as students attending the class would not do it. The results are shown in Figure 4A.  The oven temperature was between 80-90 ⁰C.

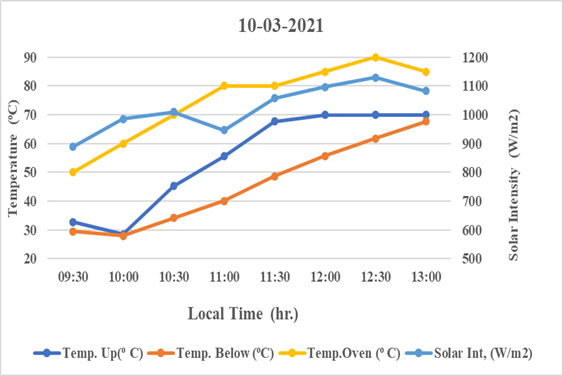

Figure 4A.  Variation of pinto temperature in upper and lower lunch box at different times with solar radiation, March 10, 2021

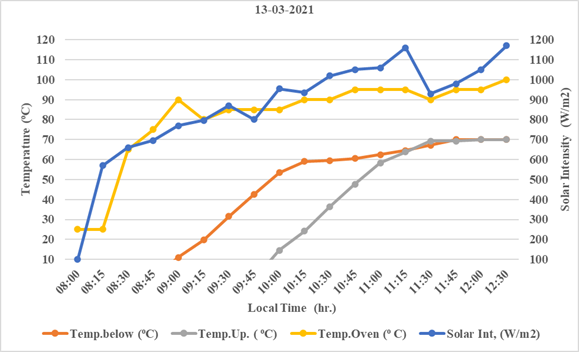

4B. March 13, 2021:  The day was sunny. During 8 to 9 am, no pots were kept, although oven was receiving/ accumulating solar radiation. At 9 am 6 water boxes (250g in each pot) and one pinto box were kept. At 10 am another 6 water pots and one pinto box were kept on top of these 7 boxes (as in colleges). One temperature sensor was put in each pinto box (one in each layer). The pinto temperature in upper and lower pots, oven air temperature and solar intensity are shown in Figure 4B.  Even for boxes kept after one-hour, pinto temperature reached to 55- 58 ⁰, more than sufficient to enjoy hot lunch.

Figure 4B.  Variation of pinto temperature in upper and lower lunch box at different times with solar radiation, March 13, 2021





5. REDUCING SOLAR INTENTITY, CREATING/SIMULATING CLOUDS

During more than hundred lectures given at educational centers and at other places, most of the people ask obvious question, what happens during cloudy period. Thus, we decided to make some measurements during different cloudy period. To make an artificial cloudy period, I thought to use some plastics/cloth of different thickness with different transmission/shade and did similar experiments as above. To have some quantitative results, we also measured the transmissivities of these materials.

Two plastics (Number 2 and number 3) and one cloth (number 4) of different thickness were bought and using solar radiation meter (Figure 5), their individual and combined (like 2 and 3, 2 and 4 etc.) transmissivity was measured, by measuring the solar radiation above and below the transparent materials. Although different measurements were made, but average data are shown in Table 1.

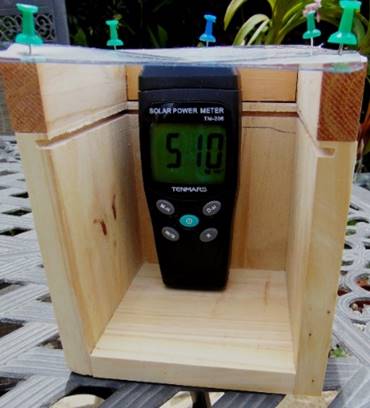

Figure 5 Box for Transmission measurements of different materials



Table 1 Transmissivity of 3 Transparent Materials
Material	Solar Intensity (W/m2)		Transmission Coefficient
	ABOVE	BELOW
2	1040	970	0.93
3	1110	980	0.88
4	965	650	0.67
2 and 3	1082	875	0.81
2 and 4	1130	675	0.6







Although we also measured the transmissivity of three materials together (2,3 and 4), it came out around 38%, (very low transmissivity or more clouds) thus we did not measure the thermal performance of solar oven for heating meal.



6. HEATING OF 14 LUNCH BOXES WITH SOME SHADE

Similar to previous experiments, the measurements are repeated with 14 pots (2 with pinto and 12 with water), each having 250g, but adding some plastics on top of the solar oven to create shade/cloud. Wooden frames were made for fixing different plastics. In all the experiments from 8 to 9 am no meal boxes were put in the solar oven; it was just to heat the oven. At 9 am, 14 lunch boxes were put in two layers. Meal/ water, oven temperature, solar radiation over solar oven with and without cover were measured (Figure 6).

Figure 6 Thermal performance of Solar Oven for warming 14 lunch boxes with clouds



The oven was set only once at 9 am, then it was not moved until 1 pm.  Experiments were done on April 2, 4, 6 and 8, 2021, we will give some results.



6A. Experiment with Cover No. 4 (Cloth), April 2, 2021

At 9 am oven temperature was already 70 ⁰C. At 9 am one lunch box with pinto and 6 with water were put in lower layer. One temperature sensor was put in pinto box (TpD). Frame with cloth no. 4 was used as cover.  At 10:30 am, put another 7 boxes, including one pinto box with temperature sensor (TpU).

Temperature in two pots, in oven, solar radiation was measured under the frame with cover, each 15 min. The ambient temperature was varying between 24-29 ⁰C. The results are shown in Figure 6A.

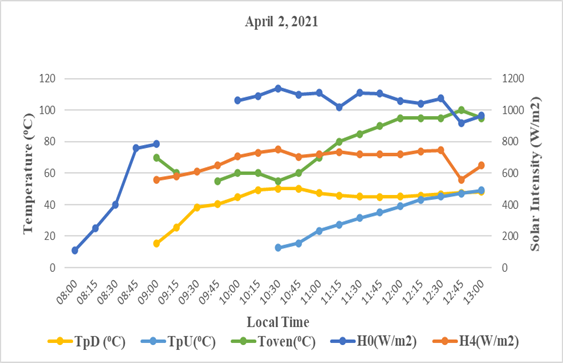

Figure 6A.   Variation of pinto temperature in upper and lower lunch box at different times with solar radiation and partial clouds, April 2, 2021



Even with solar intensity reduced by 30%. The maximum pinto temperature was 45 ⁰C and 39 ⁰C in lower and upper box at lunch time (12 md) sufficient hot to enjoy and 48-49 ⁰C, at 1 pm, The oven temperature was varying between 50-100 ⁰C. The day was sunny but was made cloudy. In summary,

Transmissivity of cover, 67%.

Oven Temperature before keeping lunch boxes (8 to 9 am) 70 ⁰C.

Temperature of Pinto in lower layer at 12 md (9-12 md)         45.2 ⁰C

Temperature of Pinto in upper layer at 12 md (10:30-12 md) 39.1 ⁰C

Oven temperature was varying between 55-100 ⁰C.



6B. Experiment with Cover No. 4 (Cloth), April 4, 2021

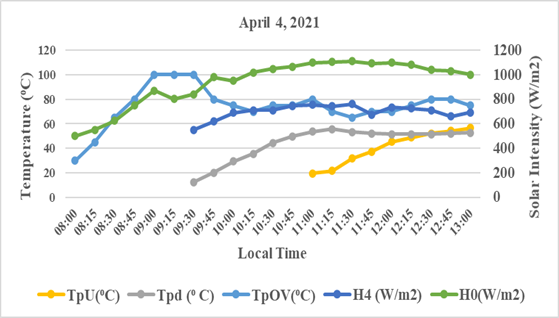

Experiment was repeated on April 4. Oven was heated from 8 to 9:30 am, without any meal. Oven temperature (without meal) reached to 100 ⁰C. At 9:30 am 7 boxes (one cooked pinto meal and 6 water) were put in solar oven; one temperature sensor was put in pinto box. The oven was covered with plastic/cloth 4 (transmissivity 67%).  At 11 am put another 7 boxes in the upper layer (simulating college students), with one temperature sensor in pinto box.

The measured pinto temperature, solar radiation and oven temperature variation are shown in Figure 6B.

In summary,

Temperature of pinto in lower box at 12 md (9:30-12 md) is 51.4 ⁰C

Temperature of Pinto in upper box at 12 md (11-12 md) is 45.4 ⁰C

Oven temperature was varying between 55-100 ⁰C. Although day was sunny, again we made it partially cloudy with an extra cover.

Figure 6B.   Variation of pinto temperature in upper and lower lunch box at different times with solar radiation with partial clouds, April 4, 2021



6C. Experiment with Cover No. 2 and 4. April 6, 2021

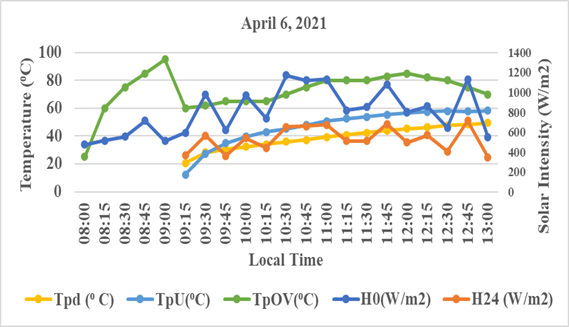

In order to reduce some more solar intensity (or increase clouds), we used two covers. Although the order is not important, we put plastic no 2 on top of cloth no 4. At 9 am oven temperature, without any meal reached to 95 ⁰C (from 25 ⁰C at 8 am). In this case all the 14 pots were kept in two layers, having one temperature sensor in pinto (lower layer, Tpd) and another sensor in pinto in upper layer (TpU).  It was sunny day, reduced intensity by 39% due to two sheets. The oven (TpOV) and Solar intensity above plastic (H0) and under two plastics (H24) are shown in Figure 6C.

Figure 6C.   Variation of pinto temperature in upper and lower lunch box at different times with solar radiation with partial clouds, April 6, 2021



Temperature of pinto in lower layer at 12 md (9-12 md)           45.2 ⁰C

Temperature of pinto in upper layer at 12 md (9-12 md)           56.7 ⁰C

Ambient temperature was varying between 28-32 ⁰C. Oven temperature was varying between 60-85 ⁰C.



7. COST OF SOLAR OVEN AND PERIOD OF AMORTIZATION

One metallic solar oven for about 50 lunch boxes. which can be kept in sun/rain, can cost about Colone’s 250,000 (US$350-400). Also based on long experience we know Solar Oven can be used for 11 months in a year for heating. Let us calculate period for recovering the initial cost, through use of solar energy. We will compare with electrical energy required to heat the same meal in Microwave oven, as it is done normally in educational institutes or many offices.

Assuming heating of each lunch box in a Microwave oven (power about 1 kW), takes 3 min.

Electric energy required to heat 50 lunch boxes for 11 months will be: 50 X 1 kW X (3 min/60) hr./day X 30 days/month X 11 months/year.                              = 825 kWh/ year

Electricity cost in Costa Rica is about $0.14/kWh. Money saved will be = $115/year. thus, the initial cost can be recovered in 3-4 years. Also, this metallic solar oven has a life of at least 10 years, although this author is using one at home for last 20 years.



8. ADVANTAGES/LIMITATIONS OF SOLAR OVENS

In addition, Solar Oven can be used even for heating water, pasteurizing water, drying some agricultural products like spices, herbs, for realizing some science experiments by students and baking cake for some party etc. Although it takes some more time but has many other advantages-economic, environmental Nandwani (1996), nutritional and convenience like heating many meals simultaneously etc.

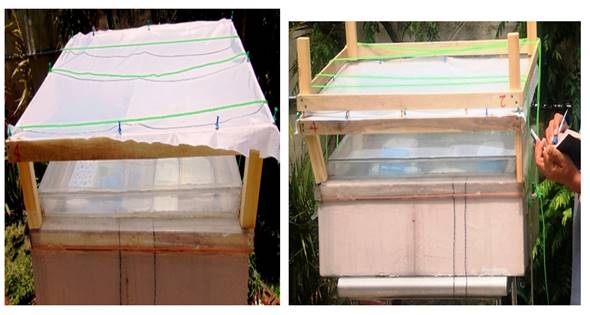

Figure 7 shows one solar oven, installed at one college for heating meal to save electric energy for college and convenience for students (both warming lunch and studying simultaneously) and also for cooling the earth etc.

Figure 7 Solar ovens at Colegio Maria Auxiliadora, San Jose,  lunch boxes in two layers



In spite of many advantages, including short period de amortization, only 30-40 educational institutes have installed about 80-90 solar ovens. Possible reasons could be lack of proper space, playground nearby, adverse effect due to wind especially in summer and more important is comparatively high initial cost of Solar Oven. One metallic Solar oven of the size, 100 cm X 60 cm, for heating 40-50 lunch boxes, in about 2-3 hrs. can cost around Colon US$350 – 400, about 3 – 4 times the cost of single Microwave oven.

First two limitations can be solved in some cases finding another place for keeping solar ovens and buying good insulating bag. Regarding third limitation, oven has some higher initial cost.  The reason of comparatively high cost is because as there are no full-time sellers, some sellers make on demand and very low numbers. Many persons specially in developing countries may not go for solar oven due to some higher initial investment even the saving is recovered in short period.

The other options for cost reduction for heating meal could be:

1)     Wooden or even Cardboard oven,

2)     Portable and personalized solar oven and

3)     Heating meal directly in pots with solar energy but without solar oven.

To reduce the cost of heating meal with solar energy but without expensive solar oven has been studied also recently and will be presented in another paper.



9. CONCLUSIONS

The study was done with different plastic pots, which could be suitable for both solar and microwave ovens. We did detailed study with solar energy and simulated cloudy period for heating about 4 kg of cooked meal kept in 14 lunch boxes, all with 250g of pinto and the results are very promising.

Due to pandemic situation, now a days the classes are virtual. Once this situation gets normal and classes are presential, planned in mid-February 2022, we can see the acceptance by students and public etc. We expect that this study for heating meal with solar energy can be used by more educational and other institutions.

In addition to saving conventional fuels, it will also help in cooling the planet. In conclusion one may say that most of the time simplest solution is the best solution.
