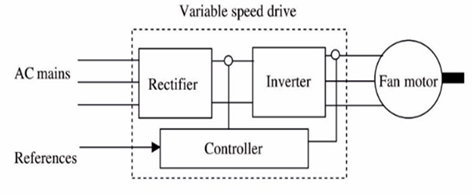

The aim of ventilation on demand (VOD) systems is to optimize fresh air supply only where it is required and when needed. Variable speed drives (VSDs) are the key components of VOD and are regularly used in the heating, cooling, ventilation, and air conditioning of buildings to change pump and fan speeds. Speed control is used in these applications to regulate water or airflow because velocity adjustment is an energy-efficient flow control technique (Teitel et al. (2008)). VSDs are highly efficient, easy to control, and require little maintenance. They have now become the preferred choice of drives in many applications. Speed control is the most energy-efficient flow control technique because it needs the least quantity of energy to fulfill the load. Technology advances make VSD applications more of a sector standard. Implementing VSDs in mine cooling systems has been reported to be economically feasible. It is possible to achieve complete annual power savings of 144,721 MWh or 32.2% (Plessis et al. (2013)). The purpose of this research is to evaluate the use of VSDs for energy savings in a model study of a ventilation system of an underground mine using the cut-and-fill method to extract ore. 2. MATERIALS AND METHODS 2.1. VSD Electric motors are typically intended to operate at constant speeds; that is, different motors are required to achieve different speeds. The engines are sized to provide the highest energy output needed in most applications. VSDs work by controlling the waveform of the current and voltage supplied to the motor (Tolvanen (2008)). They operate by regulating the present waveform and voltage delivered to the motor. VSDs are used in electromechanical drive systems to regulate AC engine velocity and torque by varying the input current and voltage frequencies (Dubey (2001)). In Figure 1, one of the many feasible circuits for regulating an induction engine’s velocity is schematically depicted (Ozdemir (2004)). A VSD is linked between the electric motor and the power supply system. The main parts of the system are a multiphase diode rectifier, a control and safety regulator, and an inverter.

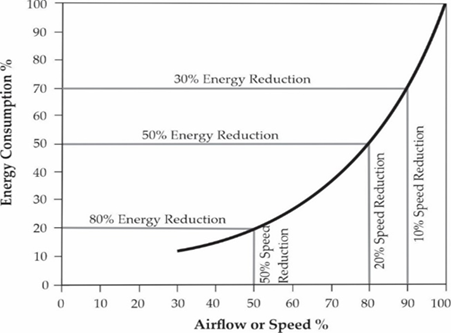

VSDs are already used in applications such as pumping and building ventilation. Many researchers report that VSDs are the most effective way to save energy when running a particular load (Kaya and Kilic (2004), Khalid (2014), Mecrow and Jack (2008). VSD systems decrease energy consumption, increase energy effectiveness, improve the power factor and process accuracy, and decrease the mechanical pressure on the fan and motor. In fan applications, energy consumption follows the laws of affinity. These regulations are used when changing variables to estimate a fan’s working efficiency. Equations 1–3 represent the widely used fan laws, showing the connection between the fundamental parameters of fans (Simpson and Marchi (2013)). (1) (2) (3) Where Q is the flow, N is the speed, P is the pressure, and HP is the power. The laws of affinity (also called cubic laws) state that the output or flow of a fan is directly proportional to its speed. The terms Q (flow) and N (speed) in the above expressions, under Equation 1, are interchangeable. So, Q can be substituted in place of N in Equation 3. (4) Therefore, the required power becomes proportional to the cube of the flow. The fan would operate at 50% of the speed to generate 50% of the flow. At this stage of operation, the fan would only involve 12.5% of the rated power (0.5 × 0.5 × 0.5 = 0.125 or 12.5%) (Lönnberg (2007)). In theory, a 50% decrease in flow results in an 87.5% decrease in the energy input. However, the exponent often ranges from two to three in real-world applications, which means that the savings are reduced despite the changes in the exponents. As shown in Figure 2, reducing the fan engine speed by 10% requires about 70% of the energy, whereas reducing the fan engine speed by 20% requires only 50% of the power. The installation of a VSD on the fan engine enables the fan to match this decreased ability automatically, slowing down as a reaction to decreased demand, and thus saving energy (Gonen (2018)).

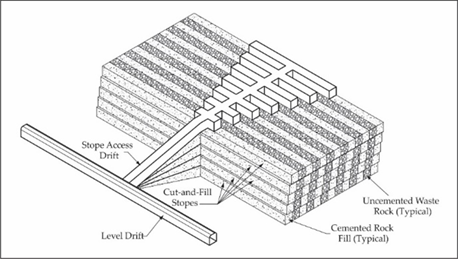

2.2. UNDERGROUND MINE MODEL Ventilation can be defined as the lifeblood of a mine in which the intake airways act as arteries by bringing oxygen to the mine’s working areas and act as veins by removing pollutants from the mining areas to be expelled into the atmosphere (McPherson (1993)). The primary objective of an underground ventilation system is to provide adequate amount and quality of fresh air to dilute contaminants to secure levels in all areas of the mine where the staff needs to work or travel. A ventilation shaft or audit is developed to supply fresh air to the mine. At this point, regulators and continuously installed ventilation fans control the direction of airflows. For distributing fresh air to working areas, auxiliary ventilation systems are used with temporarily mounted ventilation fans and spiral ducting (Tuck (2011)). The underground mine ventilation supplies fresh and adequate volume of air to dilute and remove dust and noxious gases and controls the temperature of the working areas. The primary sources of these harmful gases are the equipment running on diesel engines and explosive blasts. In this study, an underground mine extracting ore by the cut-and-fill method is evaluated in terms of the ventilation requirements and the adaptation of the VSDs to the auxiliary ventilation system. Cut-and-fill is the descriptive term applied to the mining methods that require the filling of excavated voids with waste material to progress the ore production. This fill is necessary to maintain support for the subsequent openings or to act as a working platform for further mining (Stephan (2011)). In cut-and-fill mining, the ore is extracted in several horizontal drifting slices. In overhand cut-and-fill mining (mining on top of the backfill), which is the most preferred variation, mining starts at the lower level and works upward. When a slice is mined out, the gap is filled with waste material (Figure 3). To reach the ore body, generally, a spiral ramp is driven, and several stopes can be extracted simultaneously to provide flexibility in the mine.

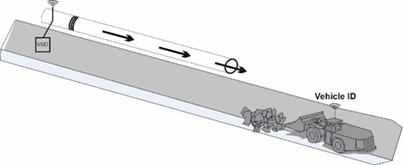

2.3. USING VSD WITH AUXILIARY VENTILATION FANS With their low capital cost and ease of use, mine fans are normally controlled with across-the-line starters. Ventilation fans are manually regulated in hard rock mining and operated at maximum capacity 24 h a day. Therefore, given that these fans operate at 100% rated speed, a large amount of current is drawn. Auxiliary ventilation is the most utilized way to supply fresh air to blind working areas (Tuck (2011)). As there are many auxiliary fans in an underground mine, energy can be saved by managing the power supplied to these fans. A decrease in energy consumption is possible by controlling the ventilation system to supply air only where it is necessary. Therefore, VOD can be achieved for each mining stope depending on the activity in the area. For this purpose, wireless or wired mine tracking systems can transmit data via communication systems to a real-time ventilation monitoring system. Tags and readers are used to locate and determine the position of workers and vehicles. Tags are installed in mobile equipment and all cap lamps. The system can detect the presence of particular tags in an area and make ventilation adjustments accordingly. When tags leave an area, ventilation can be automatically adjusted again (Figure 4).
Diesel equipment is widely used in fully mechanized cut-and-fill mining. In general, the ventilation specifications are determined by the total power of the diesel machines for the entire mine, individual parts, or working areas. There is a wide variation between countries when it comes to calculating the standard ventilation requirements of the mines that use diesel engines. The fundamental principle is that adequate ventilation should be available to dilute the exhaust gases and particulates below their limit values. For design purposes, 0.06 to 0.08 m3/s of airflow for each kilowatt of diesel power is accepted as a general rule. As seen in Table 1, ventilation regulations vary by country, but airflow of 0.06 m3/s per kW seems to be the best practice most of the time (Halim (2017)).

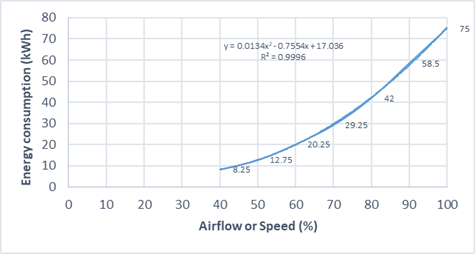

In cut-and-fill mining, the ore is extracted from many production stopes simultaneously, and every stope needs to be ventilated by a permanently installed auxiliary fan. The auxiliary ventilation fan selected for this study is a unit with a 100% flow rating of 27 m3/s and a motor shaft power requirement of 75 kW. Table 2 shows the possible energy savings from speed reduction through the use of VSDs on industrial motors (Saidur et al. (2010)). These data have been used to estimate the energy savings of the selected 75-kW auxiliary ventilation fan motor using a VSD (Figure 5).
Table 3 shows the diesel equipment used in a stope during the production cycle. The automated fan system responds to signals emitted from the RF tags, which are tracking devices installed on underground machinery and worn by all the underground employees. As miners and vehicles pass into various areas of mine, the system, only if needed, activates the fans by adjusting the fan speed on the basis of the carbon emissions expected from the specific vehicle type.
Table 4 shows the diesel engine power of vehicles entering a stope and the airflow requirement during each operation in the stope. As mentioned previously, the airflow requirement for a particular vehicle is determined by multiplying the rated diesel engine power of the vehicle by the regulatory airflow requirement. In this model study, it was assumed that 0.06 m3/s of air would be needed per kilowatt of diesel engine power, and the airflow requirement for all diesel-powered equipment has been calculated accordingly.
As shown in Table 4, while mucking the ore, a diesel loader entering a production stope requires 10.2 m3/s of air, but a rock support drill rig entering later in the cycle requires only 3.6 m3/s of air. It was assumed that after a blasting operation, 1 h would be needed to remove the dust and noxious gases from the stope and the auxiliary fan would run at full speed during the reentry time. The total airflow requirement was calculated for each production stage as a function of vehicles entering the stope. A production cycle consists of drilling, explosive charging, blasting the ore, mucking, cleaning, and rock support operations. In the model study, it was assumed that a production cycle would be completed in 12 h (Table 5). For each operating period, the total energy consumption of VSD-installed fan motors was calculated on the basis of the data obtained from Figure 5. After blasting the ore, it was assumed that the reentry time would be 1 h, and during this period, the fan motors would run at full speed to remove toxic and noxious gases from the environment. It was assumed that the fan would operate for 24 h per day and 340 days per year (8,160 h) without VSD. Without VSD control and at an energy cost of $0.10/kWh, the annual electricity cost of the fan (AECFAN) will be AECFAN = (75 kW) × (8,160 h) × ($0.10/kWh) = $61,200/year (5) It can be seen from Table 5 that by using a VSD-installed fan, the total energy consumption is 423.08 kW per 12-h mining cycle and the daily consumption is 846.16 kW. On a 340-days-per-year working base, the annual consumption will be 287,695 kW. With a VSD installation and an energy cost of $0.10/kWh, the annual electricity cost of the fan (AECVSD) will be AECVSD = (287,695 kW) × ($0.10/kWh) = $28,770/year (6)
Therefore, the annual energy cost saving (AECS) will be AECS = AECFAN − AECVSD (7) AECS = $61,200/year − $28,770/year = $32,430/year As can be seen from the results, by installing a VSD in an auxiliary ventilation system, as much as 53% of energy could be saved. 2.4. PAYBACK PERIOD OF THE SYSTEM The payback period of a VSD (PBPVSD) is a function of the incremental cost of the VSD (ICVSD) divided by the AECS in a particular year. The simple payback period can be expressed as follows: (8) The cost of VSD per kilowatt decreases with increase in the power rating. Low-voltage VSD total costs of about US$200/kW for a 75-kW unit and US$117/kW for a 275-kW unit were reported in South Africa during 2013 (Teitel et al. (2008)). The total cost includes the VSD costs and the costs associated with consultation, cabling, installation, and commissioning. Therefore, for a 75-kW auxiliary ventilation fan, the total implementation cost of a VSD is assumed to be $15,000. Calculations of energy savings showed that a simple payback could be achieved in 5 months 220 days. 2.5. ENVIRONMENTAL EFFECT The application of VOD technology benefits the environment through reductions in energy consumption, which helps to reduce the environmental impact of greenhouse gas emissions. The CO2 emission for electricity generated in Turkey was 0.48 kg/kWh (ABB, 2012). The estimated energy savings based on the proposed VOD configuration in the auxiliary ventilation system is 324,300 kW, equivalent to a reduction of 155.6 tons of CO2 per year. 3. RESULTS In this paper, the energy-saving possibilities when using a VSD in a mine auxiliary fan have been investigated. It was assumed that without any control unit, a 75-kW auxiliary ventilation fan runs continuously at full speed for 340 days per year. In any case, during a lot of that time, the motor does not need to work at maximum speed. By installing a VSD control, the motor will be allowed to operate on an event-based schedule. In a production cycle, the airflow requirement changes with different operations in the stope. The energy savings are due to the decreased power requirement for the operation of motors at reduced speeds. A 53% reduction in the energy consumption of the fan is possible by adjusting the fan speed with a VSD unit. This means that 324,300 kWh of electrical energy can be saved in a year, and CO2 emissions can be reduced by 155.6 tons per year. Furthermore, the VSD payback period can be achieved in just 5 months 220 days. 4. DISCUSSION The system recommended in this study involves event-based ventilation control; it can reduce operating costs because of the significant reductions in the power supplied to auxiliary fans. More efficient ventilation system can increase the production rate in mines because the ore can be simultaneously extracted from multiple production stopes. Considering the number of stopes that need to be ventilated by a permanently installed auxiliary fan, it is possible to save a significant amount of energy for the entire mine. These savings can be increased further when the maintenance issues because of lower fan speeds are reduced. The rise in VSD popularity has led to significant cost reductions in recent years. As the cost of electric power continues to increase, VSDs are becoming even more popular. Payback on a VSD is usually less than 2 years and could be as little as 3 months. The financial viability of installing a VSD depends on the cost of electricity, fan size, length of running time, and desired reduction in the airflow rate. Optimized mine ventilation systems are expected to provide total energy savings and achieve safety, energy efficiency, and a smaller environmental footprint in mines. REFERENCES Dubey, G.K. (2001) Fundamentals of Electrical Drives, 2nd ed. Alpha Science International Ltd. Pangbourne, United Kingdom. Pp. 679. E.I.O. (2019) U.S. Energy Information Administration, International Energy Outlook. Available Online: Retrieved from https://www.eia.gov/outlooks/ieo/pdf/ieo2019.pdf (last accessed on 13.07.2020). Gonen. (2018) Implementation of Variable Frequency Drive on Underground Main Fans for Energy Savings-Case Study. International Journal of Modern Research in Engineering and Technology Volume 3 Issue 1, p 31-36. Halim, A. (2017) Ventilation Requirements for Diesel Equipment in Underground Mines - Are We Using The Correct Values. Proceedings of the 16th North American Mine Ventilation Symposium. Colorado School of Mines. Colorado, USA. I.E.A. (2019) Global Energy & CO2 Status Report. Available Online: Retrieved from https://www.iea.org/reports/global-energy-co2-status-report-2019/emissions (last accessed on 13.07.2020). Kaya, D. & Kilic, F. (2004) Energy Conservation Opportunity İn VSD System-A Case Study. Proceedings of the 27th World Energy Engineering Congress. The Association of Energy Engineers. Atlanta, USA. Khalid, N. (2014) Efficient energy management: Is variable frequency drives the solution. Procedia Social and Behavioral Sciences, 145: 371-376. Retrieved from https://doi.org/10.1016/j.sbspro.2014.06.046 Lönnberg, M. (2007) Variable speed drives for energy savings in hospitals. World Pumps, 494: 20-24. Retrieved from https://doi.org/10.1016/S0262-1762(07)70395-4 Malli, T. & Yetkin, M.E. (2019) An optimization approach for panel dimension design in underground coal mines. Kuwait Journal of Science, 46 (1): 90-98. McPherson, M.J. (1993) Subsurface Ventilation Engineering, 2nd ed. Chapman & Hall. London, United Kingdom. Pp. 520. Retrieved from https://doi.org/10.1007/978-94-011-1550-6_4 Mecrow, B.C. & Jack, A.G. (2008) Efficiency trends in electric machines and drives. Energy Policy, 36(12): 4336-4341. Retrieved from https://doi.org/10.1016/j.enpol.2008.09.042 Ozdemir, E. (2004) Energy conservation opportunities with a variable speed controller in a boiler house. Applied Thermal Engineering, 24(7): 981-993. Retrieved from https://doi.org/10.1016/j.applthermaleng.2003.11.009 Plessis, G.E., Liebenberg, L. & Mathews E.H. (2013) The use of variable speed drives for cost-effective energy savings in South African mine cooling systems. Applied Energy, 111: 16-27. Retrieved from https://doi.org/10.1016/j.apenergy.2013.04.061 Saidur, R., Rahim, N.A. & Hasanuzzaman, M. (2010) A review on compressed-air energy use and energy savings. Renewable and Sustainable Energy Reviews, 14(4): 1135-1153. Retrieved from https://doi.org/10.1016/j.rser.2009.11.013 Simpson, A.R. & Marchi A. (2013) Evaluating the approximation of the affinity laws and improving the efficiency estimate for variable speed pumps. Journal of Hydraulic Engineering, 139(12): 1314-1317. Retrieved from https://doi.org/10.1061/(ASCE)HY.1943-7900.0000776 Stephan, G. (2011) Cut-and-fill mining. In: Darling, P. (Ed.). SME Mining Engineering Handbook, Pp. 1365-1373. Society for Mining Metallurgy and Exploration Inc., Colorado, USA. Teitel, M., Levi, A., Zhao, Y., Barak, M., Barlev, E. & Shmuel, D. (2008) Energy saving in agricultural buildings through fan motor control by variable frequency drives. Energy and Buildings, 40(6): 953-960. Retrieved from https://doi.org/10.1016/j.enbuild.2007.07.010 Tolvanen, J. (2008) Saving energy with variable speed drives. World Pumps, 501: 32-33. Retrieved from https://doi.org/10.1016/S0262-1762(08)70164-0 Tuck, M.A. (2011) Mine ventilation. In: Darling, P. (Ed.). SME Mining Engineering Handbook, Pp. 1577-1594. Society for Mining Metallurgy and Exploration Inc., Colorado, USA. Wallace, K., Prosser, B. & Stinnette, J.D. (2015) The practice of mine ventilation engineering. International Journal of Mining Science and Technology, 25: 165-169. Retrieved from https://doi.org/10.1016/j.ijmst.2015.02.001
